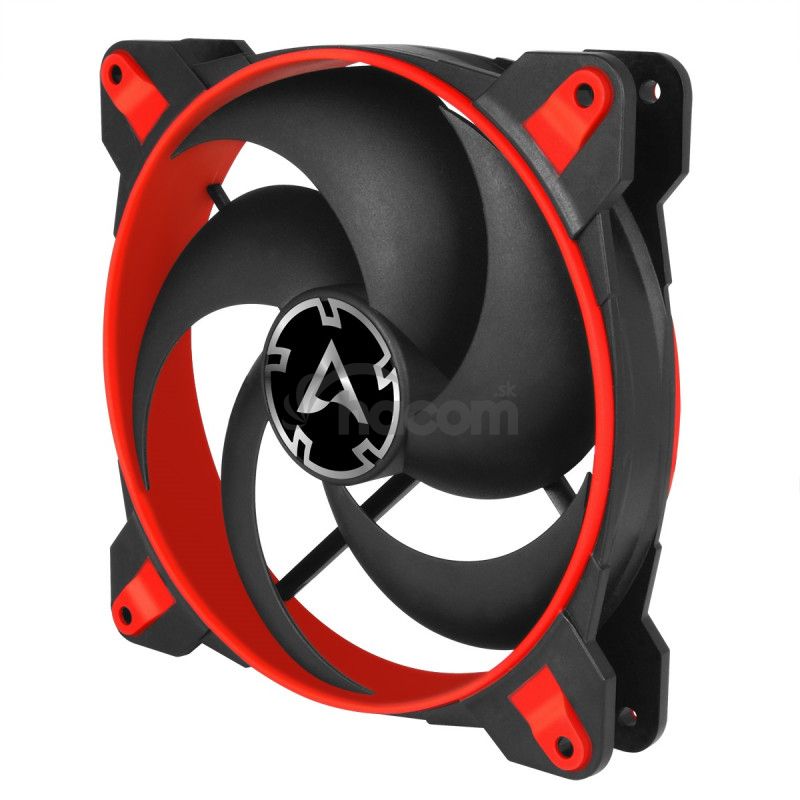

ARCTIC BioniX P140 - Red ACFAN00127A

ARCTIC BioniX P140 - Red ACFAN00127A

Nový BioniX P140 je ventilátor optimalizovaný pre statický tlak o rozmere 140x140mm s 200 - 1 950 otáčkami za minútu (riadenými PWM) a 0 dB fan módom. Vzduchový transfer 77.6 CFM / 131.92 m3 / h (@ 1.950 RPM), Hlučnosť 0.45 Sone (@ 1.950 RPM) a statický tlak 2.85 mm H2O (@ 1950 RPM).

Optimised for Static Pressure
During the development of the new BioniX P140, special Emphasis was placed on a focused Airstream and thus a high static pressure. The fan Guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.

More Efficient Technology
The motor is powered by a Neodým-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P140 to run múch more efficiently than its predecessors. This saves energy and Lowers the coil temperature without comprimising the performance.

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5% of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber Spacers due to the steady and smooth torque of the new motor.

Extended Life Span
A 10 ° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.

200 to 1950 RPM regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

0 dB Mode
The BioniX P140 is able to switch into silent passive mode when the PWM signal is below 5% due to its new motor. This allows working at your PC in complete silence without any unwanted noise.

High Quality Bearing
Thanks to an alloy / lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

performance
Fan: 140 mm, 200 - 1 950 RPM (Controlled by PWM), 0 dB fan mode below 5% PWM
Air Flow: 77.6 CFM / 131.92 m3 / h (@ 1.950 RPM)
Noise Level: 0.45 Sone (@ 1.950 RPM)
Static Pressure: 2.85 mm H2O (@ 1950 RPM)

Electrical Characteristics
Typical Voltage: 12 V DC
Cable Length: 400 mm
Sub PST Cable Length: 50 mm

Connection
Motherboard: + 12V DC
PWM control signal
4-pin connector + 4-pin socket
