ARCTIC F14 PWM PST (black) ACFAN00219A

ARCTIC F14 PWM PST (black) ACFAN00219A

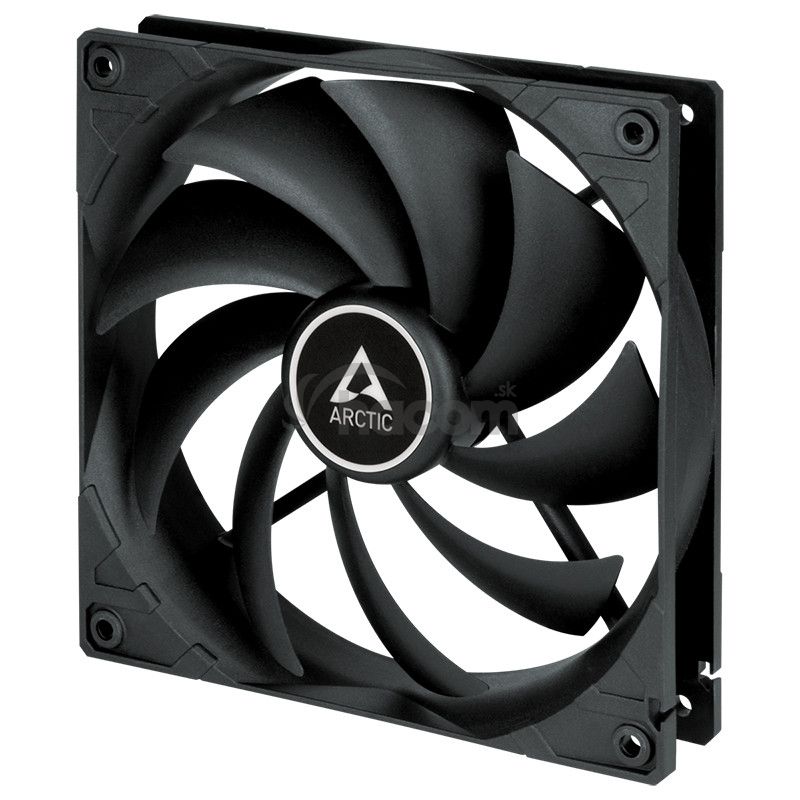

F14 PWM PST - 140 mm PWM PST Case Fan

LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

PERFECT CASE FAN REGULATION WITH PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This Guarantees the required cooling and minimizes the noise level.

FAN CONTROLLER MADE IN GERMANY
The ARCTIC F14 PWM PST fan is well known for high airflow at a comfortable noise level. The real improvement is the motor and controller. Our German engineers made this fan work at lower speed when performance is not needed. Often Motherboards do not provide PWM signals below 40% and thus make PCs Unnecessary loud - not so with the F14 PWM PST.

PWM SHARING TECHNOLOGY (PST) Lowers NOISE
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they do not work together? The PST assures that all of your fans listen to one control signal. Eg you share the CPU Cooler 's PWM signal and Assure that your case fans stand down at low load and spin up whenever necessary.

INNOVATIVE DESIGN enables QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the Desired airflow and pressure.

TWO WAY INSTALLATION
- Blow warm air out of the case
- Draw cool air into your case

TECHNICAL SPECIFICATIONS

general dáta
performance
Fan Speed: 200 - 1350 rpm
Airflow: 74 CFM / 126 m3 / h
Static Pressure: 1,3 (mm / H2O)
Noise Level: 0.5 Sone

Fan
Fan Frame: Standard
Controll Typ: PST
Connector: 4-Pin Connector + 4 Pin Socket
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6
Current: 0.11 A
Cable Length: 400 mm

Size & Weight
Lenght: 140 mm
Width: 140 mm
Height: 27 mm
Weight: 181 g

Packaging
Width: 143 mm
Height: 143 mm
Length: 29 mm
Weight: 0.22 kg
