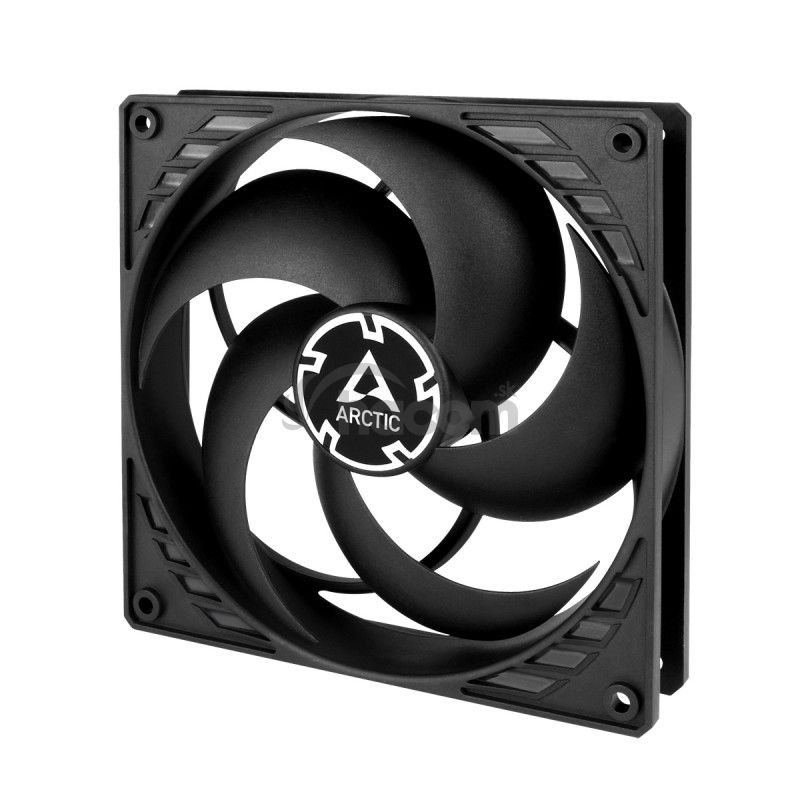

ARCTIC P14 ACFAN00123A

ARCTIC P14 ACFAN00123A

Nová séria ventilátorov P optimalizovaná na statický tlak. Tento ventilátor ARCTIC P14 je 140x140x25mm s 1700 RPM a vzduchovým transferom 72.8 CFM (123.76 m3 / h) a hlučnosťou 0,3 Sone.

Optimised for Static Pressure
During the development of the new P14, special Emphasis was placed on a focused Airstream and thus a high static pressure. The fan Guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.

High Quality Bearing
Thanks to an alloy / lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

performance
Fan: 140 mm, 1 700 RPM (@ 12 V DC)
Air Flow: 72.8 CFM (123.76 m3 / h)
Noise Level: 0.3 Sone (@ 1 700 RPM)
Static Pressure: 2.4 mm H2O

Electrical Characteristics
Typical Voltage: + 12 V DC
Start-up Voltage: 2.1 V
Cable Length: 400 mm

voltage Current
12 V DC (Norminal) 0.15 A
7 V DC 0.08 A
5V DC 0.05 A

Connection Motherboard: + 12 V DC 3-pin Connector
