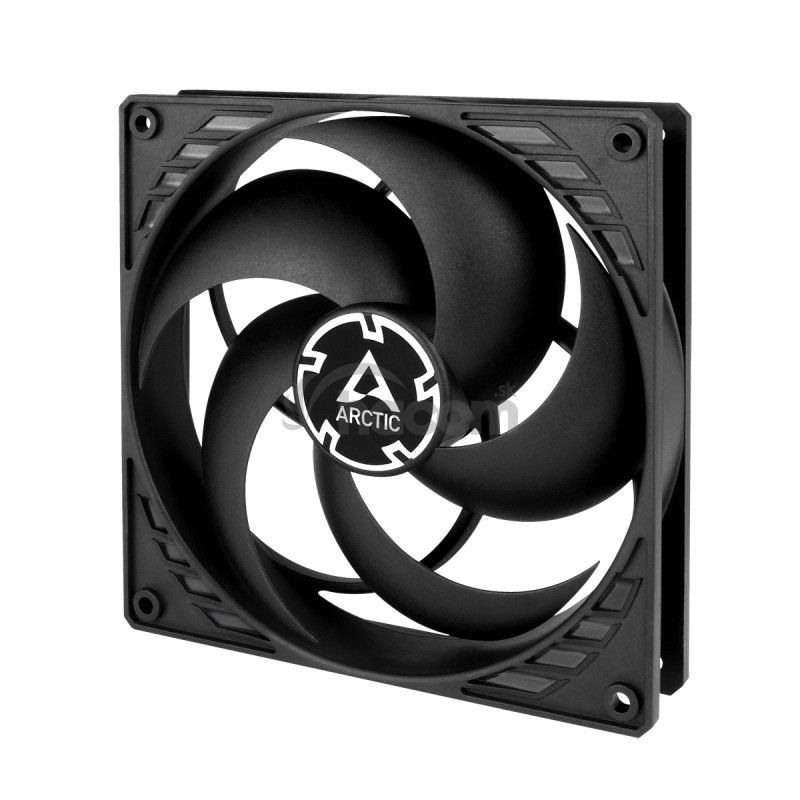

ARCTIC P14 PWM PST ACFAN00125A

ARCTIC P14 PWM PST ACFAN00125A

Skvelý vetráčik ARCTIC optimalizovaný pre statický tlak o rozmere 140 mm x 140mm s 200 - 1.700 RPM (riadenými PWM), prietok vzduchu: 72.8 CFM / 123.76 m3 / h (@ 1.700 RPM), Hlučnosť 0.3 Sone (@ 1.700 RPM), statický tlak : 2.4 mm H2O (@ 1.700 RPM)


Optimised for Static Pressure
During the development of the new P14 PWM pst, special Emphasis was placed on a focused Airstream and thus a high static pressure. The fan Guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.

More Efficient Technology
The motor is powered by a Neodým-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run múch more efficiently than its predecessors. This saves energy and Lowers the coil temperature without comprimising the performance.

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5% of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber Spacers due to the steady and smooth torque of the new motor.

Extended Life Span
A 10 ° C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.

200 to 1700 RPM
regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

High Quality Bearing
Thanks to an alloy / lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

performance
Fan: 140 mm, 200 - 1.700 RPM (Controlled by PWM)
Air Flow: 72.8 CFM / 123.76 m3 / h (@ 1.700 RPM)
Noise Level: 0.3 Sone (@ 1.700 RPM)
Static Pressure: 2.4 mm H2O (@ 1.700 RPM)

Electrical Characteristics
Typical Voltage: + 12 V DC
Start-up Voltage: 3.9 V DC
Cable Length: 400 mm
Sub PST Cable Length: 50 mm

Voltage Current 12 V DC (Norminal) 0.12 A

Connection

Motherboard: + 12 V DC
PWM control signal
4-pin connector + 4-pin socket
