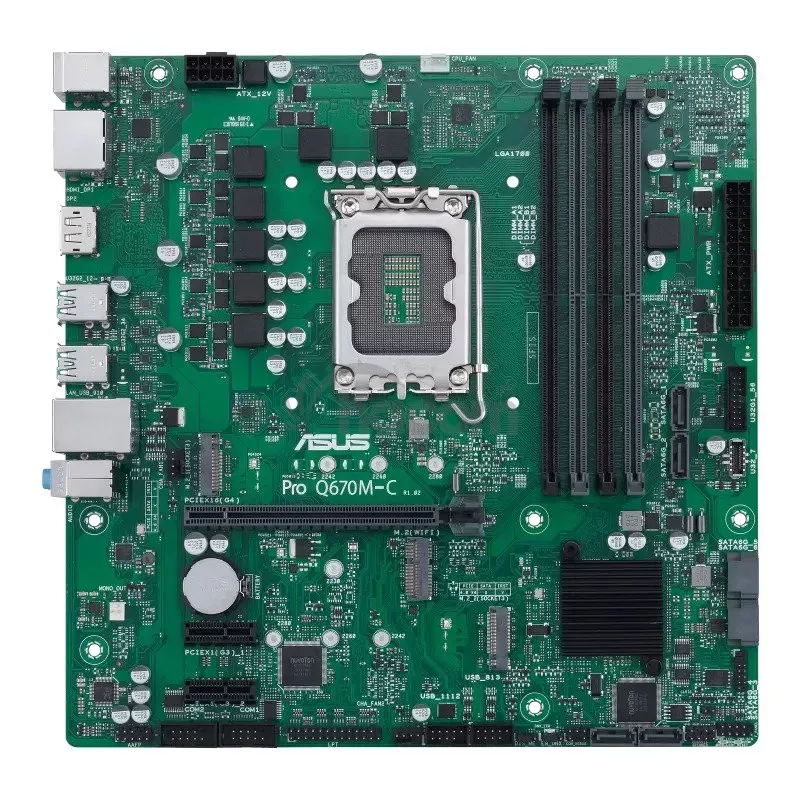

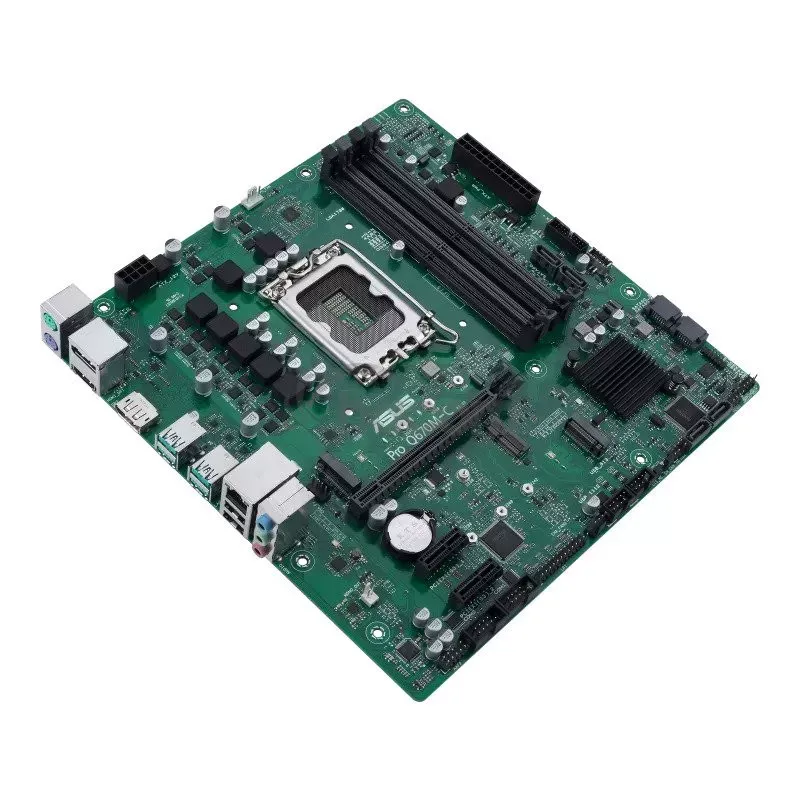

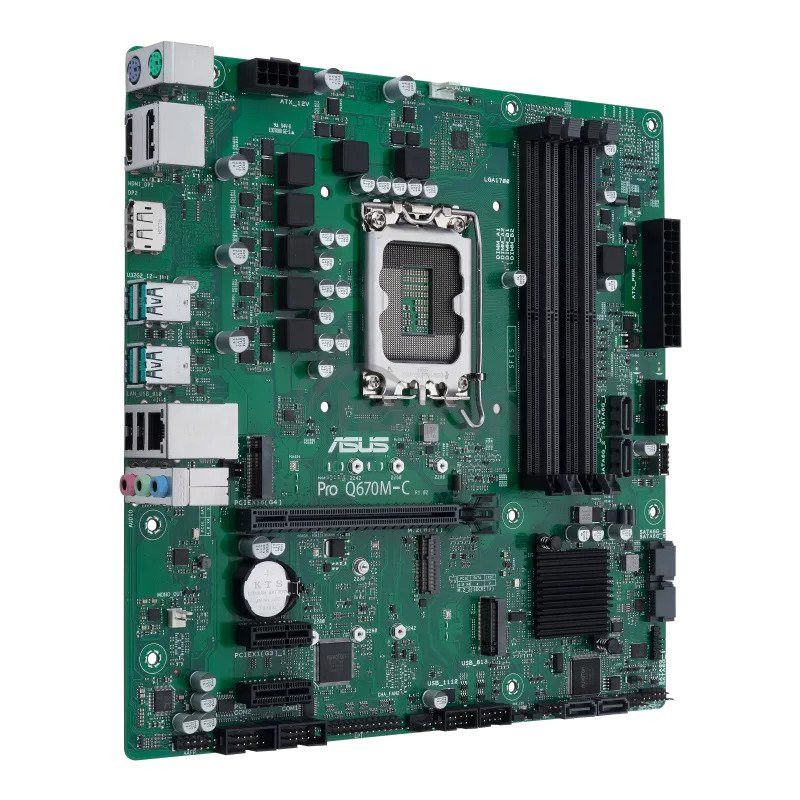

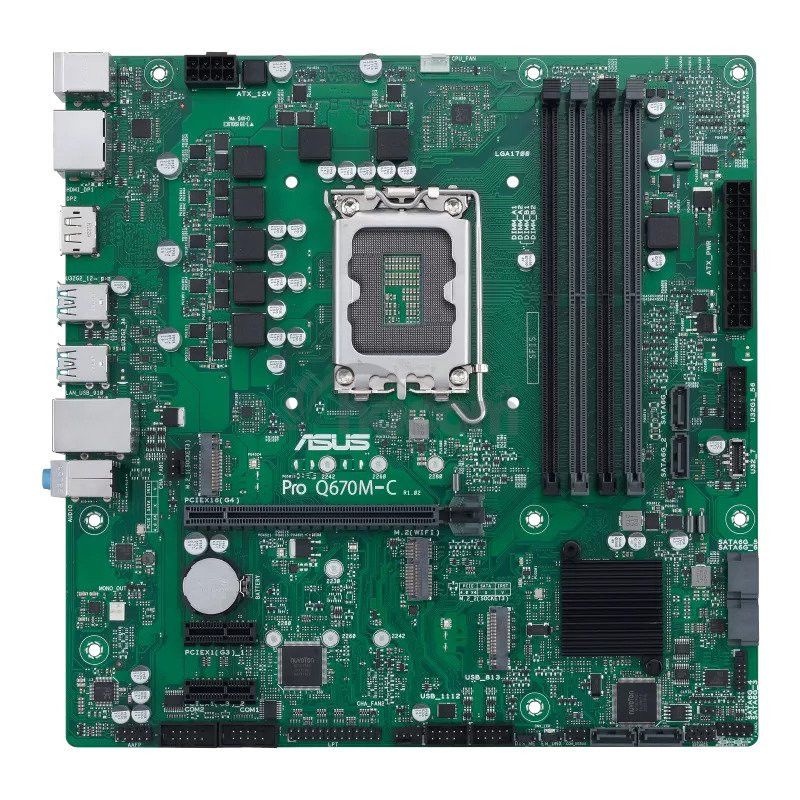

ASUS PRE Q670M-C-CSM/LGA 1700/mATX 90MB19E0-M0EAYC

ASUS PRE Q670M-C-CSM/LGA 1700/mATX 90MB19E0-M0EAYC

Chipset: Intel Q670 Chipset

Rozmerový formát: mATX Form Factor (24.4 cm x 24.4 cm)
Podpora pre procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Pätica procesora: LGA 1700

Pozícia na pamäti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pre pamäte: DDR5 4800 MHz
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: XMP

Grafická karta: (na základe procesora)
*2 x DisplayPort 1.4
*1 x HDMI port 2.1

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: 1 x Intel I219LM 1Gb Ethernet

Rozširujúce sloty:
*1 x PCIe 4.0 x16 slot
*2 x PCIe 3.0 x1 slots

RAID radič:
*NVMe RAID 0/1/5
*SATA RAID 0/1/5/10.

SATA: 6 x SATA 6Gb/s ports

M.2: 2 x M.2 slots (Key M)

USB:
* Interné:
*1 x USB 3.2 Gen 1 Front Panel konektor (suppports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
* Externé :
*4 x USB 3.2 Gen 2 ports (4 x Type-A)
*2x USB 2.0 ports (2 x Type-A)

Interné porty:
* Fan and cooling related
*1 x 4-pin CPU Fan header
*2 x 4-pin Chassis Fan headers
* Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
* Storage related
*2 x M.2 slots (Key M)
*6 x SATA 6Gb/s ports
* USB
*1 x USB 3.2 Gen 1 Front Panel konektor (suppports USB Type-C®)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
* Miscellaneous
*1 x Clear CMOS header
*1 x Chassis Intrude header
*2 x COM Port headers
*1 x Front Panel Audio header (AAFP)
*1 x COM debug header
*1 x DIS ME jumper
*1 x LPT header
*1 x Mono-out header(with Amp IC)
*1 x M.2 slot (Key E)
*1 x Speaker header
*1 x 10-1 System Panel header

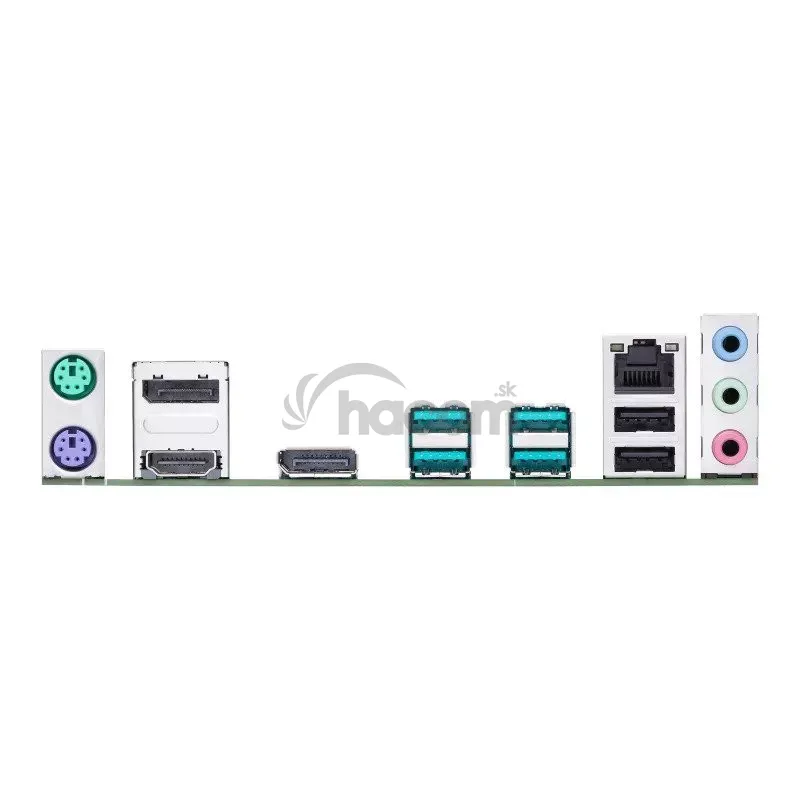

Externé porty:
*4 x USB 3.2 Gen 2 ports (4 x Type-A)
*2x USB 2.0 ports (2 x Type-A)
*2 x DisplayPort
*1 x HDMI port
*3 x Audio jacks
*1 x Intel 1Gb Ethernet
*1 x PS/2 klávesnica (purple) port
*1 x PS/2 mouse (green) port

BIOS: 256 Mb Flash ROM
