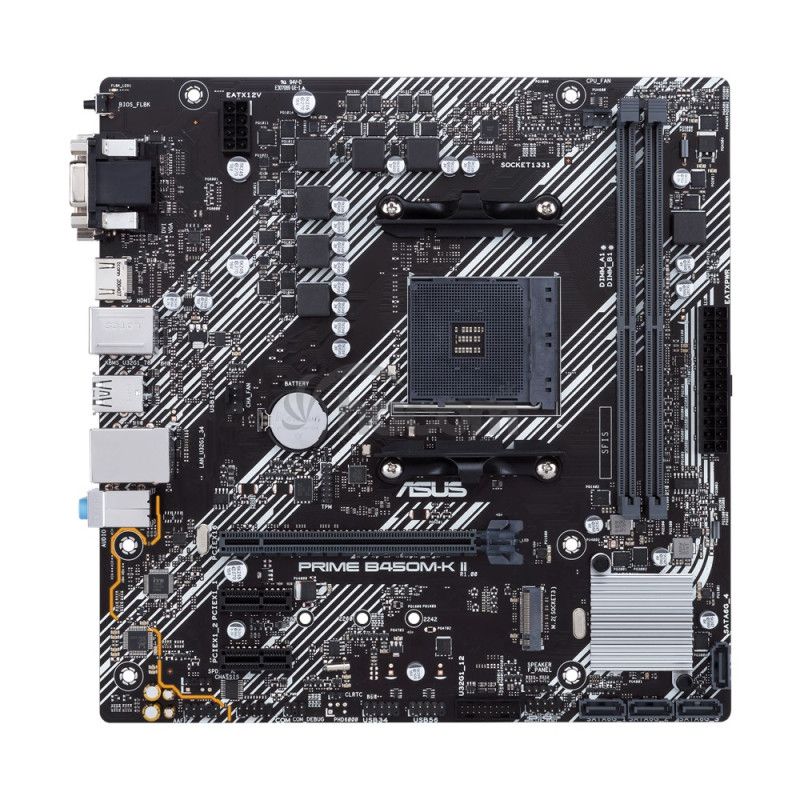

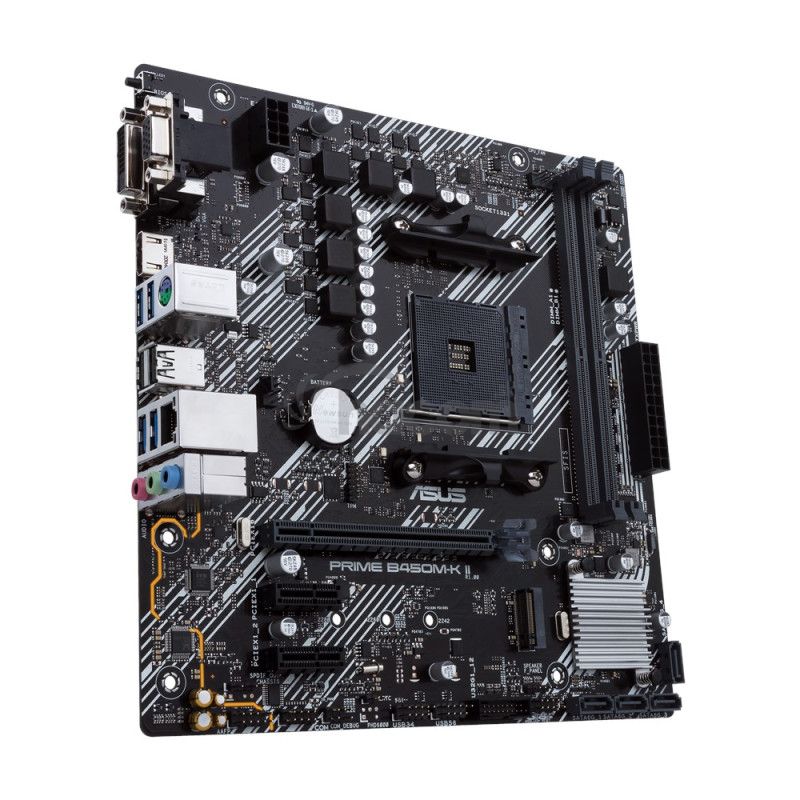

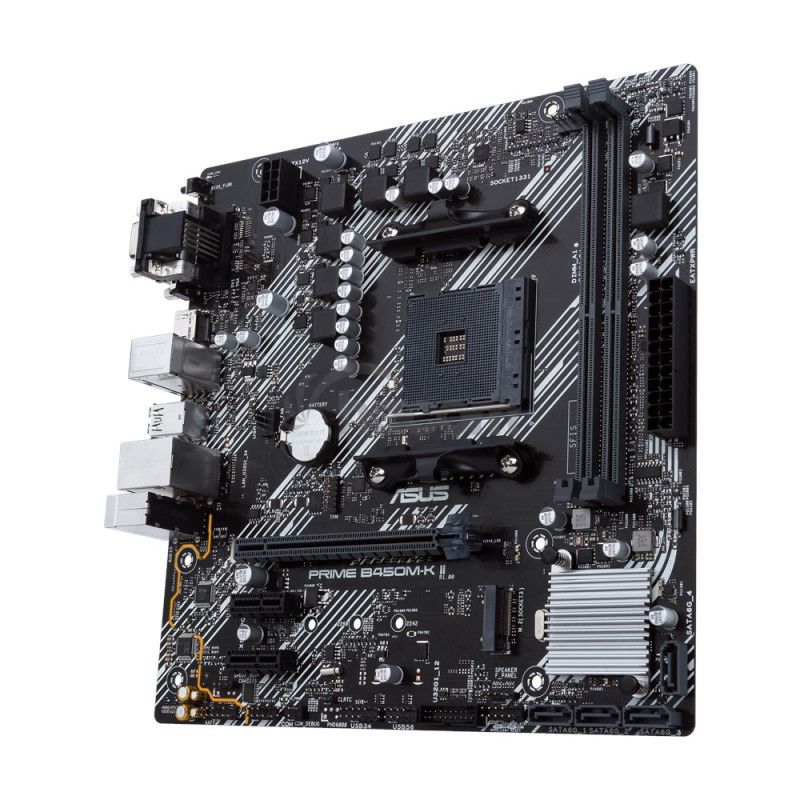

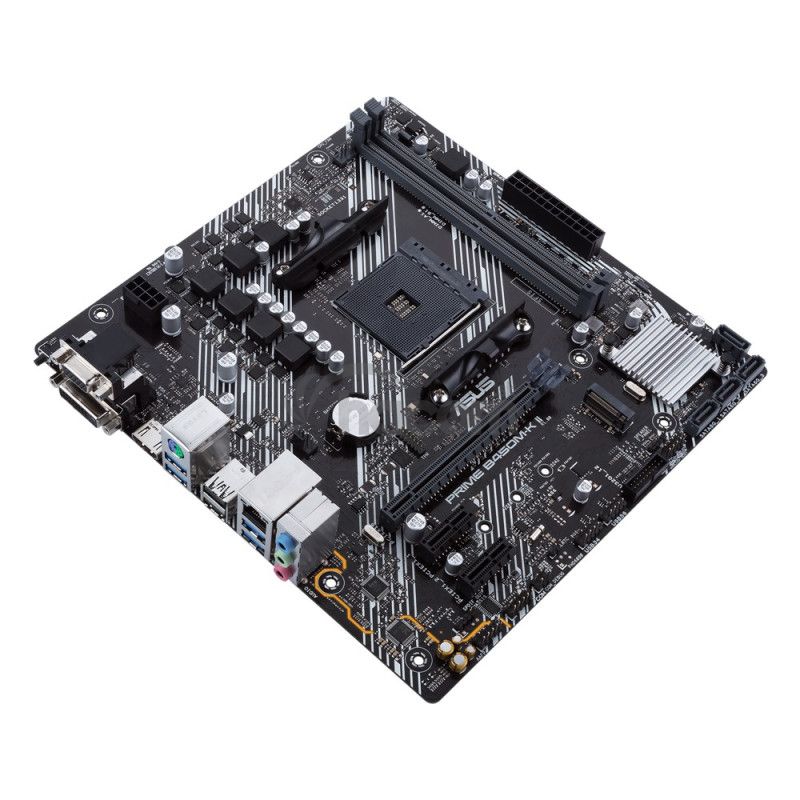

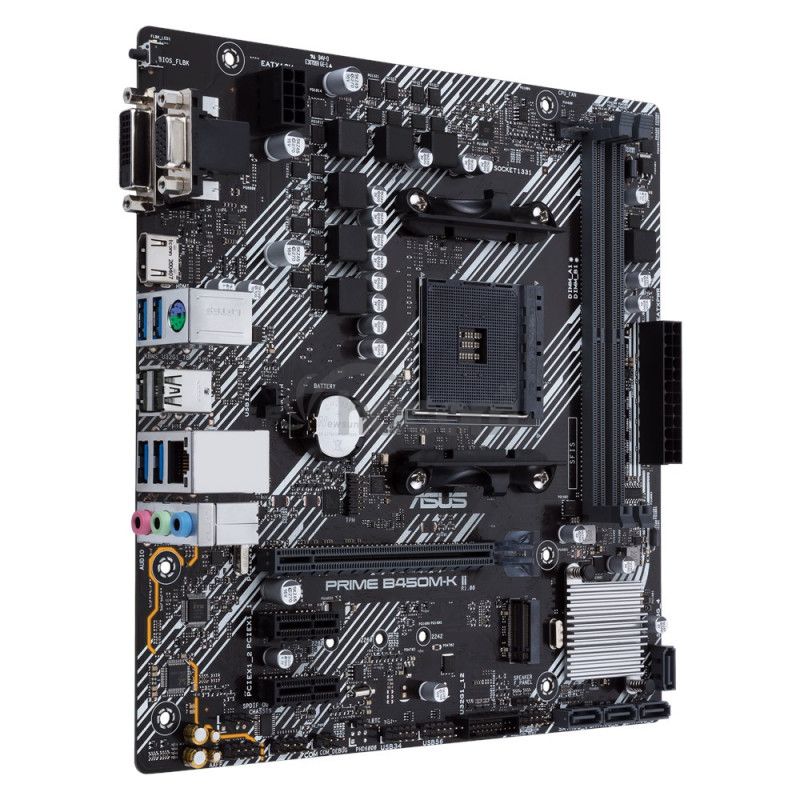

ASUS PRIME B450-K II 90MB1600-M0EAY0

ASUS PRIME B450-K II 90MB1600-M0EAY0

Chipset: AMD B450

Rozmerový formát: mATX Form Factor (226 mm x 221 mm)
Podpora pre procesory: 3rd / 2nd / 1st Gen AMD Ryzen ™ / 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics / Athlon ™ with Radeon ™ Vega Graphics Processors
Pätica procesora: AM4

Pozícia na pamäti: 2x DDR4 SDRAM DIMM
Podpora pre pamäte: 4400 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3300 (OC) / 3200 (OC) / 3000 (OC) / 2933 (OC) / 2800 (OC) / 2666/2400/2133 MHz Un-buffered Memory
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU

Grafická karta:
* Integrated Graphics Processor (na základe procesorov 2. a 1. generácie AMD s Radeon Grpahics / Athlon)

Zvuková karta:
* Realtek 7.1-Channel High Definition Audio CODEC

Sieťová karta:
* Realtek® RTL8111H

Rozširujúce sloty:
* 3rd / 2nd / 1st Gen AMD Ryzen ™ Processors
* 1x PCIe 3.0 x16 (x16 mode)
* 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors
* 1x PCIe 3.0 x16 (x8 mode)
* AMD Athlon ™ with Radeon ™ Vega Graphics Processors
* 1x PCIe 3.0 x16 (x4 mode)
* AMD B450 chipset
* 2x PCIe 2.0 x1

RAID radič: 0, 1, 10

SATA:
* 4x SATA 6Gb / s ports

M.2:
* 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB:
* Zadné USB porty (celkom 6)
* 4x USB 3.2 Gen 1 port (s) (4 x Type-A)
* 2x USB 2.0 port (s) (2 x Type-A)
* Predné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 port (s)
* 4x USB 2.0 port (s)

Interné porty:
* 1x CPU Fan connector (s) (1 x 4-PIN)
* 1x Chassis Fan connector (s) (1 x 4-PIN)
* 1x USB 3.2 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s) (19-pin)
* 2x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
* 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
* 1x SPI TPM header
* 1x COM port (s) connector (s)
* 4x SATA 6Gb / s connector (s)
* 1x S / PDIF out header (s)
* 1x 24-pin EATX Power connector (s)
* 1x 8-pin ATX 12V Power connector (s)
* 1x Front panel audio connector (s) (AAFP)
* 1x System panel (s)
* 1x Clear CMOS jumper (s)
* 1x COM port header
* 1x Speaker connector

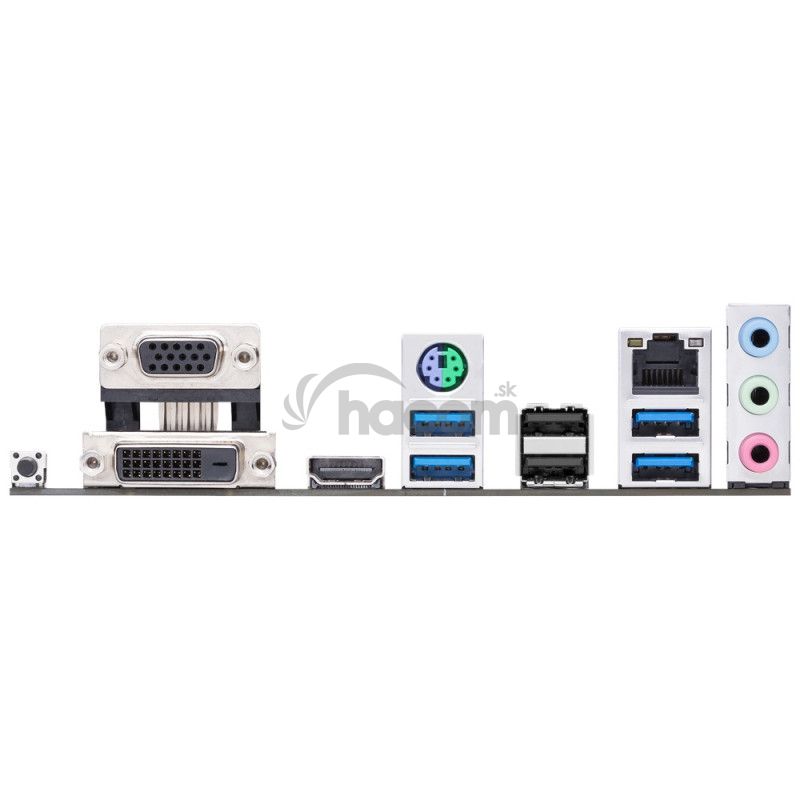

Externé porty:
* 1x PS / 2 keyboard / mouse combo port (s)
* 1x DVI-D
* 1x D-Sub
* 1x HDMI
* 1x LAN (RJ45) port (s)
* 4x USB 3.2 Gen 1 (blue) Type-A
* 2x USB 2.0
* 3x Audio jack (s)
* 1x BIOS FlashBack ™ Button (s)

Obsah balenia:
* User 'manual
* I / O Shield
* 2x SATA 6Gb / s cable (s)
* 1x M.2 Anchor
* 1x Supporting DVD

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://www.asus.com/Motherboards/PRIME-B450M-K-II
