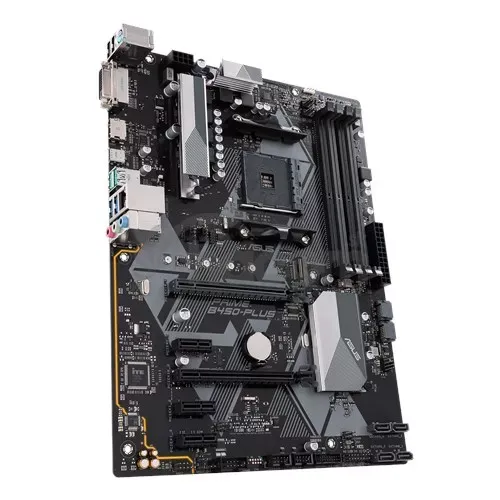

ASUS PRIME B450-PLUS 90MB0YN0-M0EAY0

ASUS PRIME B450-PLUS 90MB0YN0-M0EAY0

Technické špecifikácie:
Formát: ATX (30.5 cm x 23.4 cm)
CPU: AMD AM4 Socket AMD Ryzen ™ 2nd Generation / Ryzen ™ with Radeon ™ Vega Graphics / Ryzen ™ 1st Generation Processors Supports CPU up to 8 Cores
Čipová sada: AMD B450
Operačná pamäť: 4 x DIMM, Max. 64GB, DDR4 SDRAM 3200 (OC) / 3000 (OC) / 2800 (OC) / 2666/2400/2133 MHz
Lan: Realtek® RTL8111H, ASUS LAN Guard
Zvuk: Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
Grafická karta: V závislosti na CPU

Úložný priestor:
AMD Ryzen ™ 2nd Generation / Ryzen ™ with Radeon ™ Vega Graphics / Ryzen ™ 1st Generation Processors:
-1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
-2 x SATA 6Gb / s port (s)
AMD B450 chipset:
-4 x SATA 6Gb / s port (s)
Support Raid 0, 1, 10
¨
Rozširujúce sloty:
AMD Ryzen ™ 2nd Generation / Ryzen ™ 1st Generation Processors
-1 x PCIe 3.0 / 2.0 x16 (x16 mode)
AMD Ryzen ™ with Radeon ™ Vega Graphics Processor
-1 x PCIe 3.0 / 2.0 x16 (x8 mode)
AMD B450 chipset
-1 x PCIe 2.0 x16 (max at x4 mode)
-3 x PCIe 2.0 x1

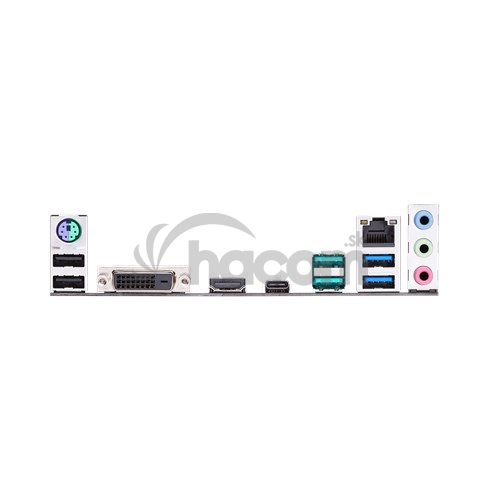

Externé porty:
-1 x PS / 2 keyboard / mouse combo port (s)
-1 x DVI-D
-1 x HDMI
-1 x LAN (RJ45) port (s)
-1 x 5Gb / s port (s) USB Type-CTM
-2 x USB 3.1 Gen 2 (teal blue) Type-A,
-2 x USB 3.1 Gen 1 (blue) Type-A,
-2 x USB 2.0
-3 x Audio jack (s)

Interné porty:
-1 x Aura RGB Strip Header
-1 x USB 3.1 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.1 Gen 1 port (s) (19-pin)
-2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
-1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
-6 x SATA 6Gb / s connector (s)
-1 x CPU Fan connector (s) (1 x 4-PIN)
-3 x Chassis Fan connector (s) (3 x 4-PIN)
-1 x AIO_PUMP connector (1 x 4-PIN)
-1 x 24-pin EATX Power connector (s)
-1 x 8-pin ATX 12V Power connector (s)
-1 x Front panel audio connector (s) (AAFP)
-1 x System panel (s)
-1 x Clear CMOS jumper (s)
-1 x COM port header

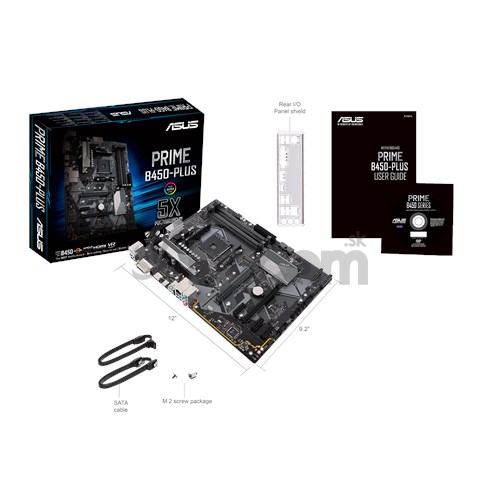

Príslušenstvo:
-User 's manual
-I / O Shield
-2 x SATA 6Gb / s cable (s)
-1 x M.2 Screw Package
-1 x Supporting DVD

Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ....

Viac na stránkach https://www.asus.com/Motherboards/PRIME-B450-PLUS/specifications/
