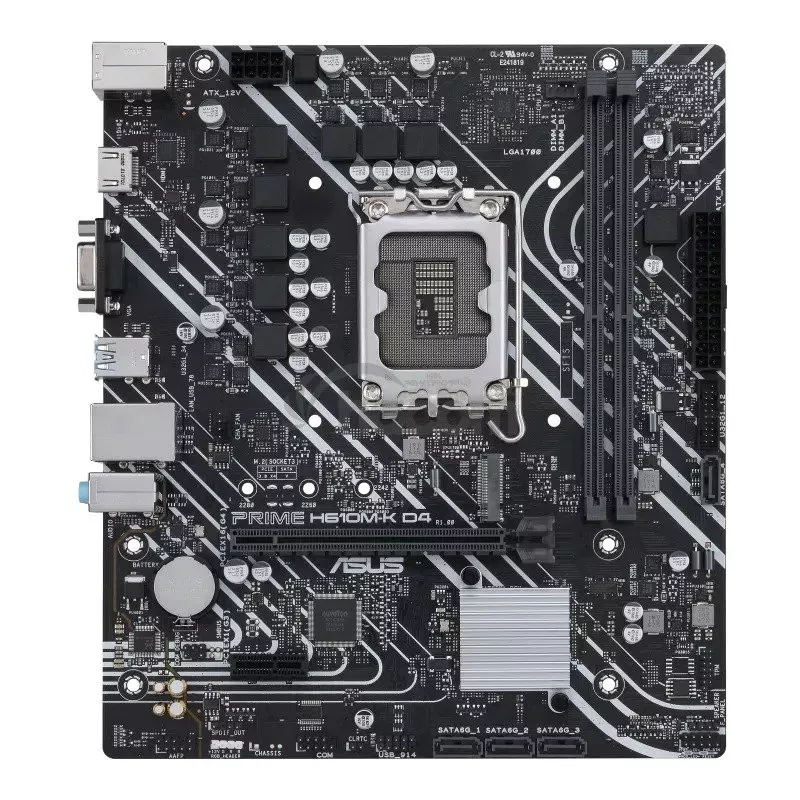

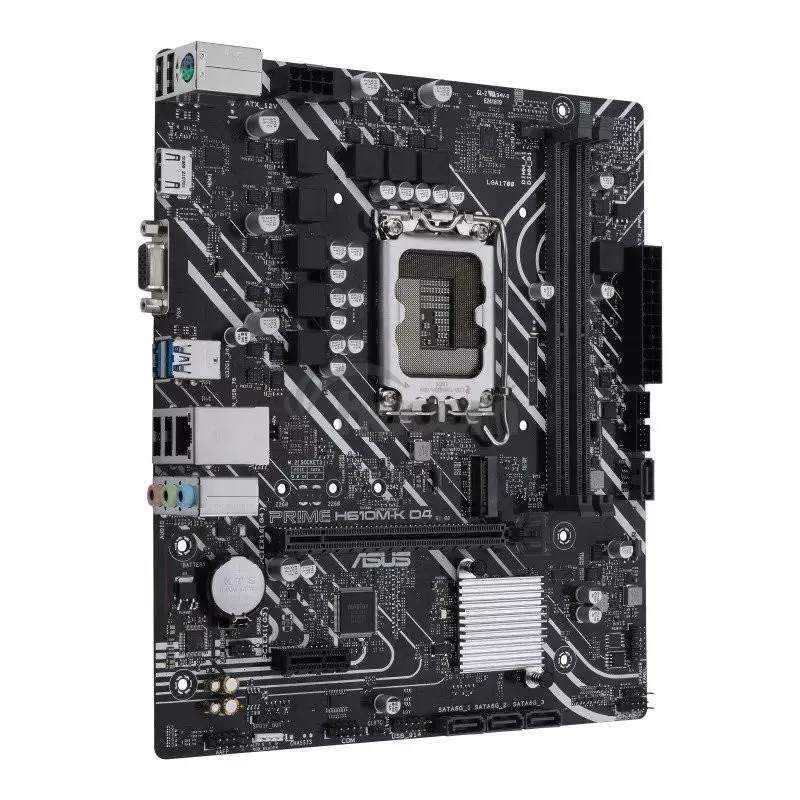

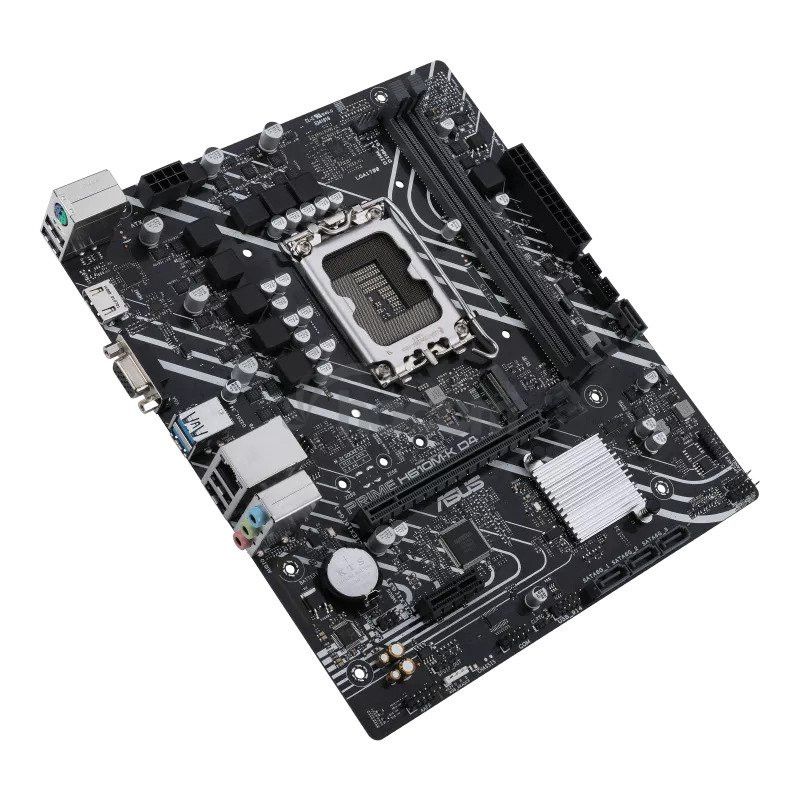

ASUS PRIME H610M-K D4/LGA 1700/mATX 90MB1A10-M0EAY0
Chipset: Intel H610 ChipsetRozmerový formát: mATX (23.4 cm x 20.3 cm)
Podpora pre procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Pätica procesora: LGA1700
Pozícia na pamäti: 2 x DIMM, Dual Channel Memory Architecture
Podpora pre pamäte: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz
Max.veľkosť operačnej pamäte: 64 GB
Podpora pre pamäte typu: XMP
Grafická karta: (na základe procesora)
*1 x D-Sub port
*1 x HDMI port
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
Sieťová karta: 1 x Realtek 1Gb Ethernet
Rozširujúce sloty:
*1 x PCIe 4.0 x16 slot
*1 x PCIe 3.0 x1 slot
SATA: 4 x SATA 6Gb/s ports
M.2: 1 x M.2 slot
USB:
* Interné:
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*1 x USB 2.0 header supports additional 2 USB 2.0 ports
* Externé:
*2 x USB 3.2 Gen 1 ports (2 x Type-A)
*4 x USB 2.0 ports (4 x Type-A)
Interné porty:
* Fan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin Chassis Fan header
* Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
* Storage related
*1 x M.2 slot (Key M)
*4 x SATA 6Gb/s ports
* USB
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*1 x USB 2.0 header supports additional 2 USB 2.0 ports
* Miscellaneous
*1 x RGB header
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x S/PDIF Out header
*1 x Speaker header
*1 x SPI TPM header (14-1pin)
*1 x 10-1 pin System Panel header

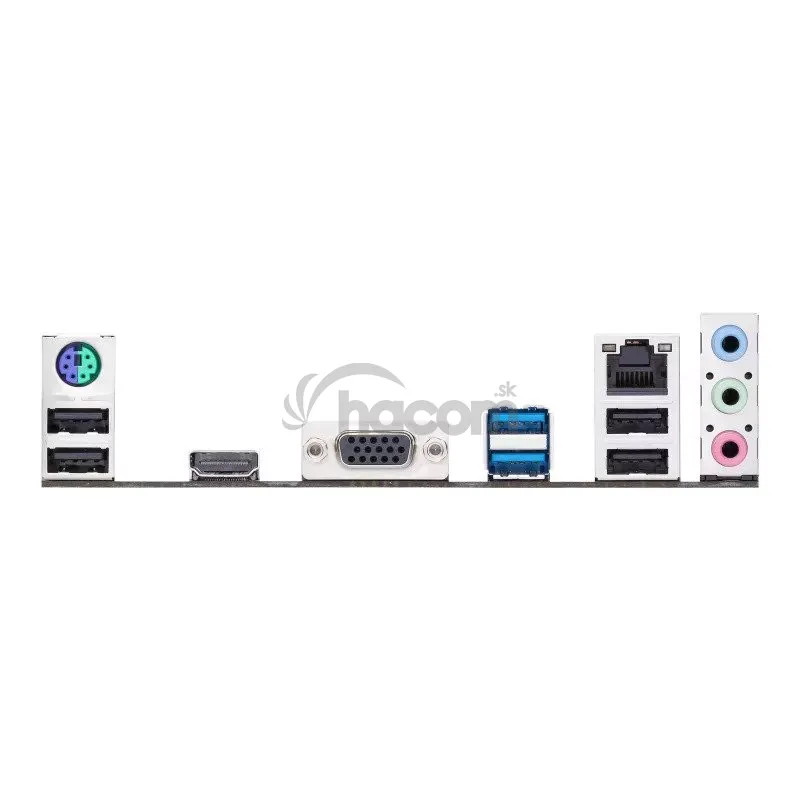

Externé porty:
*2 x USB 3.2 Gen 1 ports (2 x Type-A)
*4 x USB 2.0 ports (4 x Type-A)
*1 x D-Sub port
*1 x HDMI port
*1 x Realtek 1Gb Ethernet port
*3 x Audio jacks
*1 x PS/2 Keyboard/Mouse combo port
BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
Parametre
Hmotnosť | 0,854 kg |
---|
