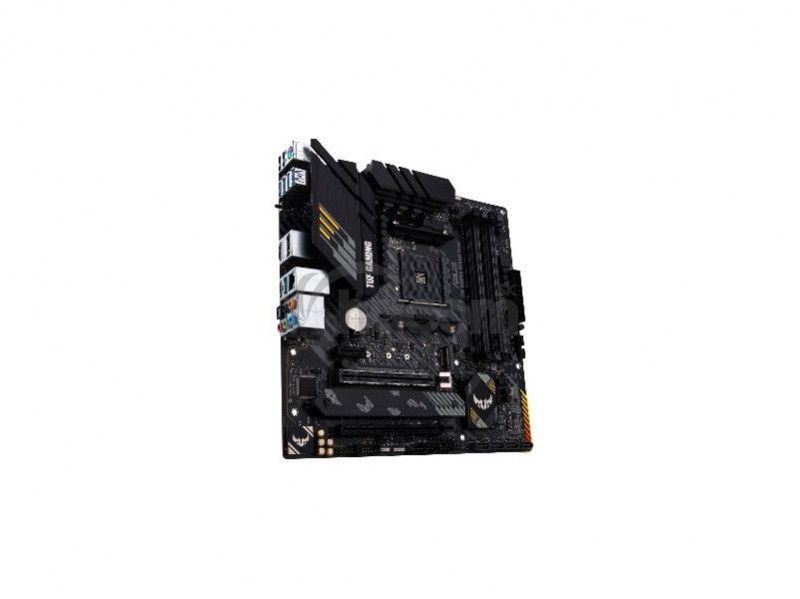

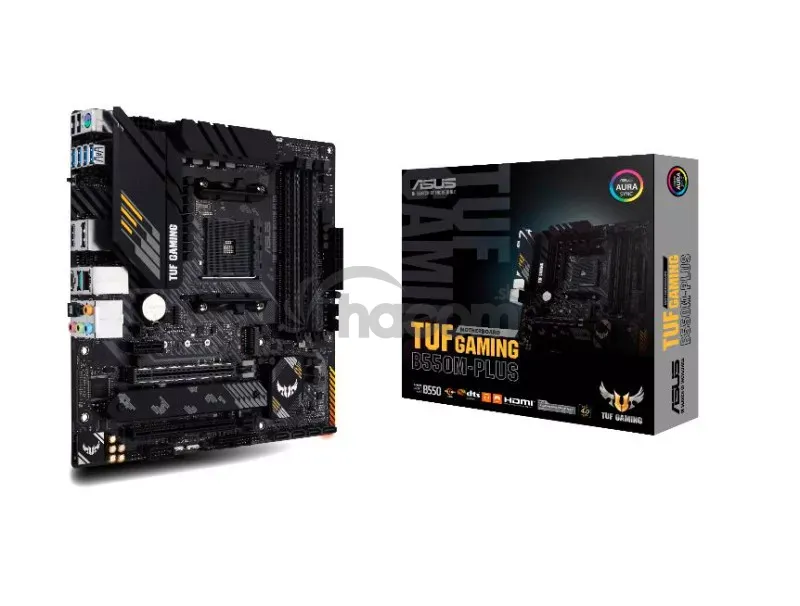

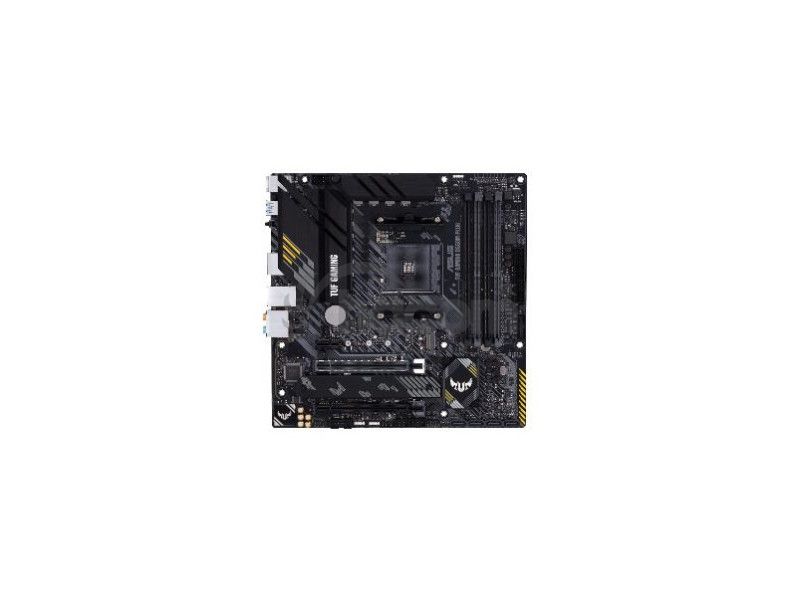

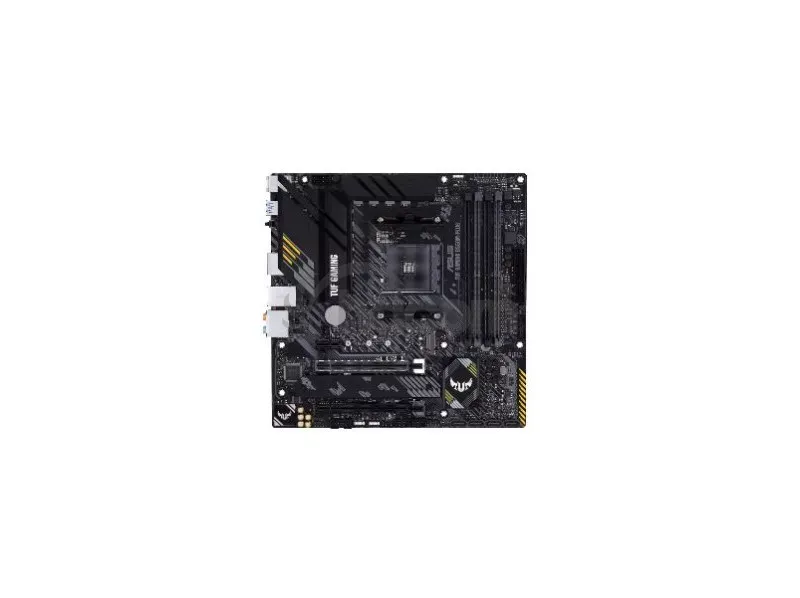

ASUS TUF GAMING B550-PLUS 90MB14A0-M0EAY0

ASUS TUF GAMING B550-PLUS 90MB14A0-M0EAY0

Chipset: AMD B550

Rozmerový formát: mATX Form Factor (244 mm x 244 mm)
Podpora pre procesory: AMD AM4 Socket 3rd Gen AMD Ryzen ™ Processors
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM DIMM
Podpora pre pamäte:
* 3rd Gen AMD Ryzen ™ Processors - 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 ( OC) / 3333 (OC) / 3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
* Next Generation AMD Ryzen PRO Processors - 4800 (OC) / 4600 (OC) / 4466 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 ( OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual Channel Memory Architecture
* ECC Memory (ECC mode) support varies by CPU

Grafická karta: (na základe procesora)
* 1x DisplayPort 1.2
* 1x HDMI 2.1 (4K @ 60Hz)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta:
* Realtek ALC S1200 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta:
* Realtek RTL8125B 2.5Gb Ethernet (TUF Languard)

Rozširujúce sloty:
* 1x PCIe 4.0 x16 (x16 mode)
* 1x PCIe 3.0 x16 (x4 mode)
* 1x PCIe 3.0 x1

RAID radič: 0, 1, 10

SATA:
* 4x SATA 6Gb / s ports

M.2:
* 1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
* 1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support

USB:
* Zadné USB porty (celkom 8)
* 2x USB 3.2 Gen 2 port (s) (1 x Type-A + 1 x USB Type-C®)
* 4x USB 3.2 Gen 1 port (s) (4 x Type-A)
* 2x USB 2.0 port (s) (2 x Type-A)
* Predné USB porty (celkom 6)
* 2x USB 3.2 Gen 1 port (s) (2 x Type-A)
* 4x USB 2.0 port (s) (4 x Type-A)

Interné porty:
* 1x CPU Fan connector (s)
* 1x CPU OPT Fan connector (s)
* 2x Chassis Fan connector (s)
* 2x Aura RGB Strip Headers
* 1x addressable Gen 2 header (s)
* 1x USB 3.2 Gen 1 (up to 5Gbps) connector (s) support (s) additional 2 USB 3.2 Gen 1 port (s)
* 2x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
* 1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)
* 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
* 1x SPI TPM header
* 4x SATA 6Gb / s connector (s)
* 1x 24-pin EATX Power connector (s)
* 1x 8-pin EATX 12V Power connectors
* 1x Front panel audio connector (s) (AAFP)
* 1x Clear CMOS jumper (s)
* 1x System panel connector
* 1x COM port header
* 1x Speaker connector

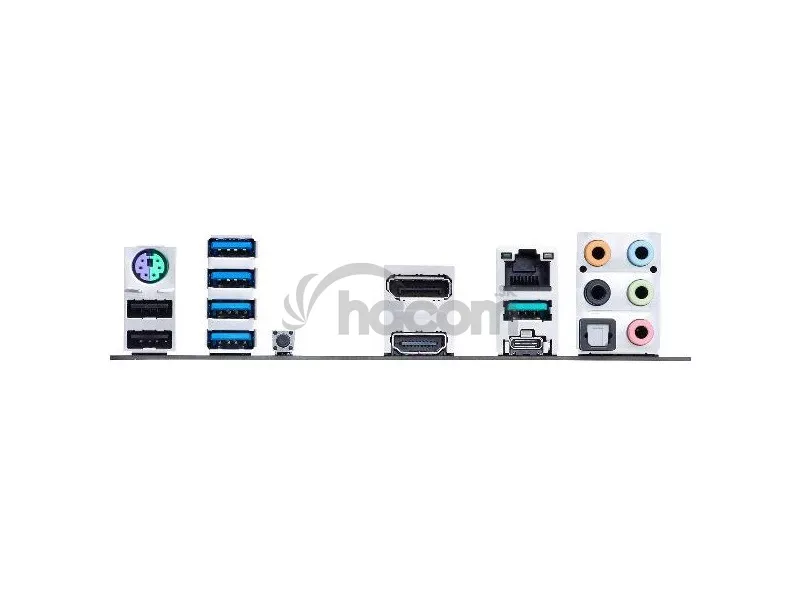

Externé porty:
* 1x PS / 2 keyboard / mouse combo port (s)
* 1x DisplayPort
* 1x HDMI
* 1x LAN (2.5G) port (s)
* 2x USB 3.2 Gen 2 (teal blue) (1 x Type-A + 1 x USB Type-C®)
* 4x USB 3.2 Gen 1 (blue) Type-A
* 2x USB 2.0
* 1x Optical S / PDIF out
* 5x Audio jack (s)
* 1x BIOS FlashBack ™ Button (s)

Obsah balenia:
* User 'manual
* I / O Shield
* 2x SATA 6Gb / s cable (s)
* 1x Supporting DVD
* 1x TUF Gaming Sticker
* 1x TUF Certification card (s)
* 1x M.2 SSD screw package (s)
* 1x M.2 Rubber Package (s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobca: https://www.asus.com/Motherboards/TUF-GAMING-B550M-PLUS
