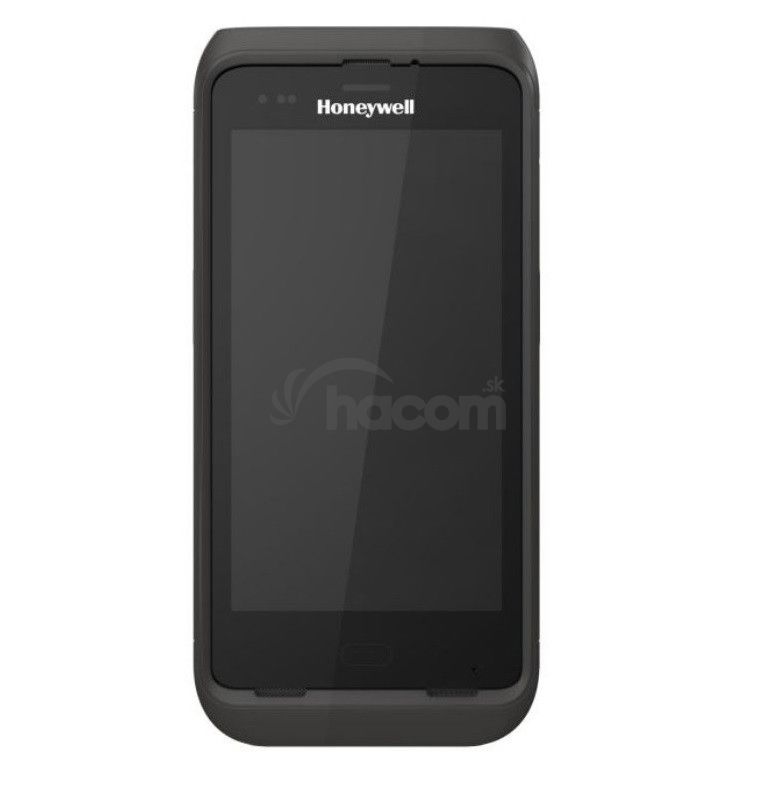

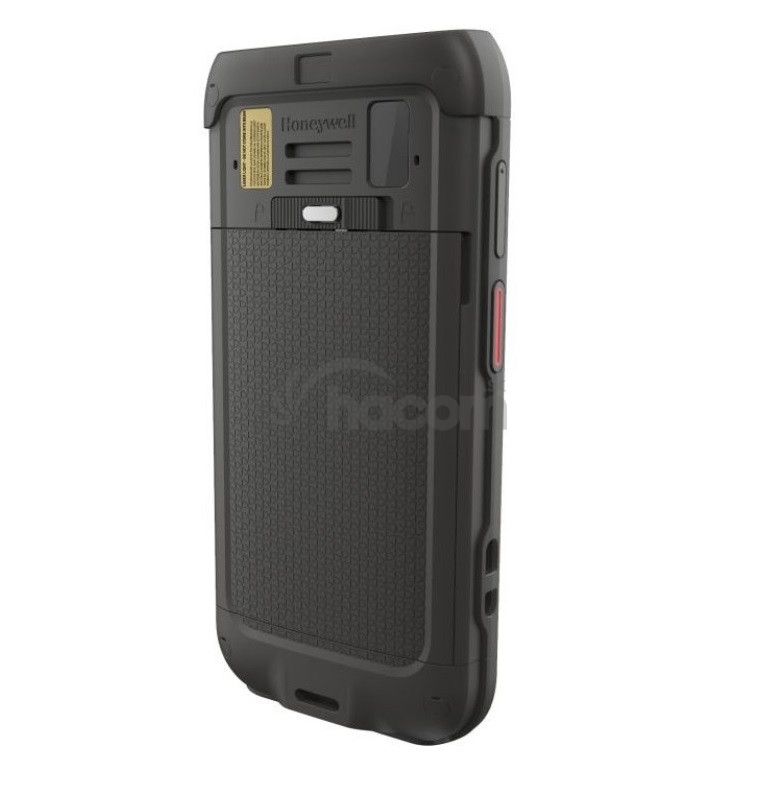

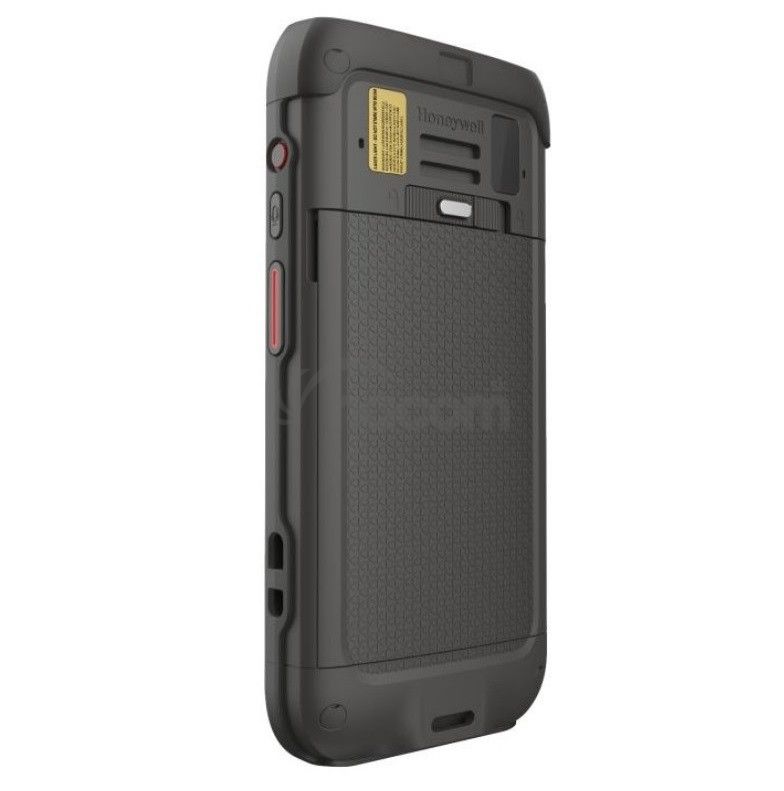

CT45 - WLAN, 4G/65G, IP68A65, BT, USB CT45-L0N-27D100G

CT45 - WLAN, 4G/65G, IP68A65, BT, USB CT45-L0N-27D100G

MECHANICAL

Dimensions: 163 mm x 79 mm x 19.2 mm
Hmotnosť: 282 g (9.9oz) with battery pack
Display Size: 12.7 cm (5.0 in)
Resolution: Full High Definition (1920 x 1080) (CT45XP); High-Definition (1280 x720) (CT45)
Backlight: LED
Touch Panel: Rugged multi-touch capacitive touch panel, optically-bonded pre extra durability. Glove, stylus and rain modes supported (CT45 XP). Water droplet rejection with screen protector mode. Zatvorené s Gorilla Glass 5 pre zvýšenú rezistenciu k poklesu.
Hard Keys: Volume up/down key, ľavý/right scan, power button, Push to Talk button.
Soft Key: On-screen scan button, reprogrammable do application quicklaunch key.
Audio: 3.5 mm jack**, PTT, VoIP ready, reproduktor, HAC-compliant.
Three microphones with noise cancellation
I/O Ports: Durable, flat IO connector, USB Type C connector.
USB OTG supported via I/O ports
USB 3.0 is supported via USB Type C
Universal Dock Platform: Compatible

ENVIRONMENTAL

Operating Temperature: -20 °C do +50 °C (-4 °F do +122 °F)
Storage Temperature: -30 °C do +70 °C (-22 °F do +158 °F)
Humidity: 5% až 95% (non-condensing)
Drop: Multiple 1,8 m (6 ft) kvapky na koncentráciu pri -20 °C do +50 °C (-4 °F do +122 °F) pre MIL-STD-810H; multiple 2,4 m (8 ft) kvapky na betón s protective boot pri -20 °C do +50 °C (-4 °F do +122 °F) pre MIL-STD-810H
Tumble: Exceeds 1,500 times at 1m (3.28 ft) na IEC 60068-2-32 specification
ESD: ±8 kV direct; ±15 kV air
Environmental Sealing: Independently certified to meet štandardy IP68 a IP65 for moisture and particle intrusion
Thermal Shock: -30 °C do +70 °C

SYSTÉM ARCHITECTURE

Procesor: Qualcomm QCS4290/QCM4290 octu-core, 2.0GHz
Operating System: Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility
Memory: 6 GB DDR4x RAM, 64 GB UFS
Flash (CT45XP); 4 GB DDR4x RAM, 64 GB UFS Flash (CT45)
Camera: 13-megapixel rear camera; 8-megapixel front-facing camera.
Sensors: Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, barometer (Model dependent), eCompass (Model dependent), hall sensor, high gravity sensor
SIM:
* CT45 XP: dostupné s konfiguráciou eSIM a Nano SIM alebo konfigurácia z 2 Nano SIMs
* CT45: Available with configuration of 2 Nano SIMs
Storage Expansion: User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)
Battery: Li-ión, 3.85 V, 4020 mAh; smart battery with integrated diagnostic tools
Battery warm swap: Available on CT45 XP
Charging: Quick Charge 3.0 compliant; Less than 3 hours to be fully charged.
Hours of Operation: 12+ hours
Decode Capabilities: Honeywell FlexRange, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android
Application Software: Honeywell Mobility Edge Utilities and Demos

WARRANTY

One-year factory warranty

WIRELESS CONNECTIVITY

WWAN: WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EÚ)
AT&T FirstNet Compliant
LTE Advanced Support
Up to 390 Mbps CAT13 LTE downlink
Up to 75 Mbps CAT5 LTE uplink
LTE – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71
UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM: 850, 900, 1800, 1900 (Quad Bands)
WLAN: Wi-Fi certified
CT45 XP WLAN: IEEE 802.11 a/b/g/n/ac/ax a 2*2 MU-MIMO
Všetky ostatné konfigurácie: IEEE 802.11 a/b/g/n/ac
All SKUS: 802.11 d/e/h/i/k/r/v/u/w/mc
WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)
Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compliant (except CT45XP WLAN)
Bluetooth®: V5.1 Bluetooth a BLE
2nd BLE: dostupný na CT45 XP
Bluetooth Profiles: HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
NFC: integrovaný NFC reader, kompatibilný s ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K/4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
VPN: IPSec V4/L2TP, PPTP
Push to Talk (PTT): Supported
GPS Supported Protocols: Simultaneous GNSS Receiver Support pre GPS, GLONASS, Galileo, a Beidou, Assisted GPS

* Špecifikácie sú subjectom k change without notice.
* 3.5mm jack je dostupný na Wi-Fi version only.
