D-Link DGS-1210-10MP 10 Gbit PoE Smart, 8xGbE PoE+ DGS-1210-10MP/E

D-Link DGS-1210-10MP 10 Gbit PoE Smart, 8xGbE PoE+ DGS-1210-10MP/E

D-Link DGS-1210-10MP 10port Gb Smart sw, PoE 130W

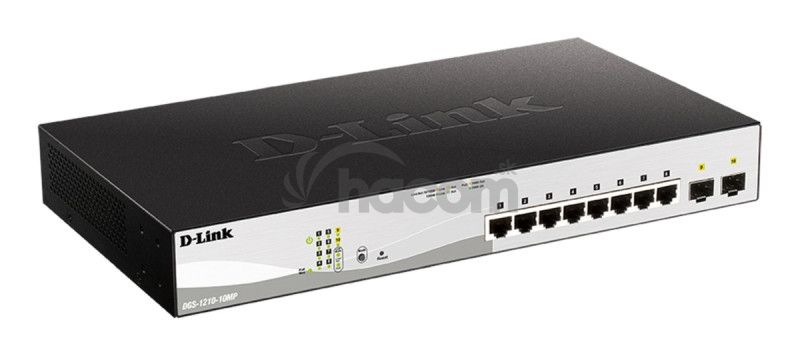

D-Link DGS-1210-10MP je 10-portový PoE+ Gigabit Ehernet L2/L3 Smart Managed switch bez vetrákov, vhodný pre podnikové siete (SMB) a kamerové systémy. Je osadený 8 portami 10/100/1000M RJ-45 s podporou napájania 802.3af/802.3at PoE+ (max. 30W) a dvoma 100/1000M SFP slotmi s podporou 100M SFP a Gigabit SFP transceiverov. Celkový PoE výkon prepínača je 130W. Napájanie prepínača je 230V AC, súčasťou dodávky sú držiaky pre montáž do 19“ rozvádzača.
Okrem pokročilej sady L2 funkcií, VLAN, QoS, AAA, ACL a bezpečnostných funkcií je podporovaný aj L3 statický routing (max. 4 IP Interface, 124/50 IPv4/IPv6 záznamov). Funkcia Voice VLAN detektuje pripojenie IP telefónov a priraďuje ich automaticky do samostatnej VLAN s vyššou prioritou. Unikátny Surveillance režim umožňuje pomocou LLDP a ONVIF detekovať prvky kamerových systémov (IP kamery, NVR) a automaticky ich priradiť do oddelenej video-VLAN. Vo webovom rozhraní prepínača je možné zobraziť aj topológiu siete. Výrazne sa tak zjednodušuje a urýchľuje nasadenie a správa firemnej siete a IP kamerových systémov.
Správa prepínača je z intuitívneho webového rozhrania alebo pomocou SNMP príkazov. K dispozícii je aj bezplatná utilita D-Link Network Assistant (DNA) a centrálna NMS plaforma D-View7. Kompaktná sada Telnet CLI príkazov umožňuje základné nastavenie prepínača (nastavenie IP adresy, hesla, reset, reboot, ping, upgrade FW, nahranie/zálohovanie konfigurácie, show, debug).

Špecification:

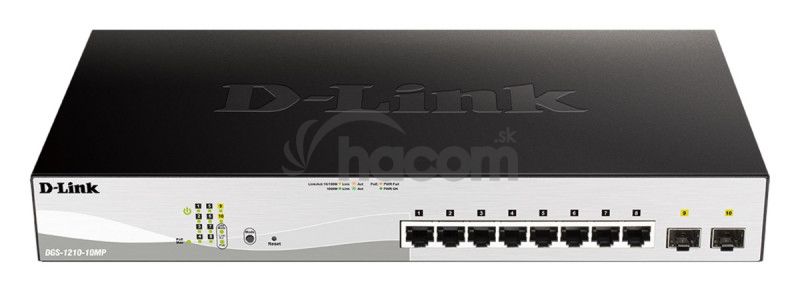

Interfaces: 8x 10/100/1000 Base-T PoE+ (802.3at) and 2x 100/1000 Mbps SFP ports
PoE capable ports: ports 1 to 8, IEEE 802.3af PoE / 802.3at PoE+ (max. 30W)
PoE power budget: 130W
Port standards:
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
- IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- IEEE 802.3x Flow Control
Duplex Mode:
- Full/Half-duplex pre 10/100 Mbps
- Full-duplex for 1000 Mbps
Media Interface Exchange: Auto MDI/MDIX prispôsobenie pre všetky twisted-pair ports
Switching Capacity: 20 Gbps
MAC Address table: 8K entries
Static MAC Addresses : 256 entries
Maximum 64 Byte Forwarding Rate: 14,88 Mpps
Packet Buffer Memory: 4,1 Mbits
CPU Memory: DDR3 128 MB
Flash Memory: 32 MB

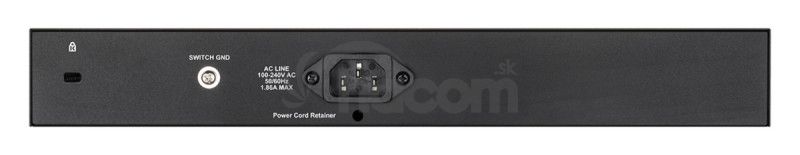

Internal Power Supply 100 až 240V AC
Maximum Power Consumption: 9,4 W/240 V (without PoE)
Standby Power Consumption: 5,2 W / 240V
Acoustics: 0 dB (fanless)
Heat Dissipaion: 507.23 BTU/hr (240V)
Operating Temperature: -5 až 50 °C
Storage Temperature: -20 až 70 °C
Operating / Storage Humidity: 0% to 95% relative humidity
Dimensions (L x W x H): 330 x 180 x 44 mm
Installation: Desktop / 19“ Rack Mount (mounting brackets included)
Weight: 1,77 kg
MTBF: 1,274,005hours


L2 Features:

MAC Address Table: 8K entries
IGMP Snooping
- IGMP v1/v2 Snooping
- IGMP v3 awareness
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
MLD snooping v1/v2 (256 groups)
Loopback Detection
802.3ad Link Aggregation: Maximum 8 skupín/8 portov na skupinu
LLDP / LLDP-MED
Jumbo Frame: Up to 10,000 bytes
Spanning Tree Protocol: 802.1D STP, 802.1W RSTP, 802.1s MSTP
Flow Control: 802.3x Flow Control, HOL Blocking Prevention
Port Mirroring: One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both
Multicast Filtering: Forwards all unregistered groups, Filters all unregistered groups
Configurable MDI/MDIX

VLAN:
802.1Q
VLAN Group: Max. 256 static VLAN groups
Configurable VID from 1 - 4094
Asymmetric VLAN
Auto Voice VLAN: Max. 10 user-defined OUI, Max. 8 default OUI
Auto Surveillance VLAN
Quality of Services (QoS):
802.1p Quality of Service
8 queues per port
Queue Handling: Strict, Weighted Round Robin (WRR)
Bandwidth Control: Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
QoS založené na:
- 802.1p priority queues
- DSCP
- MAC address
- EtherType
- IP address
- Protocol type
- ToS
- IP preferencie
- IPv6 Traffic Class
- TCP/UDP port

L3 Features:

IP interface: Supports 4 interfaces
IPv6 Neighbor Discovery (ND)
Static routing: 124 IPv4 static route entries, 50 IPv6 static route entries

Access Control List (ACL):

Max. 50 access lists
Max. 768 rules shared by IPv4, MAC, a IPv6
Každá ruka môže byť spoločne s jedným portom
ACL založený
- MAC address
o 802.1p priority mask
o VID mask
o Source/destination MAC address mask
o EtherType mask
- IP address
o Source/destination IP address mask
o DSCP mask
o Protocol type mask
o TCP/UDP port number mask
- IPv6 address
o Source/destination IP address mask
o DSCP mask
o Protocol type mask
o TCP/UDP port number mask
o IPv6 traffic class mask

Security:

Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
Traffic segmentation
SSH v2
TLS v1.0
DoS attack prevention
802.1X Port-based Access Control
Port Security: Supports up to 64 MAC addresses per port
ARP Spoofing Prevention: Max. 127 entries
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding)
- ARP Inspection: Max. 256 entries
- IPv4 Inspection: Max. 127 entries
- IPv6 Inspection: Max. 63 entries
- DHCP Snooping: Max. 512 entries

AAA 802.1X Authentication:

Supports local/RADIUS database
Supports port-based access control
Supports EAP, OTP, TLS, TTLS, PEAP
Max. 128 entries when using local database
IPv6 RADIUS server
Support MD5 authentication

OAM
Cable Diagnostics
Factory Reset

Management:

Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX
SNMP
Supports v1/v2c/v3
SNMP Trap
Backup/upgrade firmware
Smart Wizard
Upload/download configuration file
BootP/DHCP Client
System Log: Max. 500 log entries
SNTP
ICMP v6
IPv4/v6 Dual Stack
DHCP Auto Configuration
Time setting
RMONv1
Trusted hosť
Dual image
Dual configuration

Green V3.0 Technology:
Power Saving by:
- Link Status
- System hibernation
- Port shut off
- Cable length detection
