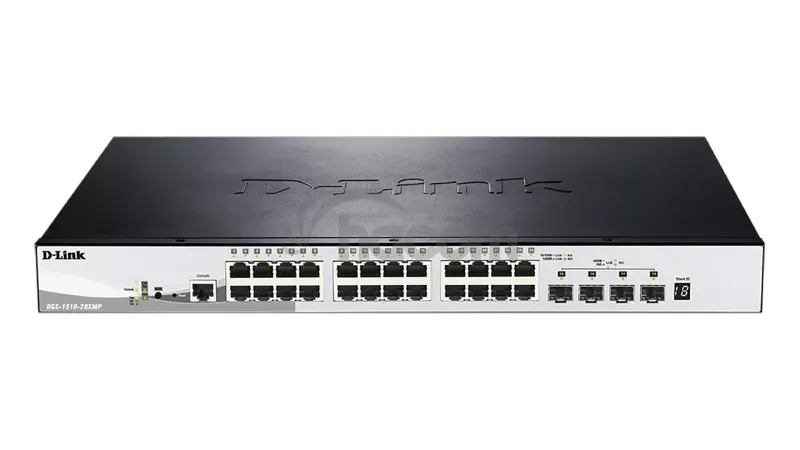

D-Link DGS-1510-28XMP Switch 24xGb+4xSFP+ DGS-1510-28XMP/E
OVERVIEWInformácie k záruke:
Na produkt je poskytovaná obmedzená doživotná záruka, to znamená, že záručná lehota vyprší až päť rokov po tom, čo spoločnosť D-Link (alebo jej nástupca) ukončí predaj daného produktu v Európe.
Pre nárok na obmedzenú doživotnú záruku je potrebné produkt zaregistrovať (viď nižšie) u D-Link Europe do tridsiatich (30) dní od dátumu zakúpenia. Registráciu je možné vykonať cez samoobslužný portál.
http://www.dlink.com/sk/sk/support/product-registration-and-support-log-in
DGS-1510 Series Gigabit Stackable Smart Managed Switches consists of:
DGS-1510-28XMP: 28-Port Gigabit Stackable PoE Smart Managed Switch including 4 10G SFP+ (24 x PoE ports, 370 W PoE budget, smart fans)
D-Link DGS-1510 Series je posledná generácia inteligentných riadiacich spínačov s 10G schopnosťou, dostupnou s 16, 24, alebo 48 10/100/1000 Mbps porty plus dodatočné fibrové porty pre fyzické sťahovanie alebo uplinks. The PoE-capable DGS-1510-28P a DGS-1510-28XMP switches provide additional flexibility pre businessy hľadajú power IP telefóny, bezdrôtové prístupové body, alebo IP kamery pomocou existujúcej siete infraštruktúry. Kombinácia vysokých bandwidth pripojení a PoE podporu pre DGS-1510 Series ideálne pre malé-medium podnikania (SME) a malé-médium podnikania (SMB) environmentálne.
10G SFP+ Stacking/Uplink Ports
V posledných dvoch SFP+ portoch DGS-1510 série switch allow users tvorí fyzický stoh z 6 unít v fault-tolerant krúžku alebo lineárnej topológii pomocou Direct Attach Cables (DACs) alebo any compatible SFP+ transceiver1. Tieto tvoria celkovo 288 gigabitov portov, zahŕňajúc vysokú bandwidth pri stúpaní cost-efficient. Meanwhile, remaining uplink porty môžu byť použité pre ostatné funkcie, such as connecting to a larger network. Používatelia môžu tiež bezpečne configure a riadiť každý DGS-1510 Series Smart Managed switches in a single stack. With 20 Gbps full-duplex capabilities, the DGS-1510 Series offers 10G connectivity k core networks and servers while still maintaining fast data transfer rates.
Layer 3 Traffic Management
DGS-1510 Series vykonáva statický routing, ktorý umožňuje váš segment vašej siete do pracovných skupín, ktoré komunikujú medzi VLANs a zlepšenie application performance. Pomocou týchto schopností, môžete redukovať load on vaše core devices, umožniť vám vytvoriť a scalable and efficient network.
Extensive Layer 2 Features
DGS-1510 série prepínačov sú vybavené kompletnou line-up 2-ročným layerom, vrátane IGMP Snooping, Port Mirroring, Spanning Tree, a Link Layer Discovery Protocol (LLDP). IEEE 802.3x Flow Control funkčnosť allows servers k directly connect to k switch for fast, reliable data transfer. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection automaticky detekuje a shuts down loops vytvorený pomocou špecifického portu alebo VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can determine cable quality and can quickly discover sections of cabling that need to be replaced.
Traffic Classification & QoS
Sérii DGS-1510 podporuje Auto Surveillance VLAN (ASV) a Auto Voice VLAN, ktoré sú najlepšie pripojené na VoIP a video surveillance deployments. Auto Surveillance VLAN je nový, industry-leading technológia budovy do D-Link Smart switches. Táto technológia consolidates dáta a surveillance video transmisie cez jeden DGS-1510 Series Smart Managed switch, saving businesses náklady na maintaining expensive dedicated hardware and infrastructure. ASV tiež zlepší kvalitu real-time video na monitorovanie a kontrolu bez kompromisu na transmisiu konvenčných sietí údajov prostredníctvom ASV traffic priority cez ostatné balíky.
Keep Your Network Secure
D-Link's inovatívny Safeguard Engine protects the DGS-1510 Series proti traffic flooding caused by malicious attacks. DGS-1510 Series supports bot MAC a web-based access control. Tieto gives sieťových správcov multiple authentication options, redukovanie deployment times a removing need for client softvér. DGS-1510 Series supports IEEE 802.1X port-based authentication, allowing network users to be authenticated through external RADIUS servers. Address Resolution Protocol (ARP) Spoofing Prevention feature helps to prevent attacks that may allow intruder to intercept users' traffic while the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorised.
IPv6 Ready
DGS-1510 Series je IPv6 ready and supports rôzne IPv6 funkcie such as MLD Snooping, IPv6 Security features, a IPv6 Quality of Service (QoS), zaoberajúca sa bezproblémové integrácie s next generation networks. DGS-1510 Series tiež podporuje IPv4/v6 dual stack functionality, ktoré povoľujú prepínače do akcie ako most between IPv4 a IPv6 siete.
1 Keď sťahujete v lineárnej typológii, remaining unused SFP+ porty v sťahovacom porte pár zvrchu a pätky prepínačov bude tiež považovaný za ovládnutý spínačom a cannot byť použitý pre každý druhý purpose.
TECHNICAL SPECS
General
Port Standards & Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE
IEEE 802.3x Flow Control pre Full-Duplex Mode
Auto-negotiation
Number of Ports
DGS-1510-28XMP - 24 10/100/1000 Mbps PoE capable, 4 10G SFP+
Network Cables
UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange
Auto or configurable MDI/MDIX
Performance
Switching Capacity
DGS-1510-28XMP - 128 Gbps
Transmission Method
Store-and-forward
MAC Address Table
16,000 entries per device
MAC Address Update
Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate
DGS-1510-28XMP - 95.24 Mpps
Packet Buffer Memory
DGS-1510-20/28/28X/28P/28XMP - 1.5 MB per device
PoE (DGS-1510-28P a DGS-1510-28XMP only)
PoE Standard
IEEE 802.3af, 802.3at
PoE Capable Ports
Ports 1 to 24: Up to 30 W
PoE Power Budget
DGS-1510-28XMP - Max. 370 W
Physical & Environment

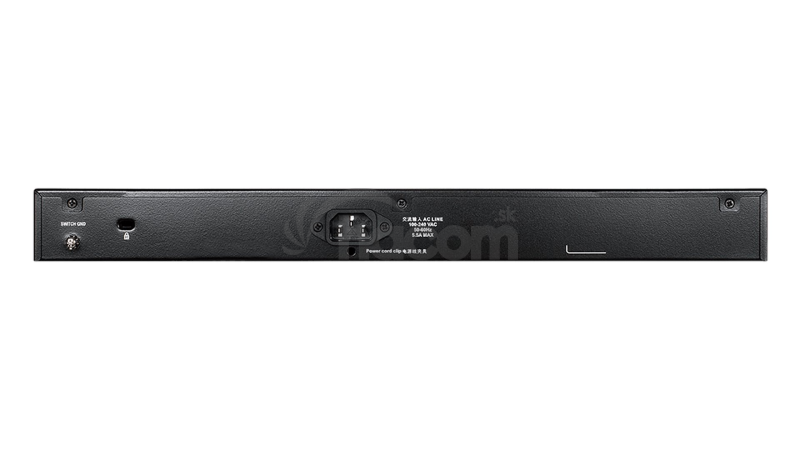

AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption
DGS-1510-28XMP - 436.3 W (PoE on), 38.4 W (PoE off)
Standby Power Consumption
DGS-1510-28XMP - 28.3 W
Smart Fan Quantity
DGS-1510-28P/28XMP/52/52X - 2
Acoustics
DGS-1510-28XMP - 56.9 dB(A)
Heat Dissipation
DGS-1510-28XMP - 1487.78 BTU/hr
Operation Temperature
-5 až 50 °C
Storage Temperature
-20 to 70°C
Operation Humidity
0% to 95% non-condensing
Storage Humidity
0% to 95% non-condensing
Dimensions
DGS-1510-28XMP - 440 x 308 x 44 mm
Weight
DGS-1510-28XMP - 4.25 kg
Diagnostic LEDs
Power/Stacking ID/Fan (per device)
Power/Stacking ID/Fan Error/PoE Push Button (per device) (for DGS-1210-28P only)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity/Speed/PoE Mode (per 10/100/1000 Mbps port) (for DGS-1210-28P only)
Link/Activity/Speed (per Gigabit SFP port)
Link/Activity/Speed (per 10G SFP+ port)
Certifications
CE
FCC
C-Tick
VCCI
BSMI
CCC
Safety
cUL
CB
Softvér Features
Stackability
Virtual Stacking Support
>D-Link Single IP Management
>Up to 32 devices per virtual stack
>Up to 20G stacking bandwidth
Physical Stacking1
>Supports Duplex Chain/Ring topológia
>Up to 40G stacking bandwidth full duplex
>Up to 6 units per stack
L2 Features
MAC Address Table: Up to 16,384
Flow Control
>802.3x Flow Control
>HOL Blocking Prevention
Jumbo Frame up to 9,216 Bytes
IGMP Snooping
>IGMP v1/v2 Snooping
>IGMP v3 awareness
>Supports 512 IGMP groups
>Supports 128 static multicast addresses
>IGMP per VLAN
>Supports IGMP Snooping Querier
>Host-based IGMP Snooping Fast Leave
MLD Snooping
>Supports MLD v1/v2 awareness
>Supports 512 groups
>Supports 128 Static Multicast Addresses
>Per VLAN MLD Snooping
>Host-based MLD Fast Leave
>MLD Snooping Querier
Spanning Tree Protocol
>802.1D STP
>802.1w RSTP
>802.1s MSTP
Loopback Detection v4.072
802.3ad Link Aggregation
>Max. 32 groups per device/8 ports per group
Port Mirroring
>Support 4 mirroring groups
>One-to-One, Many-to-One
>Supports Mirroring for Tx/Rx/Both
Multicast Filtering
>Forwards all unregistered groups
>Filters all unregistered groups
Ethernet Ring Protection Switching (ERPS)
VLAN
802.1Q Tagged VLAN
4K VLAN Groups
Configurable VID: 0~4094
GVRP
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN 2.02
MAC-based VLAN
Protocol-based VLAN
Quality of Service (QoS)
CoS based on
>802.1p priority
>VLAN
>MAC address
>Ether type
>IP address
>DSCP
>Protocol type
>TCP/UDP port number
>DSCP of IPv6 Traffic Class
>IPv6 flow label
802.1p Quality of Service
Queue Handling
>Strict Priority Queue (SPQ)
>Weighted Round Robin (WRR)
>Deficit Round Robin (DRR)
>SPQ + WRR
8 queues per port
Bandwidth Control
>Port-based (Ingress/Egress, min. granularity pre 10/100/1000 BASE-T ports je 64 Kb/s)
L3Features
ARP
>256 Static ARP
>Supports Gratuitous ARP
IPv6 Neighbour Discovery (ND)
16 IP interfaces
Default Routing
Static Routing
>64 IPv4 Static Route Entries
>32 IPv6 Static Route Entries
UDP helper2
Access Control List (ACL)
ACL založený
>802.1p priority
>VLAN
>MAC address
>Ether type
>IP address
>DSCP
>Protocol type
>TCP/UDP port number
>DSCP of IPv6 Traffic Class
>IPv6 flow label
ACL Actions
>Permit
>Deny
Max. 256 access list
Max. 768 rules
Single or multiple ports (each rule)
Time-based ACL
ACL Statistics
Security
Port Security
>Supports up to 128 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
Dynamic ARP Inspection
D-Link Safeguard Engine
DHCP Server Screening
ARP Spoofing Prevention
>Max. 64 entries
SSH
>Supports v2
>Supports IPv4/IPv6
BPDU Attack Protection
DoS Attack Prevention
SSL
>Supports v1/v2/v3
>Supports IPv4/IPv6
Traffic Segmentation
IP-MAC-Port Binding
>DHCP snooping
>IP Source Guard
>Dynamic ARP Inspection
>IPv6 DHCP Guard
>IPv6 RA Guard
>IPv6 Snooping
>IPv6 Source Guard
>IPv6 ND Inspection
AAA
Compound Authentication
802.1X Port a MAC-based Authentication
>Supports RADIUS and Local Server
>Supports EAP, OTP, TLS, TTLS, PEAP
Web-based Access Control (WAC)
>Port-based Access Control
>Host-based Access Control
>Dynamic VLAN Assignment
Guest VLAN
RADIUS and TACACS+ authentication for switch access
RADIUS and TACACS+ accounting
MAC-based Access Control (MAC)
>Port-based Access Control
>Host-based Access Control
>Dynamic VLAN Assignment
Japan Web-based Access Control (JWAC)
>Port-based Access Control
>Host-based Access Control
>Dynamic VLAN Assignment
OAM
Cable Diagnostics
sFlow
Factory Reset
Management
Command Line Interface (CLI)
Telnet Server
TFTP Client
IPv6 Neighbor Discovery
Configurable MDI/MDIX
SNMP
>Supports v1, v2c, v3
SNMP Trap
System Log
>Max. 10,000 log entries
Debug command
Dual images
Surveillance mode2
DHCP Client
D-Link Network Assistant support
SNTP
ICMPv6
IPv4/v6 Dual Stack
DHCP Auto Configuration
RMON v1
LLDP, LLDP-MED
DHCP relay
Web-based GUI
TFTP Client
NTP
Telnet client (supports CLI only)
D-Link Green 3.0 Technology
Power Saving by:
>Link Status
>LED or Port Shutoff
System Hibernation mode
Time-based PoE (PoE models only)
Parametre
Hmotnosť | 6,064 kg |
---|
