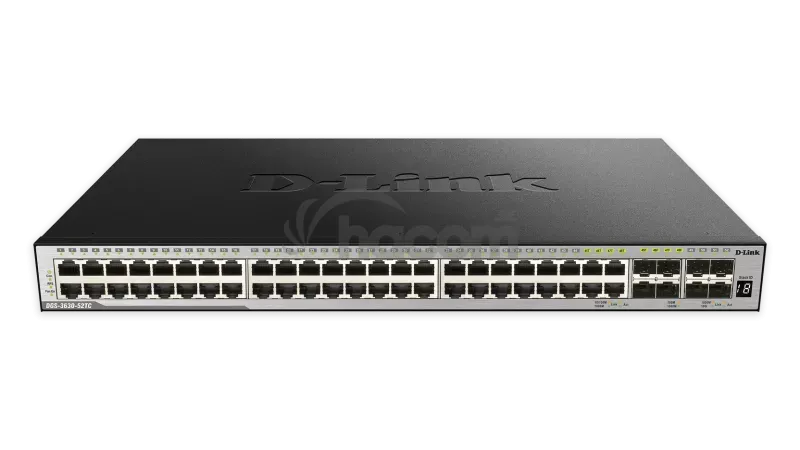

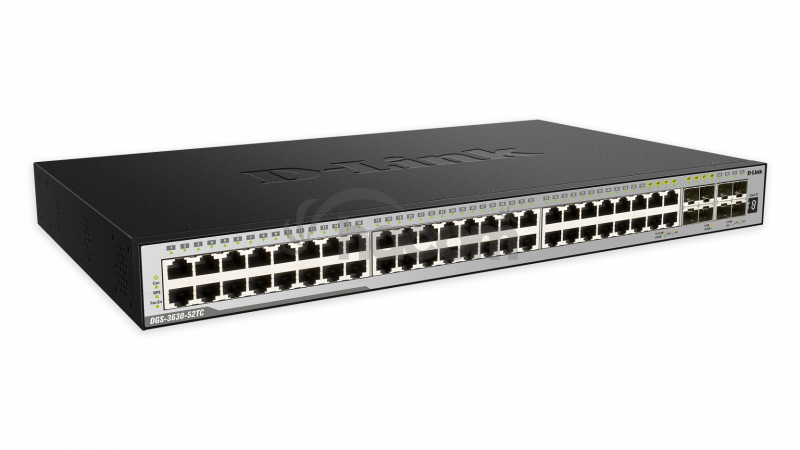

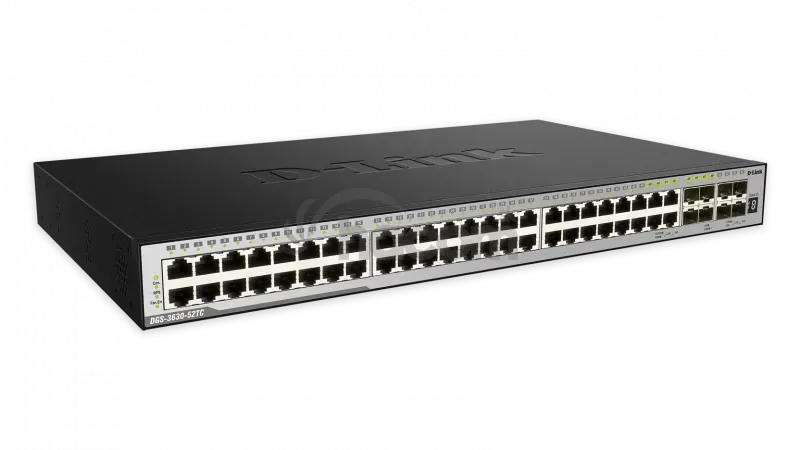

D-Link DGS-3630-52TC / SI DGS-3630-52TC/SI
Informácie k záruke:Na produkt je poskytovaná obmedzená doživotná záruka, to znamená, že záručná lehota vyprší až päť rokov potom, čo spoločnosť D-Link (alebo jej nástupca) ukončí predaj daného produktu v Európe.
Pre nárok na obmedzenú doživotnú záruku treba produkt zaregistrovať (pozri nižšie) u D-Link Europe do tridsiatich (30) dní od dátumu zakúpenia. Registráciu je možné vykonať cez samoobslužný portál.
popis
The DGS-3630 Series Layer 3 Stackable Managed Switches are designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. They deliver high performance, flexibility, fault tolerancie, and advanced softvér features for maximum return on investment. With Gigabit Ethernet RJ45 and SFP ports, 10 GbE SFP + ports, advanced security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications.
technická špecifikácia
interfaces
• 10/100 / 1000BASE-T Ports
44 (DGS-3630-52TC)
• Combo 10/100 / 1000BASE-T or SFP Ports
4
• 10 Gigabit SFP + Ports
4
• Console Port
RJ45 and Mini USB console ports for out-of-band CLI management
• Management Port
10/100 / 1000BASE-T RJ45 Ethernet for out-of-band IP management
• Alarm Port
RJ45
• USB Port
USB 2.0 Type A
• Optional Redundant Power Supply
DPS-500A
performance
• Switch Capacity
176 Gbps
• Packet Forwarding Rate
130.95 Mpps
• Packet Buffer
4 MBytes (DGS-3630-52TC)
• MAC Address Table
68K entries
• IPv4 Routing Table
16K entries
• IPv6 Routing Table
7K entries (DGS-3630-52TC)
• IPv4 Forwarding Table
32K entries
• IPv6 Forwarding Table
16K entries
• Jumbo Frame Size
12 KBytes
Physical and Environmental
• MTBF
263,936 hours
• Acoustics
53.9 dB (A)
• Heat Dissipation
212 BTU / hr
• Power Input
100 to 240 VAC, 50/60 Hz
• Max Power Consumption
62.0 W
• Standby Power Consumption
36.0 W
• Dimensions
441 x 260 x 44 mm
• Weight
4.04kg
• Ventilation
2 Smart Fans
• Operating Temperature
-5 ° C to 50 ° C
• Storage Temperature
-40 ° C to 70 ° C
• Operating Humidity
10% to 95% RH
• Storage Humidity
5% to 95% RH
• Safety Certifications
cUL, CB, CE, CCC, BSMI
• EMI / EMC
CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Parametre
| Hmotnosť | 5,54 kg |
|---|
