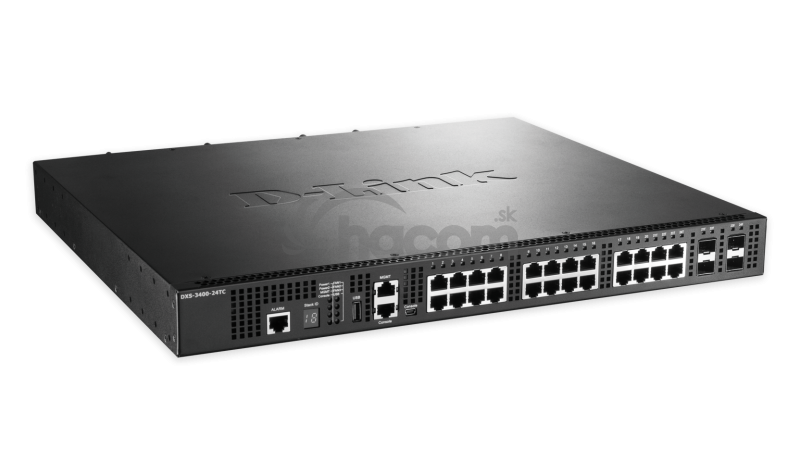

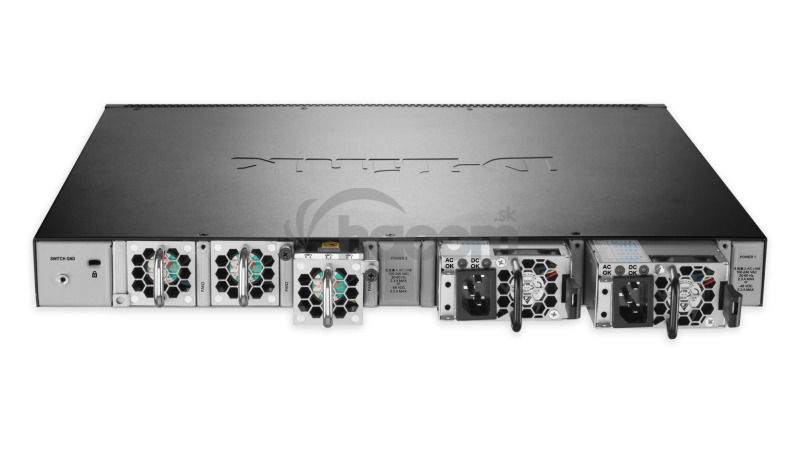

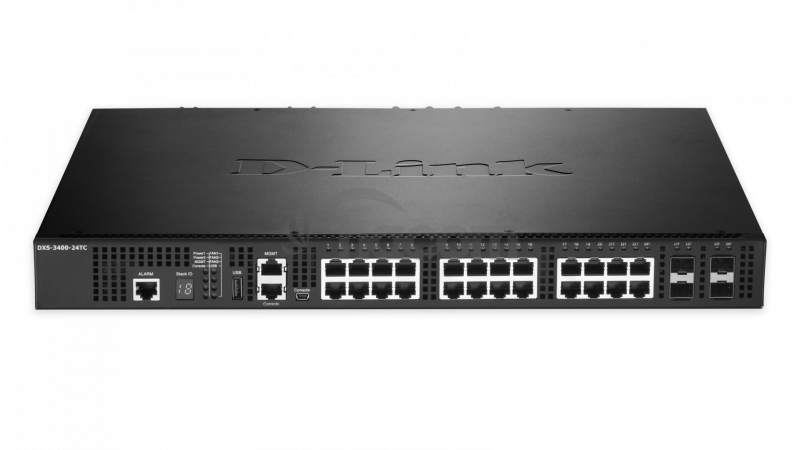

D-Link DXS-3400-24TC 20x10GBASE-T 4xSFP + switch DXS-3400-24TC
Informácie k záruke:Na produkt je poskytovaná obmedzená doživotná záruka, to znamená, že záručná lehota vyprší až päť rokov potom, čo spoločnosť D-Link (alebo jej nástupca) ukončí predaj daného produktu v Európe.
Pre nárok na obmedzenú doživotnú záruku treba produkt zaregistrovať (pozri nižšie) u D-Link Europe do tridsiatich (30) dní od dátumu zakúpenia. Registráciu je možné vykonať cez samoobslužný portál.
PREHĽAD
D-Link 's DXS-3400 Series Lite Layer 3 Stackable 10 GbE Managed Switches are compact, high-performance switches that feature wire speed 10-Gigabit Ethernet switching, routing, and ultra-low latency. The 1U height and high port density make the DXS-3400 Series suitable for enterprise and campus environments where space is at a premium. 10GbE Copper and Fiber versions are available. The DXS-3400-24TC includes twenty (20) 10GBASE-T (RJ45) ports and four (4) 10GbE "Combo" ports (RJ45 / SFP +). The DXS-3400-24SC includes twenty (20) 10GbE optical (SFP +) ports and four (4) 10GbE "Combo" ports (RJ45 / SFP +).
TECHNICKÁ ŠPECIFIKÁCIA
• 10GBASE-T (RJ45) ports
20
• 10GbE Combo Ports (RJ45 / SFP +)
4
• Console Port
RJ45 and Mini USB console ports for out-of-band CLI management
• Management Port
10/100 / 1000BASE-T RJ45 Ethernet for out-of-band IP management
• Alarm Port
RJ45
• USB Port
USB 2.0 Type A
• Switch Capacity
480 Gbps
• Max. forwarding Rate
357.12 Mpps
• Packet Buffer Memory
4 MBytes
• MAC Address Table
Up to 48K entries
• MTBF
TBD
• Heat Dissipation
557.94 BTU / hr
• Power Input
100 to 240 VAC, 50/60 Hz, 2A
• Max Power Consumption
159.8 W
• Standby Power Consumption
85.1 W
• Dimensions
441 x 380 x 44 mm
• Weight
7.6 kg (2 PSUs, 3 fan modules)
6.65 kg (1 PSU, 3 fan modules)
5.25 kg (no PSU or fan modules)
• Operating Temperature
-5 ° C to 50 ° C
• Storage Temperature
-40 ° C to 70 ° C
• Operating Humidity
10% to 95% RH
• Storage Humidity
5% to 95% RH
• Safety
cUL, CB, CE, CCC, BSMI
• EMI / EMC
CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
