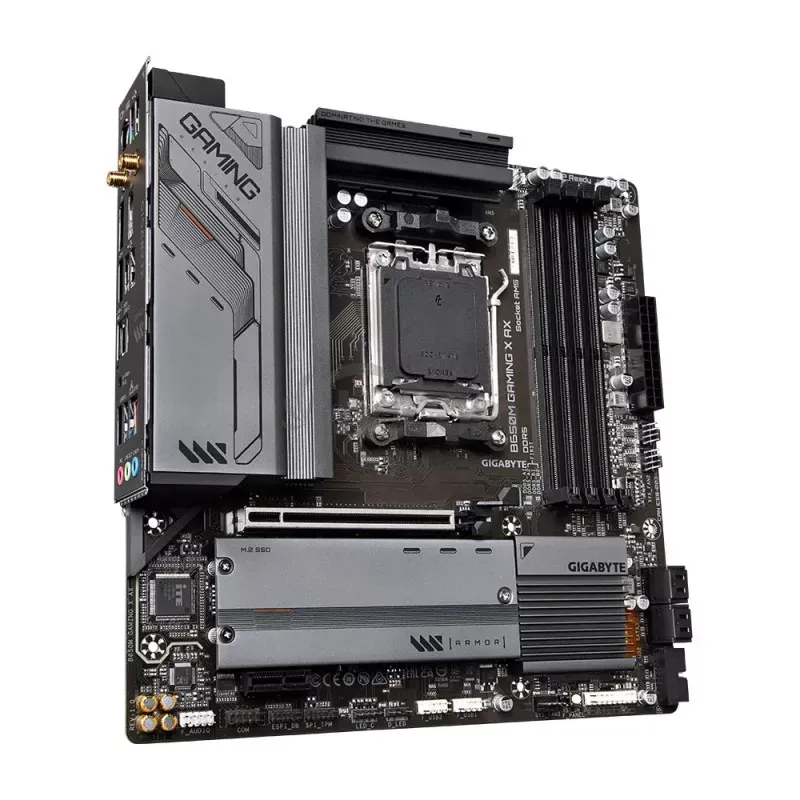

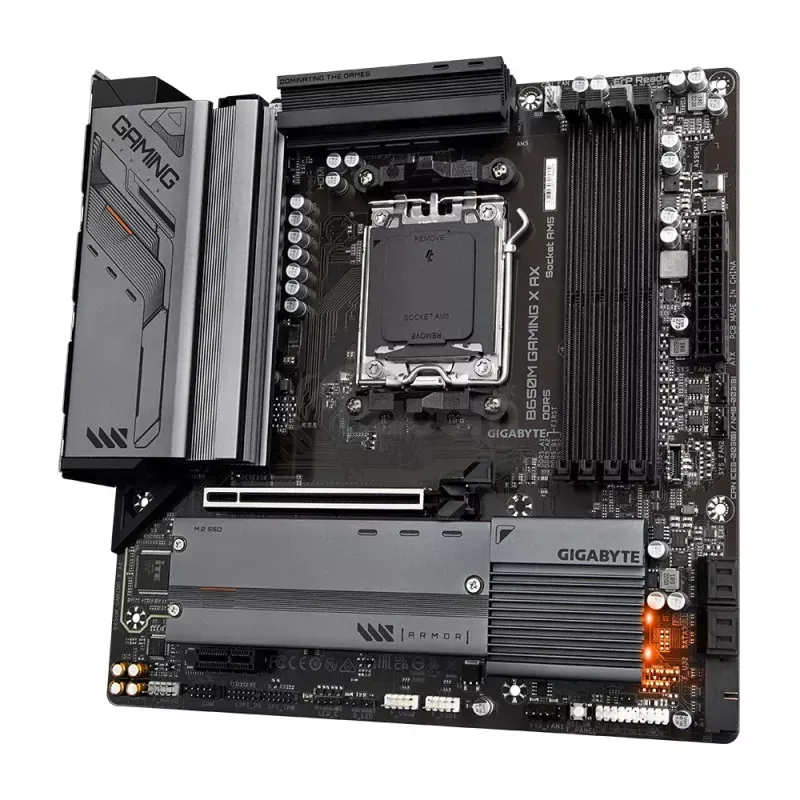

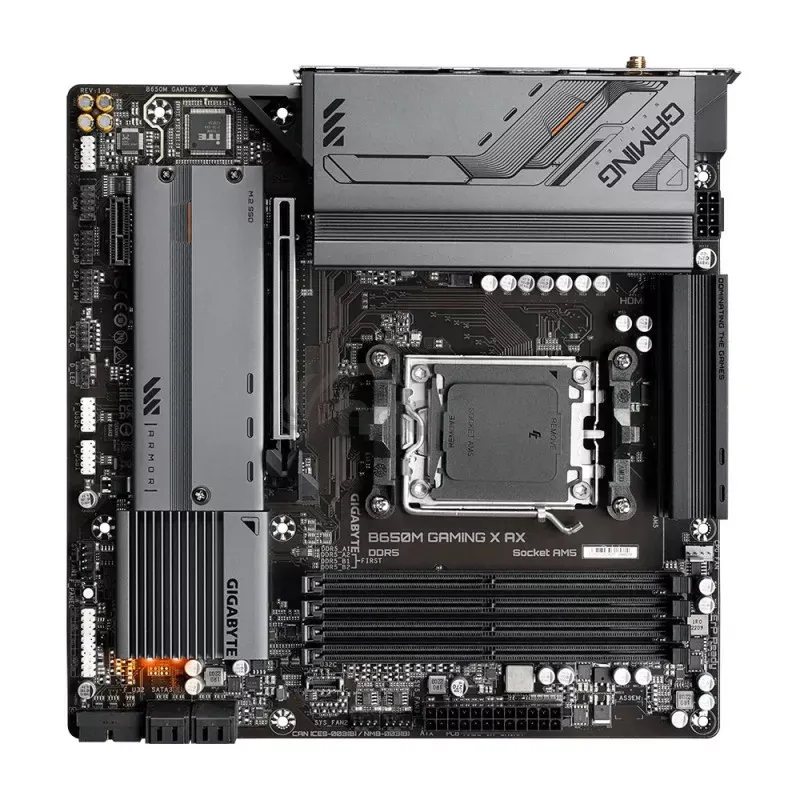

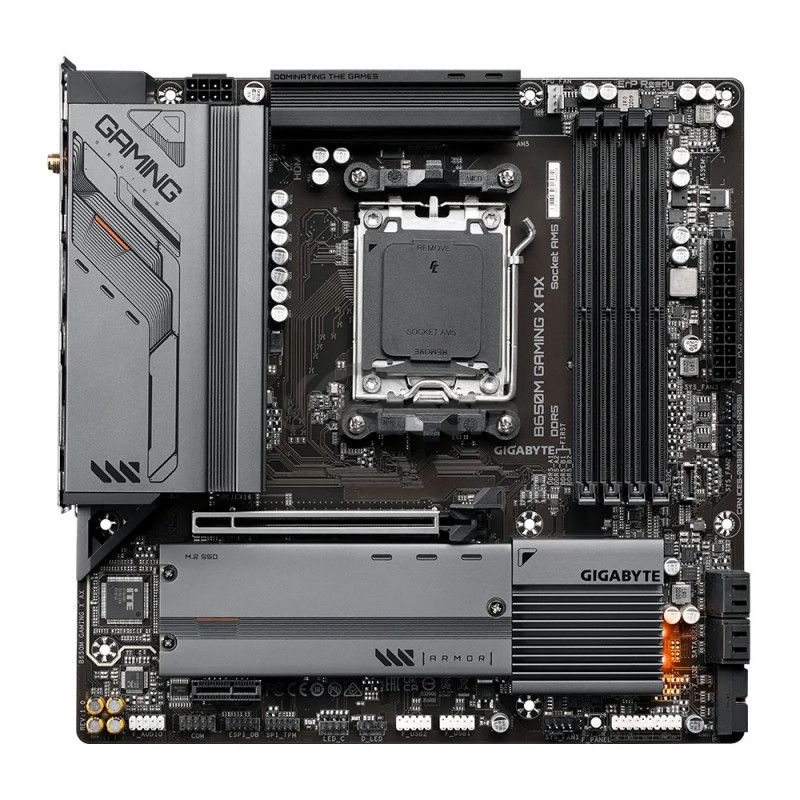

GIGABYTE B650 GAMING X AX B650M GAMING X AX

GIGABYTE B650 GAMING X AX B650M GAMING X AX

Chipset: AMD B650

Rozmerový formát: Micro ATX Form Factor; (24.4cm x 24.4cm)
Podpora pre procesory: AMD Ryzen 7000 Series Processors
Pätica procesora: AM5

Pozícia na pamäti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pre pamäte: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Max.veľkosť operačnej pamäte: 128 GB (32 GB single DIMM capacity)
Podpora pre pamäte typu: non-ECC, XMP

Grafická karta: (na základe procesora)
*2 x DisplayPorts 1.4, maximálne rozlíšenie 3840x2160@144 Hz
*1 x HDMI 2.1 port, maximálne rozlíšenie 4096x2160@60 Hz

Zvuková karta: Realtek Audio CODEC
2/4/5.1/7.1-channel

Sieťová karta:
*Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax
*Bluetooth 5.2

Rozširujúce sloty:
*1 x PCI Express slot x16, supporting PCIe 4.0 a bežiaci na x16 (PCIEX16)
*1 x PCI Express slot x1, supporting PCIe 3.0 and running at x1 (PCIEX1)

RAID radič: RAID 0, RAID 1, and RAID 10

SATA: 4 x SATA 6Gb/s konektory
M.2: 2 x M.2 Socket 3 konektory

USB:
* Interné:
*1 x Type-C header USB s USB 3.2 Gen 2 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
* Externé:
*1 x USB 3.2 Gen 2 Type-A port (red)
*2 x USB 3.2 Gen 1 ports
*1 port USB typu C, s USB 3.2 Gen 2 support
*4 x USB 2.0/1.1 ports

Interné porty:
*1 x 24-pin ATX main power connector
*1 x 8-pin ATX 12V power connector
*1 x CPU fan header
*3 x system fan headers
*1 x addressable LED strip header
*1 x RGB LED strip header
*2 x M.2 Socket 3 konektory
*4 x SATA 6Gb/s konektory
*1 x front panel header
*1 x front panel audio header
*1 x Type-C header USB s USB 3.2 Gen 2 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*1 x Trusted Platform Moduly hlavice (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1 x serial port header
*1 x reset button
*1 x reset jumper
*1 x Clear CMOS jumper

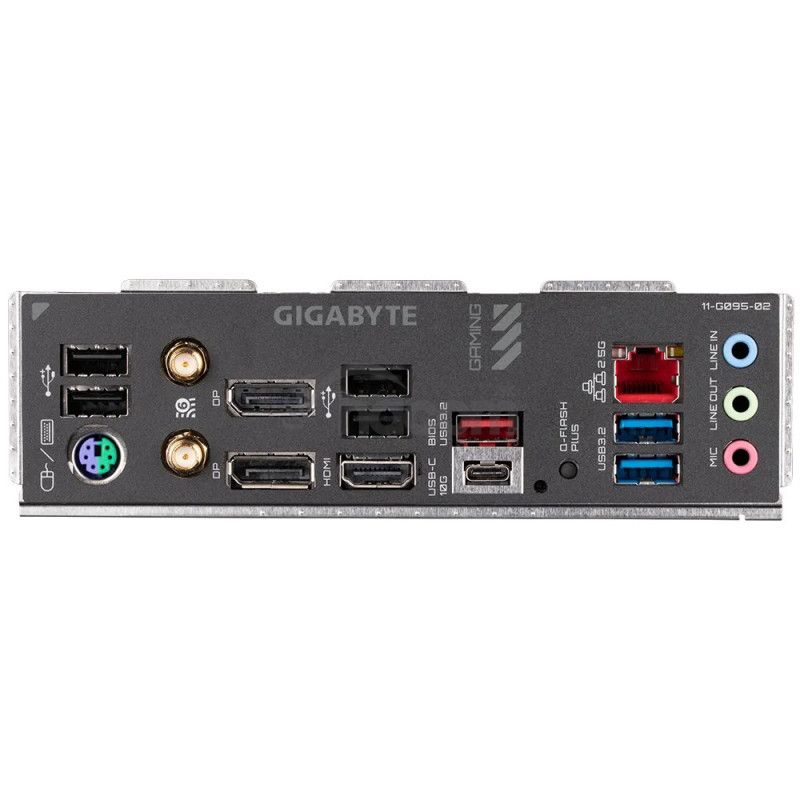

Externé porty:
*4 x USB 2.0/1.1 ports
*1 x PS/2 keyboard/mouse port
*2 x SMA antenna connectors (2T2R)
*2 x DisplayPorts
*1 x HDMI port
*1 x USB 3.2 Gen 2 Type-A port (red)
*1 port USB typu C, s USB 3.2 Gen 2 support
*1 x Q-Flash Plus button
*1 x RJ-45 port
*2 x USB 3.2 Gen 1 ports
*3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/B650M-GAMING-X-AX-rev-1x#kf
