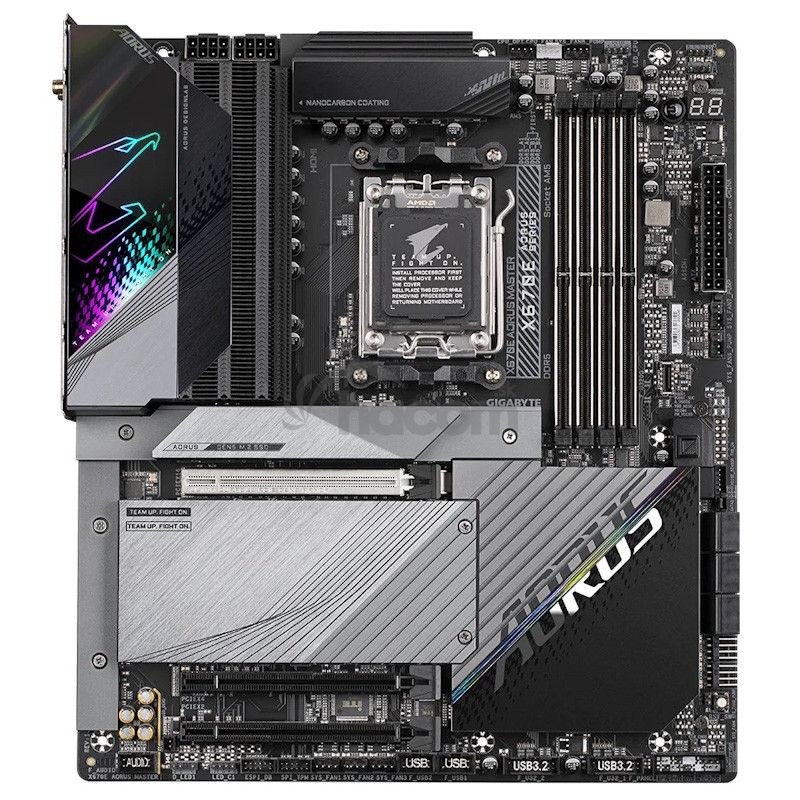

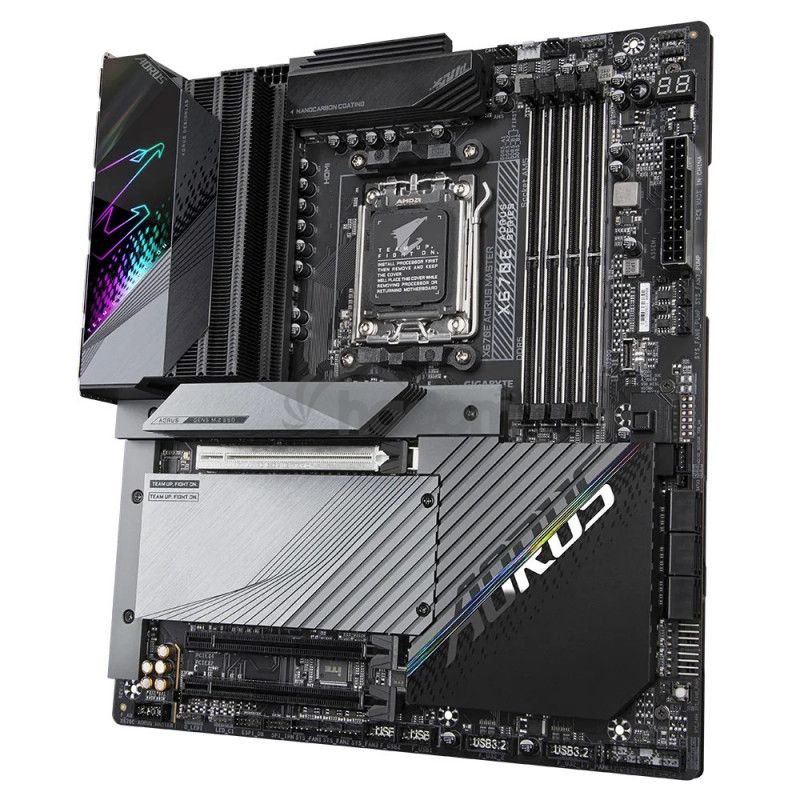

GIGABYTE X670E AORUS MASTER X670E AORUS MASTER

GIGABYTE X670E AORUS MASTER X670E AORUS MASTER

Chipset: AMD X670

Rozmerový formát: E-ATX Form Factor; (30.5cm x 26.9cm)
Podpora pre procesory: AMD Ryzen 7000 Series Processors
Pätica procesora: AM5

Pozícia na pamäti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pre pamäte: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
Max.veľkosť operačnej pamäte: 128 GB (32 GB single DIMM capacity)
Podpora pre pamäte typu: non-ECC, XMP

Grafická karta: (na základe procesora)
*1 x DisplayPort 1.4, maximálne rozlíšenie 3840x2160@144 Hz
*1 x USB Type-C port maximálne rozlíšenie 3840x2160@144 Hz
*1 x HDMI port, maximálne rozlíšenie 4096x2160@60 Hz

Zvuková karta: Realtek ALC1220-VB CODEC
*2/4/5.1/7.1-channel output
*Podpora S/PDIF Out

Sieťová karta:
*Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*Wi-Fi 6E AX210 a, b, g, n, ac, ax
*Bluetooth 5.3

Rozširujúce sloty:
*1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
*1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4
*1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2

RAID radič: RAID 0, RAID 1, RAID 10

SATA: 6 x SATA 6Gb/s konektory
M.2: 4 x M.2 Socket 3 konektory

USB:
* Interné:
*1 x Type-C header USB s USB 3.2 Gen 2x2 support
*2 x USB 3.2 Gen 1 headers
*2 x USB 2.0/1.1 headers

* Externé:
*1 x USB Type-C port (DisplayPort), s USB 3.2 Gen 2 support
*1 x USB Type-C port, s USB 3.2 Gen 2x2 support
*4 x USB 3.2 Gen 2 Type-A ports (red)
*4 x USB 3.2 Gen 1 ports
*2 x USB 2.0/1.1 ports

Interné porty:
*1 x 24-pin ATX main power connector
*2 x 8-pin ATX 12V power connectors
*1 x CPU fan header
*1 x water cooling CPU fan header
*4 x system fan headers
*4 x systém ventilátora/water cooling pump headers
*2 x addressable LED strip headers
*2 x RGB LED strip headers
*1 x CPU cooler LED strip/RGB LED strip header
*4 x M.2 Socket 3 konektory
*6 x SATA 6Gb/s konektory
*1 x front panel header
*1 x front panel audio header
*1 x Type-C header USB s USB 3.2 Gen 2x2 support
*2 x USB 3.2 Gen 1 headers
*2 x USB 2.0/1.1 headers
*1 x noise detection header
*1 x THB_U4 add-in card connector
*1 x Trusted Platform Moduly hlavice (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1 x power button
*1 x reset button
*1 x reset jumper
*1 x Clear CMOS jumper
*2 x temperature sensor headers

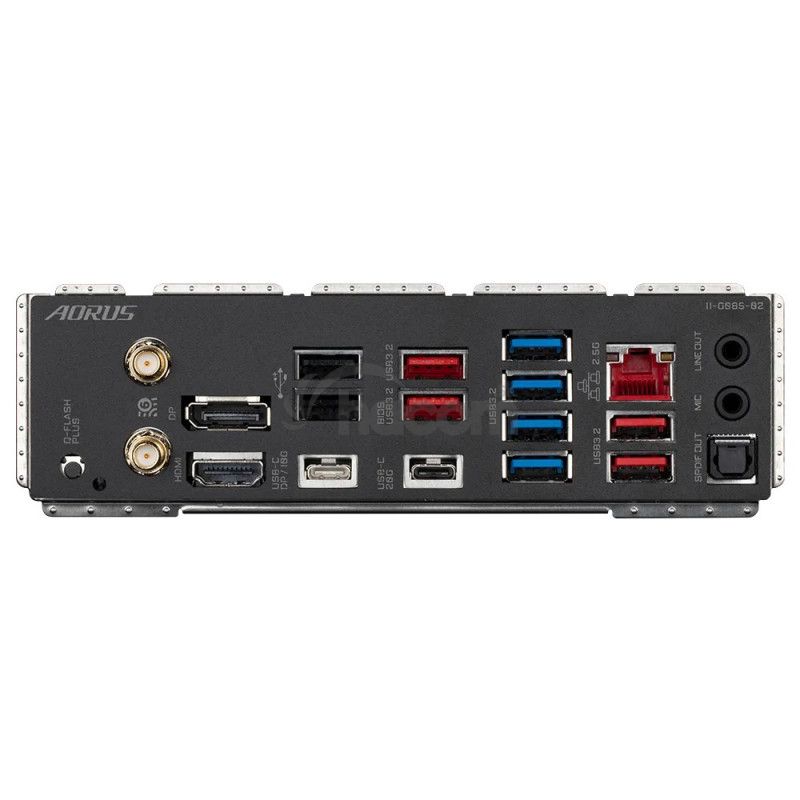

Externé porty:
*1 x Q-Flash Plus button
*2 x SMA antenna connectors (2T2R)
*1 x DisplayPort
*1 x HDMI port
*1 x USB Type-C port (DisplayPort), s USB 3.2 Gen 2 support
*1 x USB Type-C port, s USB 3.2 Gen 2x2 support
*4 x USB 3.2 Gen 2 Type-A ports (red)
*4 x USB 3.2 Gen 1 ports
*2 x USB 2.0/1.1 ports
*1 x RJ-45 port
*1 x optický S/PDIF Out connector
*2 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/X670E-AORUS-MASTER-rev-10#kf
