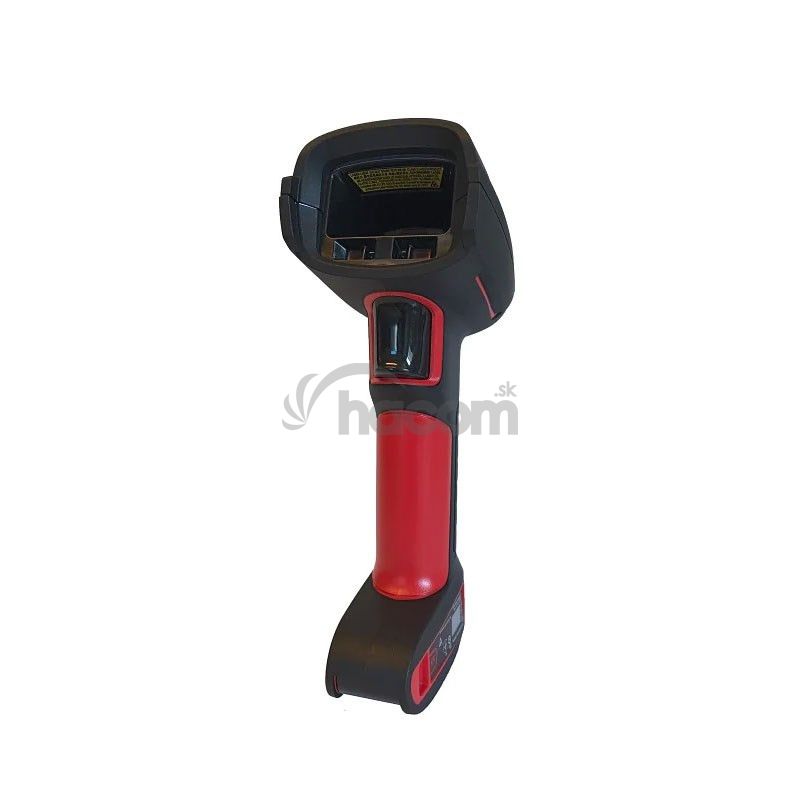

Honeywell Granit 1990i Standard Range, USB kit 1990ISR-3USB-R
MECHANICALDimensions (L x W x H): 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in)
Weight - Corded: 320 g (11.3 oz)
User Indicators: Good Decode LEDs, Beeper (adjustable tone and volume), Vibration (adjustable)
ELECTRICAL
Input Voltage: 4.0 VDC to 5.5 VDC
Operating Power - Corded: 2.35 W (470 mA @ 5 VDC)
Standby Power - Corded: 0.5 W (100 mA @ 5 VDC)
Host System Interfaces: USB, Keyboard Wedge, RS-232 TTL
ENVIRONMENTAL
Operating Temperature - Corded: -30 °C až 50 °C (-22 °F až 122 °F)
Storage Temperature: od -40 do 70 °C (-40 do 158 °F)
Humidity: Up to 95% relatívnej humidity, non-condensing
Drop:
* 2 m (6.5 ft): 50 kvapiek od -30 °C do 50 °C (-22 °F do 122 °F), uncontrolled RH
* 2.4 m (8 ft): 20 drops pri 25°C (77°F), 55% RH
* 3 m (10 ft): MIL-STD-810G, 25 ° C (77 ° F), 55% RH
Tumble: 7,000 1 m (3.3 ft) tumbles
Environmental Sealing: IP67 a IP65
Light Levels: 0 až 100,000 lux (9,290 foot-candles)
ESD: ±20 kV air discharge, ±8 kV contact discharge
SCAN PERFORMANCE
Scan Pattern: Area Imager (1280 x 800 pixel array)
Motion Tolerancia: Up to 4500 mm/s (177 in/s)
Scan Angle: Horizontál: 40°, Vertical: 30°
Print Contrast: 20% minimum reflectance difference
Roll, Pitch, Skew: -360 °, 45 °, 65 °
Decode Capabilities: Reads štandard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies
Warranty - Scanner: Three-year factory warranty
Warranty - Battery Pack: One-year factory warranty
Parametre
| Hmotnosť | 0,562 kg |
|---|
