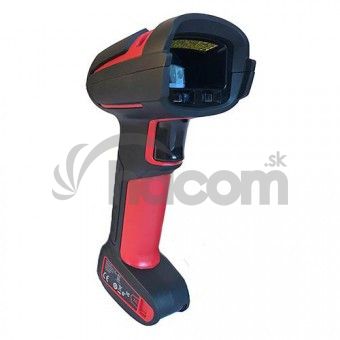

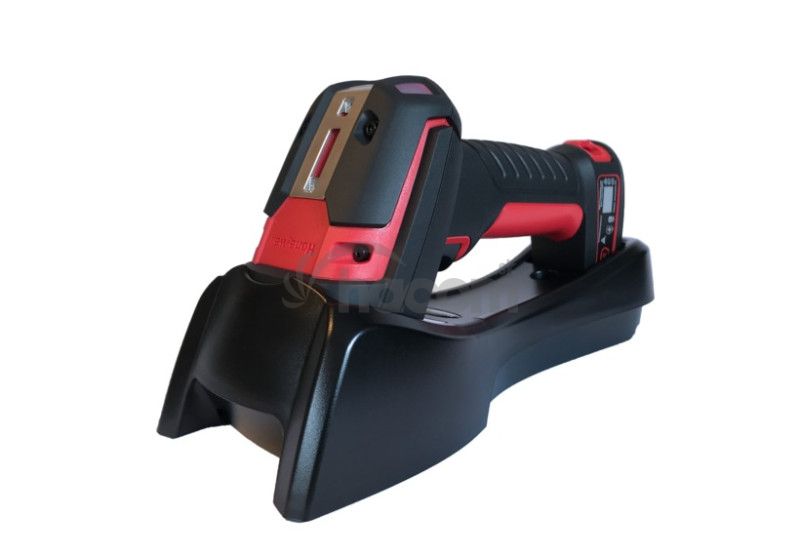

Honeywell Granit 1991 Flex Range - BT, RS232 kit 1991IXR-3SER-5-R

Honeywell Granit 1991 Flex Range - BT, RS232 kit 1991IXR-3SER-5-R

MECHANICAL

Dimensions - Scanner (L x W x H): 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in)
Dimensions - Base (L x W x H): 245 mm x 102 mm x 60 mm (9.6 in x 4.0 in x 2.4 in)
Weight - Cordless: 405 g (14.3 oz)

WIRELESS

Rádio/Range: 2.4 GHz (ISM Band) Adaptívna Frequency Hopping Bluetooth® v4.2; Class 1: 100 m (330 ft) line of sight

POWER OPTIONS

Battery: 2450 mAh Li-ion minimum
Počet skenov: Up to 50,000 scans per charge
Expected Duration of Operation: 14 hodín (1 scan per second)
User Indicators: Good Decode LEDs, Beeper (adjustable tone and volume), Vibration (adjustable), Bluetooth® connectivity, Battery status

ELECTRICAL

Input Voltage: 4.0 VDC to 5.5 VDC
Operating Power - Cordless: 5 W (1000 mA @ 5 VDC)
Standby Power - Cordless (non-charging power): 0.6 W (120 mA @ 5 VDC)
Host System Interfaces: USB, Keyboard Wedge, RS-232 TTL

ENVIRONMENTAL

Operating Temperature*: -20°C až 50°C (-4°F až 122°F)
Storage Temperature: od -40 do 70 °C (-40 do 158 °F)
Humidity: Up to 95% relatívnej humidity, non-condensing
Drop:
* 2 m (6.5 ft): 50 kvapiek od -30 °C do 50 °C (-22 °F do 122 °F), uncontrolled RH
* 2.4 m (8 ft): 20 drops pri 25°C (77°F), 55% RH
* 3 m (10 ft): MIL-STD-810G, 25 ° C (77 ° F), 55% RH
Tumble: 7,000 1 m (3.3 ft) tumbles
Environmental Sealing - Scanner: IP67 a IP65
Environmental Sealing - Charge/Communication Base: IP51
Light Levels: 0 až 100,000 lux (9,290 foot-candles)
ESD: ±20 kV air discharge, ±8 kV contact discharge

SCAN PERFORMANCE

Scan Pattern: Area Imager (1280 x 800 pixel array)
Motion Tolerancia: Up to 4500 mm/s (177 in/s)
Scan Angle: Horizontál: 40°, Vertical: 30°
Print Contrast: 20% minimum reflectance difference
Roll, Pitch, Skew: -360 °, 45 °, 65 °
Decode Capabilities: Reads štandard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies
Warranty - Scanner: Three-year factory warranty
Warranty - Battery Pack: One-year factory warranty
