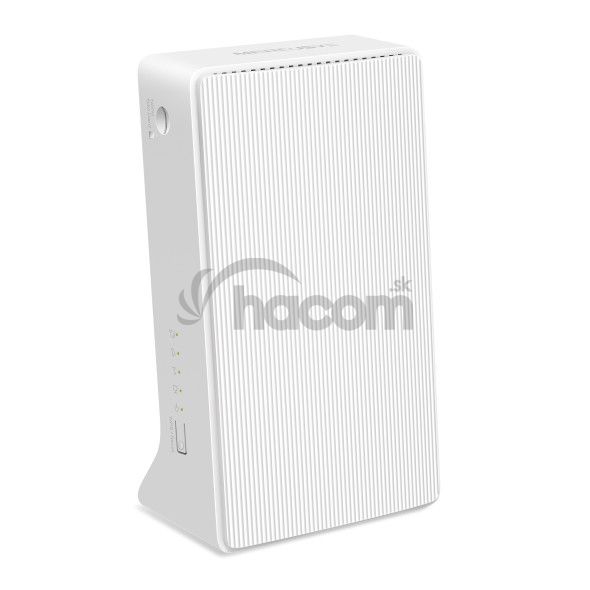

Mercusys MB130-4G
AC1200 Wireless Dual Band 4G LTE Router

Functions
4G network

*Enjoy the 4G LTE download speeds up to 150 Mbps.

Plug a SIM karta a hranie

*No configurations needed, kompatibility SIM kariet sú zahrnuté v rokoch testov.

Dual Band 1200 Mbps WiFi

*Fast WiFi rýchlosťou až 300 Mbps na 2.4 GHz Band a 867 Mbps na 5 GHz Band.

Simultaneous Connection

*Share prístup k internetu s 32 Wi-Fi zariadeniami.

External Antennas Ports

*Plug in your 4G/3G Antennas na šírenie siete Network Signal.

Wi-Fi router mode

*Plug kábla Ethernet cez LAN/WAN port pre flexibilný prístup, ak nie môžete dostať a 4G pripojenie.

Specifications

Wireless
Wireless Standards
*IEEE 802.11ac/a/b/g/n
Frequency
*5 GHz, 2.4 GHz
WiFi Speeds
*867 Mbps at 5 GHz
*300 Mbps at 2.4 GHz
Receptión Sensitivity
*11g 6Mbps: -95dBm
*11g 54Mbps: -77dBm
*11n HT20 MCS7: -74dBm
*11n HT40 MCS7: -71dBm
*11a 6Mbps: -92dBm
*11a 54Mbps: -75dBm
*11ac VHT20 MCS8: -70dBm
*11ac VHT40 MCS9: -65dBm
*11ac VHT80 MCS9: -61dBm
Transmission Power
*2.4 GHz < 20dBm (EIRP)
*5 GHz < 23dBm (EIRP)
Wireless Security
*WPA-PSK / WPA2-PSK
Wireless Functions
*Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless, Statistics
Hardvér
Dimensions
*95×61.05×165.97 mm
Interfaces
*1× 10/100Mbps LAN/WAN Port
*1× 10/100Mbps LAN Port
*2× 4G/3G External Antenna Ports
*1× Nano SIM Card Slot
Button
*WPS/Reset Button
Ethernet Ports
*1× 10/100 Mbps LAN/WAN Port + 1× 10/100 Mbps LAN
Network Type
*EÚ:
*FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
*TDD-LTE: B38/B40 (2600/2300 MHz)
*HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
Softvér
DHCP
*Server
