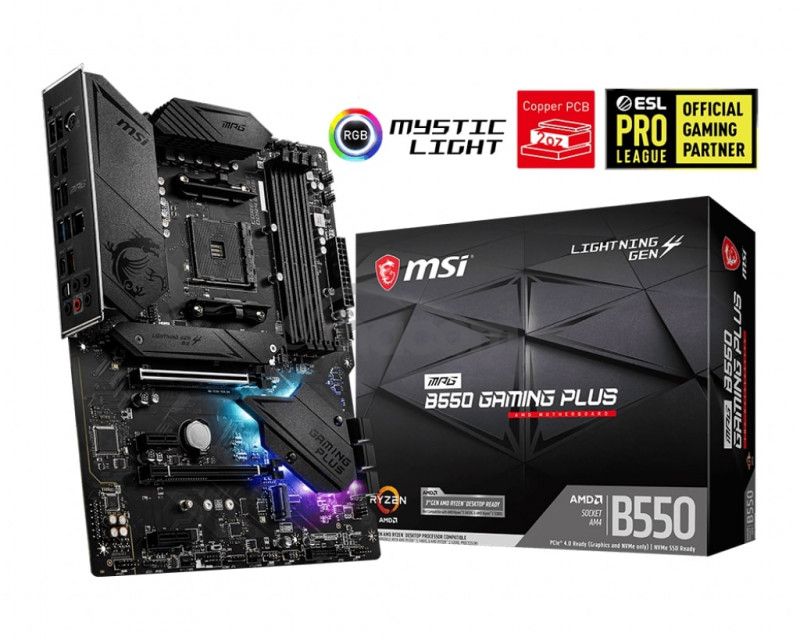

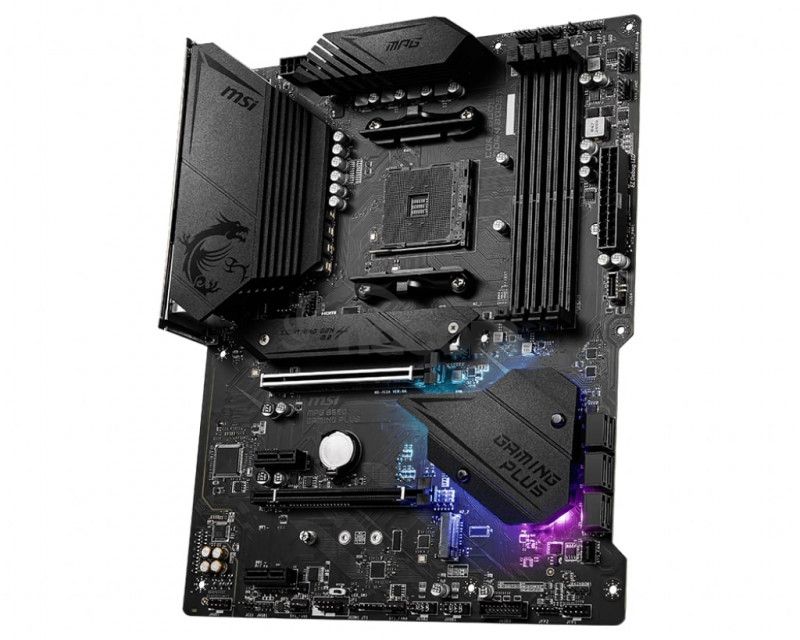

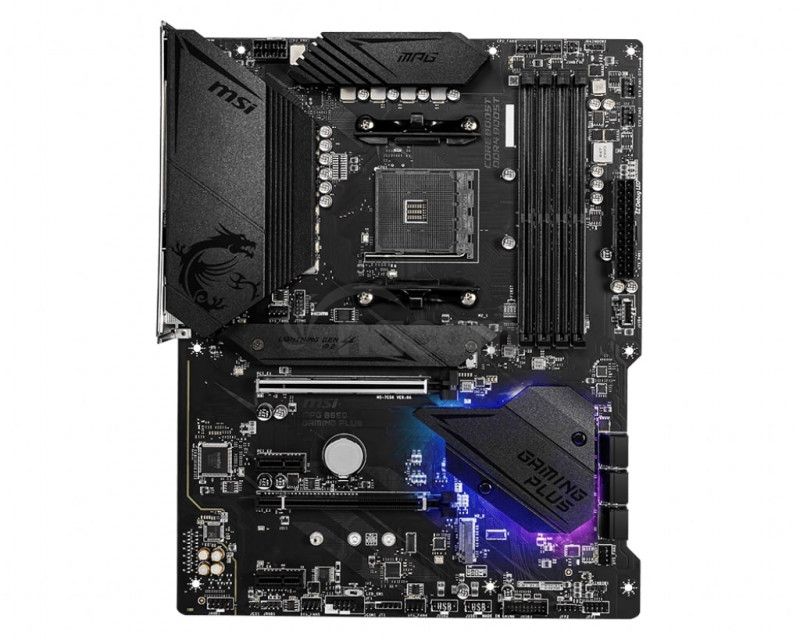

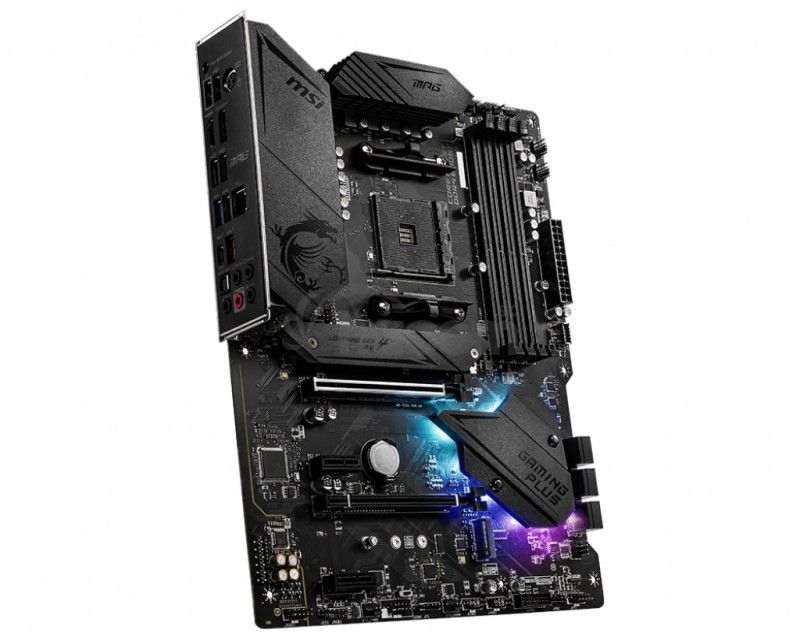

MSI MPG B550 GAMING PLUS MPG B550 GAMING PLUS

MSI MPG B550 GAMING PLUS MPG B550 GAMING PLUS

Chipset: AMD B550

Rozmerový formát: Formát ATX (305 mm x 244 mm)
Podpora pre procesory: 3rd Gen AMD Ryzen ™ processors, and future AMD Ryzen ™ processors with BIOS update
Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 SDRAM
Podpora pre pamäte:
* Supports DDR4 SDRAM 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz by JEDEC
* Supports DDR4 SDRAM 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266 / 4400+ MHz by A-XMP OC MODE
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4 SDRAM
* Dual channel memory architecture
* Supports non-ECC UDIMM memory
* Supports ECC UDIMM memory (non-ECC mode)
* Supports un-buffered memory

Grafická karta: na základe procesora
* 1x HDMI port, supports a maximum resolution of 4096x2160 @ 24Hz
* 1x DisplayPort, supports a maximum resolution of 4096x2160 @ 60Hz

Multi GPU:
* Supports 2-Way AMD CrossFire ™ Technology

Zvuková karta:
* Realtek® ALC892 Codec

Sieťová karta:
* 1x Realtek® 8111H Gigabit LAN controller

RAID radič:
* Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Rozširujúce sloty:
* 1x PCIe 4.0 / 3.0 x16 slot (PCI_E1)
* 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
* 2x PCIe 3.0 x1 slots

SATA:
* 6x SATA 6Gb / s ports

M.2:
* 2x M.2 slots (Key M)

USB:
* Zadné USB porty (celkom 8)
* 4x USB 2.0 ports
* 1x USB 3.2 Gen 2 10Gbps Type-C port
* 1x USB 3.2 Gen 2 10Gbps port
* 2x USB 3.2 Gen 1 5Gbps ports
* Predné USB porty (celkom 7)
* 1x USB 3.2 Gen 1 5Gbps Type-C port
* 2x USB 3.2 Gen 1 5Gbps ports
* 4x USB 2.0 ports

Interné porty:
* 1x 24-pin ATX main power connector
* 1x 8-pin ATX 12V power connector
* 6x SATA 6Gb / s connectors
* 2x M.2 slots (M-Key)
* 1x USB 3.2 Gen 1 5Gbps Type-C port
* 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
* 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
* 1x 4-pin CPU fan connector
* 1x 4-pin water-pump fan connector
* 6x 4-pin system fan connectors
* 1x Front panel audio connector
* 2x System panel connectors
* 1x Chassis Intrusion connector
* 1x 4-pin RGB LED connector
* 2x 3-pin RAINBOW LED connectors
* 1x TPM module connector
* 1x Clear CMOS jumper

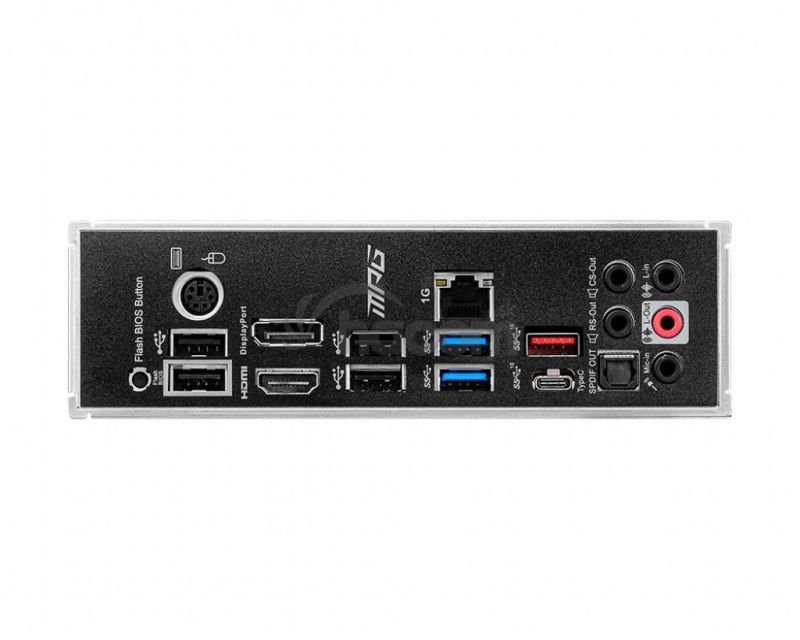

Externé porty:
* PS / 2 Combo Port
* DisplayPort
* 1x LAN Port
* 1x USB 3.2 Gen 2 10Gbps (Type-A)
* HD Audio Connectors
* Flash BIOS Button
* 4x USB 2.0
* HDMI
* 2x USB 3.2 Gen 1 5Gbps (Type-A)
* 1x USB 3.2 Gen 2 10Gbps (Type-C)
* Optical S / PDIF OUT

Stránka výrobca: https://www.msi.com/Motherboard/MPG-B550-GAMING-PLUS
