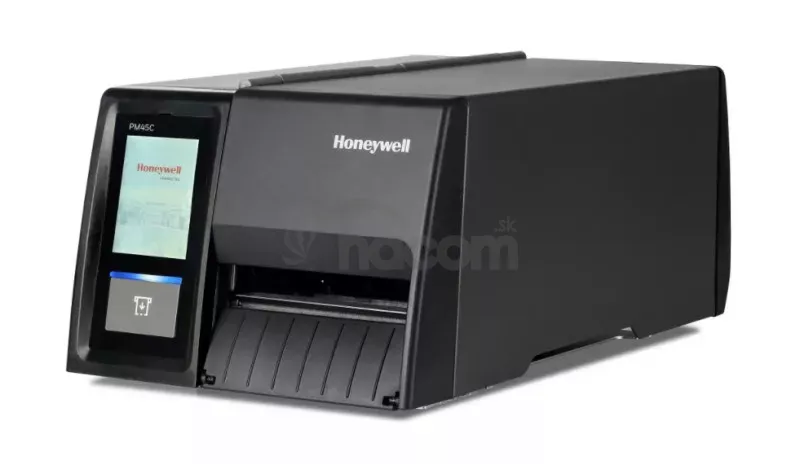

PM45C - FullTouch, 203 dpi, BT, Wi-Fi, LTS, rewinder PM45CA1200030210

PM45C - FullTouch, 203 dpi, BT, Wi-Fi, LTS, rewinder PM45CA1200030210

PHYSICAL CHARACTERISTICS

PM45:
L x H x W: 483 mm x 295 mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)
Weight: 13.2 kg (29.1lbs)
PM45c: L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)
Weight: 12.6 kg (27.7 lbs)
PM45c with Mega Door
L x H x W: 500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)
Weight: 12.8 kg (28.0 lbs)

PM45/45C PRINT SPECIFICATIONS

Max.Width at 203 dpi: 108 mm (4.25 in)
Max.Width at 300 dpi: 105.7 mm (4.17 in)
Max.Width na 406 dpi: 104 (4.09 in)
Max.Width at 600 dpi: 105.6 mm (4.16 in)
Max.length pri 203 dpi: 4.8 m (189 in)
Max.length pri 300 dpi: 2.2m (85in)
Max.length pri 406 dpi: 1.2 m (47.2 in)
Max.length pri 600 dpi: 0.55m (22in)

WIRELESS CONNECTIVITY

WLAN: IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1x1 SISO
Additional WLAN Features: 802.11d/e/h/ i/k/r
Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise),
Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, FAST
Bluetooth: V5.0 Bluetooth a BLE Supported
WWAN: WWAN Radio
CAT4 LTE Modem
MIMO - Main/Rx-diversity
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8
Slot: Micro Sim Card slot x 1

PRINT SPEED

At 203 dpi: 50-350 mm/s (2-14ips)
At 300 dpi: 50-300 mm/s (2-12ips)
At 406 dpi: 50-250 mm/s (2-10ips)
At 600 dpi: 50-150 mm/s (2-6ips)

PRINT RESOLUTION

At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
At 406 dpi: 16 dots/mm
At 600 dpi: 23.6 dots/mm

PM 45/45C MEDIA SPECIFICATION

Type: Labels and Tags and Linered media
Max./Min.Width: 114/19 mm (4.5/0.75 in)
Configuration: Roll-fed alebo fan-fold
Media Sensing: Gap, Notch, Black mark, Continous, Media low, Media end
Other sensing: Label Take sensing, Ribbon Low/End sensing, Head lift sensing
Label Roll Max.Diameter: 152 mm (6 in) pre PM45c long door models; 213 mm (8.38 in) pre všetky ostatné modely PM45/PM45c
Label Roll Core ID: 38-76 mm (1.5-3 in)

RIBBON SPECIFICATION

Type: Wax, mid-range and resin

INTERFACES

Štandard:
*Ethernet 10/100/1000 Mbps
*USB 2.0 Hosť (x2 PM45, x1 PM45C)
*USB 2.0 Device RS-232, až 115.2 KB/s
Optional:
*Parallel Interface (IEEE 1284)
*Industrial interface - jeden digitálny vstup/východ, štyri analógové relácie, jeden RS232/422/485 port
*Applicator Interface - Ext Error 8-pin miniDIN, Z-style štandard DB15 port, S-style štandard 14-pin Centronics, Ext Power 6-pin mini-DIN
*RFID - Supports EPC Class 1 Gen2, 18000-6C. Rádio configured to kompletne s miestnymi RFID reguláciami UHF vrátane FCC a ETSI. Contact local representative for availability in particular región.
Supported Network Protocols:
*TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported - over UDP/IP (private enterprise MIB included), SMTP Supports IPv4 and IPv6

SOFTVÉR

Printer Command Languages: Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled pre SAP AII a Oracle WMS, PDF, C#
Applications/Drivers: InterDriver Windows® printer driver, Linux CUPS driver, Honeywell Device Types for SAP, Honeywell label design and print package
Smart Printing Languages: C# pre tlačiarní: Honeywell Smart Printing Developer Resource Kit; write apps with .NET- compatible development environments.
Configuration and Device Management Support (optional): OpIntel - PrintSet 5 pre printer configuration; sophisticated web interface pre configuration, upgrades and 1:1 management; Print Set MC (Android™ a Apple® iOS) pre printer configuration cez Bluetooth LE only

BARCODES/FONTS/GRAPHICS

Barcode Symbologies: All major 1D a 2D symbologies sú podporované
Štandardy Supported: UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Lap

FONTS

Monotype font engine
Non-Latin fonts available through WTLE

GRAPHICS

Supports PCX, PNG, GIFand BMP formáty súborov.
Ostatné formáty podporované Label Generation Tools.

MEMORY

Štandard: 512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22)
User Partitioning: 256MB

USER INTERFÁCIE

Full Touch UI, Icon UI

USER INTERFÁCIE LANGUAGES

On Full Touch LCD a Web Interface: English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Thai, Japanese, Simplified and Traditional Chinese

POWER SUPPLY

AC Voltage: 100 až 240 V AC, 50 až 60 Hz
Power Consumption: Standby 9.6W; Peak 270 W (24 V), Peak 145 W (33 V)

OPERATING ENVIRONMENT

Ambient Operating Temperature: +5°C až +40°C (+41°F až +104°F)
Storage Temperature: -20 °C do +70 °C (-4 °F do +152 °F)
Operating Humidity: 20 až 85% non-condensing
Storage Humidity: 5 až 90% non-condensing

REGULATORY APPROVALS

RoHS Compliant, CE (EN55032 Class B*), FCC Class B*, Energy Star 3.0 Qualified For more countries compliant, contact our local sales office.
