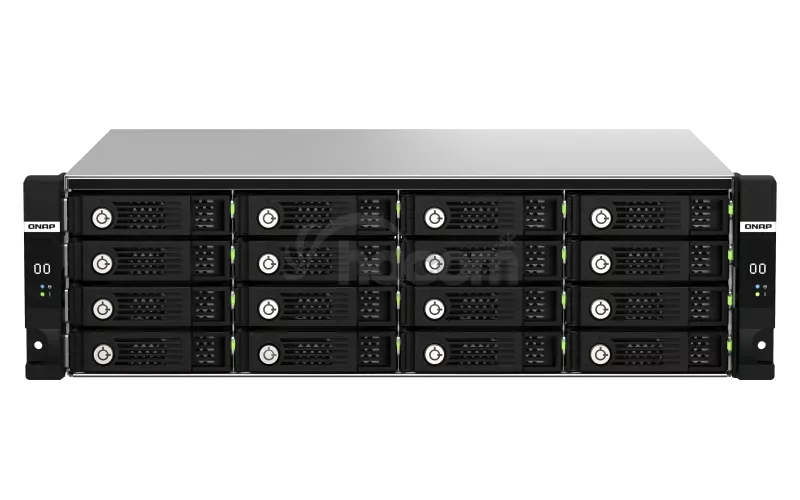

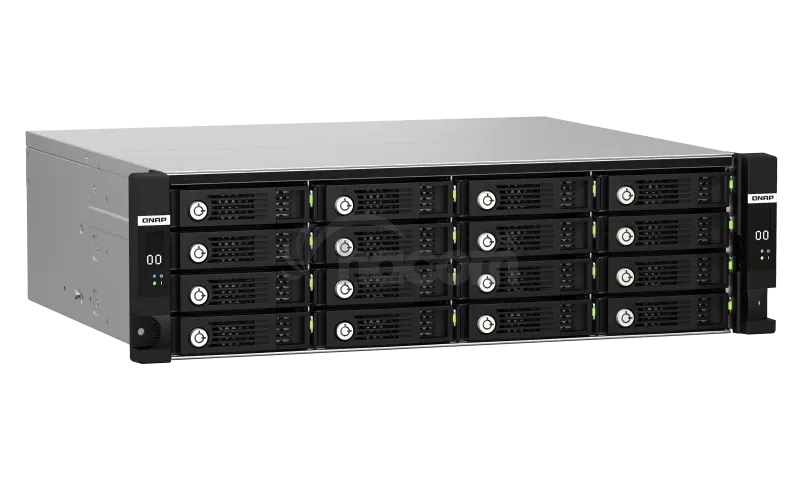

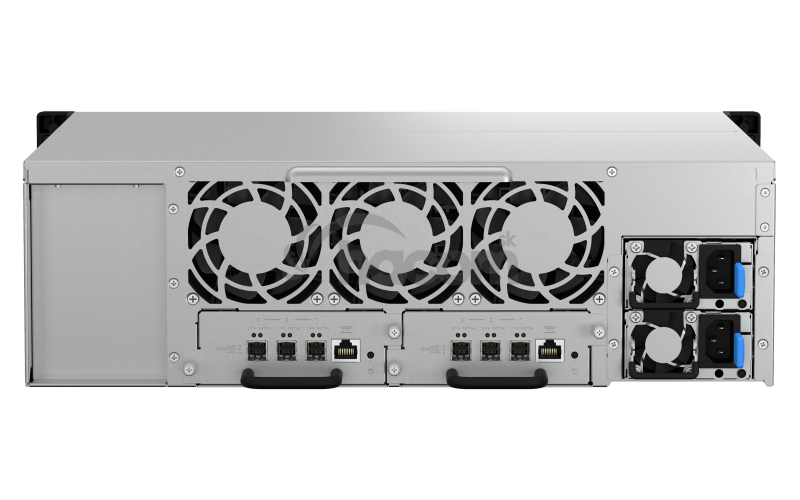

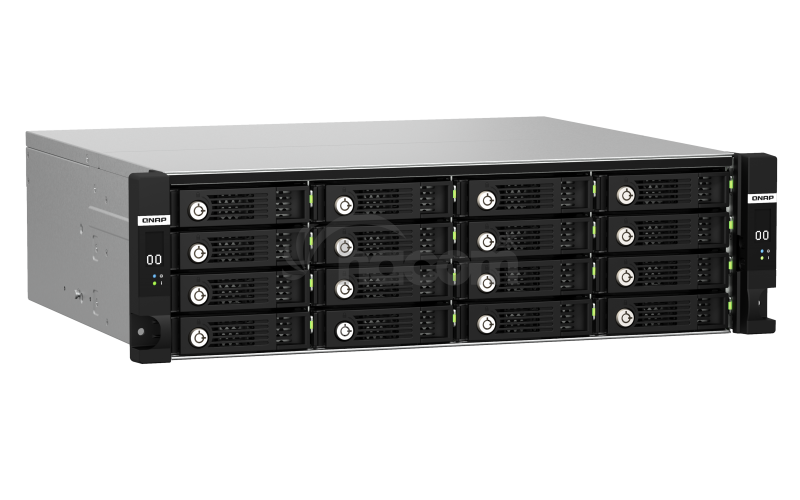

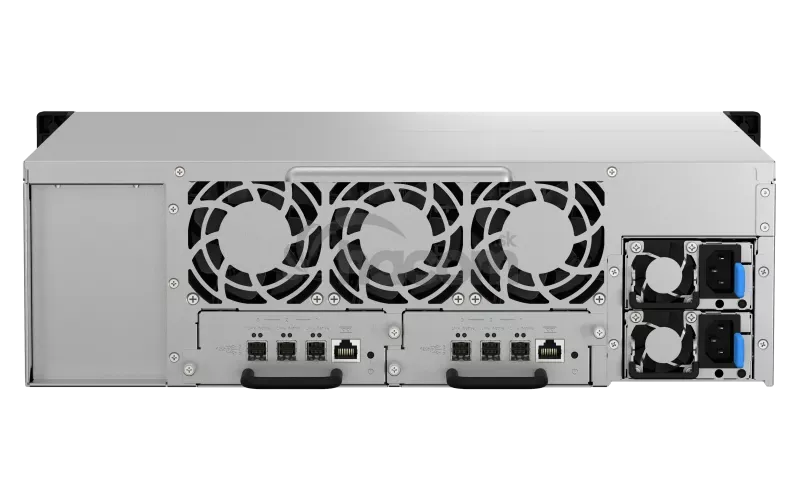

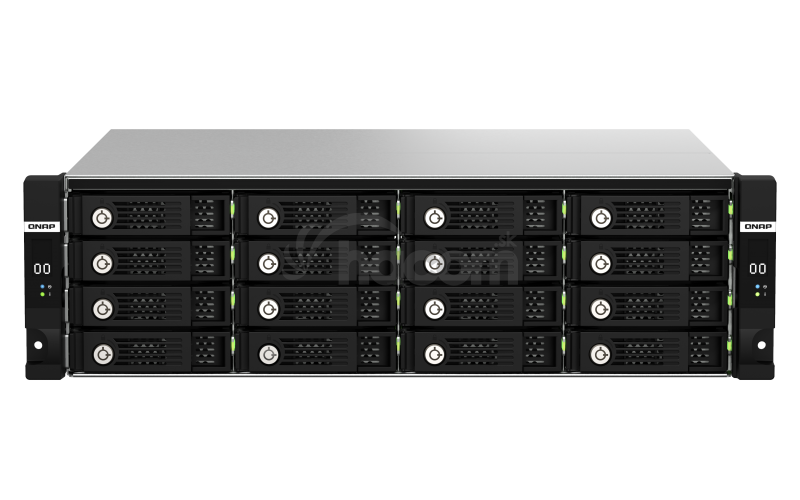

QNAP TL-R1620Sdc - 16 pozičné 3U SAS 12Gbps JBOD dual controller rozširovacie jednotka TL-R1620Sdc
16 x 3.5-inch SAS 12GB / s, SAS / SATA 6Gb / sDrive Compatibility 3.5-inch Bays
* 3.5-inch SAS hard disk drives
* 2.5-inch SAS hard disk drives
* 2.5-inch SAS solid state drives
Hot-swappable: Yes
Gigabit Ethernet Port (RJ45): 1
Form Factor: 3U Rackmount
Hosť Interface: 3 x 12GB / s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) for each controller
LED Indicators: HDD 1-16, Status, Power, Fan, Temperature, SAS connector status
Button: Power, OLED
Dimensions (HxWxD): 131.3 × 482.2 × 425.3 mm
Max. number of HDDs / SSDs supported: 16
Hard Drive Type: 3.5 "or 2.5" SAS12Gb / s 6Gb / s drives
Operating temperature: 0 - 40 ° C (32 ° F - 104 ° F)
Storage Temperature: -20 - 70 ° C (-4 ° F - 158 ° F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27 ° C (80.6 ° F)
Power Supply Unit: 550W (x2), 100-240V
Fan: 3 x 80mm, 12VDC
System Warning: Buzzer
Management: Managed via NAS QES OS and JBOD Manager for Windows
