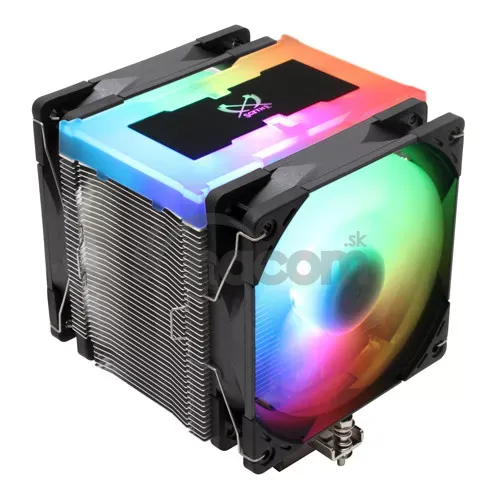

SCYTHE SCMG-5102AR Mugen 5 ARGB Plus CPU Cooler SCMG-5102AR

SCYTHE SCMG-5102AR Mugen 5 ARGB Plus CPU Cooler SCMG-5102AR

Mugen 5 ARGB PLUS

Chladič CPU Mugen 5 A-RGB nielen ponúka maximálny výkon z opakovane ocenenej platformy Mugen 5, ale tiež zaujme úplným adresovateľným osvetlením RGB. Dva ventilátory PWM Kaze Flex 120 A-RGB PWM, každý s 1 500 ot / min, dosahujú v režime push-pull výrazne zvýšeného prietoku vzduchu. Samostatná kvapalinová ložiská (Sealed Precision FDB) zaručujú životnosť až 120 000 hodín. Ventilátory a horná doska sú úplne osvetlené adresovateľnými LED RGB, ktoré ponúkajú dychberúci vizuálnu prízvuk s neustále sa meniacimi svetelnými efektmi. LED diódy možno ovládať priamo pomocou 3kolíkových 5V ovládačov od rôznych výrobcov. Alternatívne je tiež zahrnutý kompaktný ovládač pre interné inštaláciu.

The Mugen 5 A-RGB CPU-Cooler not only gets the maximum performance out of the repeatedly Awarded Mugen 5 platform, but also impresses with complete addressable RGB lighting. Two Kaze Flex 120 A-RGB PWM fans, each with 1,500 rpm, achieve a greatly increased air flow in push-pull mode. The self-contained fluid bearings (Sealed Precision FDB) guarantee a lifespan of up to 120,000 hours. The fans and top plate are completely illuminated by addressable RGB LEDs, which offer a breathtaking visual accent with continuously changing light effects. The LEDs can be controlled directly via 3-pin 5V controls from various manufacturers. Alternatively, a compact controller for internal installation is also included.

Model Name:

Mugen 5 ARGB PLUS

Model Number:
SCMG-5102AR

EAN: 4571225057606
UPC: 812623021375

Compatibility:
Intel®:
socket LGA775
socket LGA1150
socket LGA1151
socket LGA1155
socket LGA1156
socket LGA1366
Socket LGA2011 / 2011-v3 (Square ILM)
socket LGA2066

AMD®:
socket AM2
Socket AM2 +
socket AM3
Socket AM3 +
socket AM4
socket FM1
socket FM2
Socket FM2 +


Overall Dimensions WxHxD:
136 x 134 x 157.5 mm / 5,35 x 5,28 x 6,20 in (including fan - more details)

Weight:
1060 g / 35.84 oz (incl. Fans)

accessory:
Mounting parts for Intel and AMD sockets, thermal grease, Adjustalbe RGB fan, Adjustable RGB top cover, Adjustable RGB Controllerfan clips, manual

Baseplate Material / Heatpipes:
Nickel-plated copper (additional information)

Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.


Fan Specifications

Model Name:
Kaze Flex 120 ARGB PWM

Dimensions:
120 x 120 x 27 mm / 4,72 x 4,72 x 1,06 inch

Noise Level:
4,0 ~ 29,75 dBA

Air Flow:
16,6 ~ 66,47 CFM / 28,20 ~ 112,93 m3 / h

Fan Speed:
300 (± 200 rpm) ~ 1.500 rpm (± 10%) (PWM-controlled)

Static Pressure:
0,75 ~ 16,38 Pa / 0,0762 ~ 1,67 mmH2O

Bearing Type:
Sealed Precision FDB

Voltage:
12V

MTTF:
120.000 Hours (25 ° C)

Addressable RGB Design
Based on the best selling Mugen 5 CPU Cooler, the addressable RGB edition is now available. By adding second fan for push-pull configuration, the airflow is increased which resutls in an enhanced heat dissipation. The dual 120 mm ARGB fans and the eye-catching top cover can either be managed by Motherboards with ARGB headers or by the included ACT-1000L ARGB Controller. The Mugen 5 ARGB Plus provides not only top-tier performance but also vivid and farebné lighting effects for your system.

ARGB Controller ACT-1000L
The ACT-1000ARL is an easy-to-use ARGB controller for mainboards without a corresponding header. The controller has 14 modes of lighting effects as well as 5 speed settings, which can be selected by a single button. Alternatively a 2-pin header can be used to connect an external switch like the reset button. Two magnets allow the controller to be securely placed insinde the PC case.

Kaze Flex 120 ARGB PWM Fan
The Kaze Flex 120 ARGB PWM is the first Scythe fan with addressable RGB LEDs. Eight individually controllable LEDs Illuminate the translucent fan blades and enable complex color effects and gradients. The self-contained fluid bearing (Sealed Precision FDB) significantly reduces the friction that occurs during operation and thus achieves a lifespan of up to 120,000 hours, as well as a high running Smoothness. The rubber decouplers, which are kept entirely in black, fit optickým into the overall design and reduce the transmission of any Vibrations.

Asymmetrical Design
Thanks to gently sloped heatpipes, the heat sink is not located directly above the bottom plate, but slightly offset to the rear. This asymmetrical dizajn, in combination with a recess on the back of the heatsink, allows for Unrestricted use of the memory banks. The high-quality cooper heatpipes and base-plate are completely nickel-plated.

HPMS III Mounting System
The cooler features the Proven and easy-to-use Hyper Precision Mounting System III. A preassembled mounting bar simplifies the installation process, while spring-loaded screws prevent Uneven pressure distribution. The mounting system supports all common sockets, including AMD®s AM4 and Intel®s Socket 2066. The Mugen 5 TUF Gaming Alliance package also includes an extra long screwdriver for easy mounting.
