SCYTHE SU1225FD12LR-RD Scythe Kaze Flex RGB 120mm SU1225FD12LR-RD

SCYTHE SU1225FD12LR-RD Scythe Kaze Flex RGB 120mm SU1225FD12LR-RD

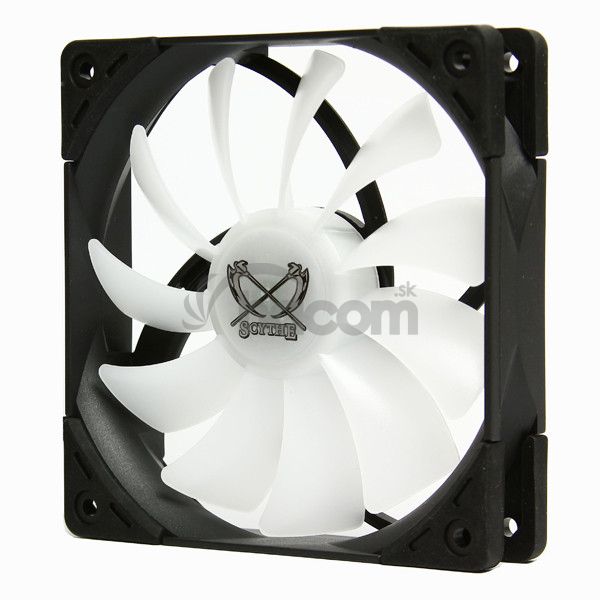

Kaze Flex 120 RGB

Séria Kaze Flex RGB kombinuje ocenenú technológiu fanúšikov Kaze Flex s optickými kontrolami a LED diódami RGB. Celočierny rám a oddeľovača zdôrazňujú priesvitné lopatky ventilátora osvetlené ôsmich LED diódami. 4-kolíkový konektor 12 V RGB umožňuje reguláciu pomocou štandardných radičov RGB. Vďaka ďalšej priechodná zástrčke možno niekoľko ventilátorov spájať dohromady. Vynikajúci výkon radu Kaze Flex zostáva nedotknutý. Uzavreté tesnenie FDB zaisťuje životnosť viac ako 120 000 hodín. Tri úrovne výkonu ponúkajú individuálne riešenie pre každú aplikáciu. K dispozícii je aj verzia riadená PWM.

The Kaze Flex RGB series combines the award-winning technology of the Kaze Flex fans with an optical revision and RGB LEDs. The all-black frame and decouplers emphasize the translucent fan blades illuminated by eight LEDs. A 4-pin 12V RGB connector allows regulation by štandard RGB controllers. Thanks to an additional pass through plug, several fans can be chained together. The outstanding performance of the Kaze Flex range remains untouched. The Sealed Precision FDB bearing ensures a service life of more than 120 000 hours. Three performance levels offer an individual solution for every application. A PWM controlled version is also available.

Model Name:
Kaze Flex 120 RGB Case Fan

Model-Nr .:
SU1225FD12LR-RD
SU1225FD12MR-RH
SU1225FD12HR-RN

Dimensions:
120 x 120 x 27 mm

Fan Speed:
800 rpm
1.200 rpm
1.800 rpm

Noise Level:
14,5 dBA / 24,9 dBA / 35,8 dBA

Airflow:
43,03 CFM = 73,1 m3 / h
51,17 CFM = 86,9 m3 / h
79,76 CFM = 135,5 m3 / h

Static Pressure:
0,49 mmH2O / 4,8 Pa
1,05 mmH2O / 10,03 Pa
2,40 mmH2O / 25,3 Pa

Voltage:
12 V

Amperage:
0,09 A / 0,13 A / 0,40 A

Amperage LED:
0,40 A / 0,40 A / 0,40 A

Power Input:
1,08 W / 1,56 W / 5,52 W

Weight:
140 g

connector:
3-pin

accessory:
Molex-Adaptor, 4x screws,

Bearing:
Sealed Precision Fluid Bearing

MTTF:
120.000 Hours (25 ° C)

RGB illumination
Eight RGB LEDs arranged in a ring around the fan motor generate a consistent and powerful illumination of the translucent fan blades. The LEDs are operated by a štandard 4-Pin RGB cable that can be directly controlled by the common RGB system of various motherboard manufacturers. Compatible, amoung others, are systems like ASUSTM Aurora Sync, ASRockTM RGB LED, MSITM Mystic Light Sync and GigabyteTM RGB Fusion.

Sealed Precision FDB
In order to guarantee an exceptionally high level of stability and durability, the fans from the Kaze Flex Series are equipped with a self-contained fluid dynamic bearing (Sealed Precision FDB). The bearing and the spindle are made entirely of high quality compressed metal and lubricated by a special oil film resistant to temperatures of up to 250 ° C / 480 ° F. This drastically reduces friction, ensuring smooth operation and minimized wear, which results in an average life-span of 120 000 hours.

Integrated Anti-Vibration sytem
The Kaze Flex fan series is equipped with vibration- and shock absorbing rubber pads which cover the tunnelless mounting holes. These decouplers effectively Eliminate possible Vibrations and allow low-noise operation.

Versatile Applications
The Kaze Flex RGB fan series is available in three performance levels and offers an individual solution for every application. Alternatively, a RGB PWM version is also available.

Other features
The Kaze Flex 120 RGB comes with a 50 cm / 19.68 inch long sleeved 3-Pin cable as well as a štandard 12V 4-Pin cable for RGB control with an additional pass through plug. This allows easy installation in almost any system configuraton. An adaptor for direct connection to the power supply is also included.
