- TP-Link EAP610GP-Desktop Wifi6 GPON AP Omada EAP610GP-Desktop

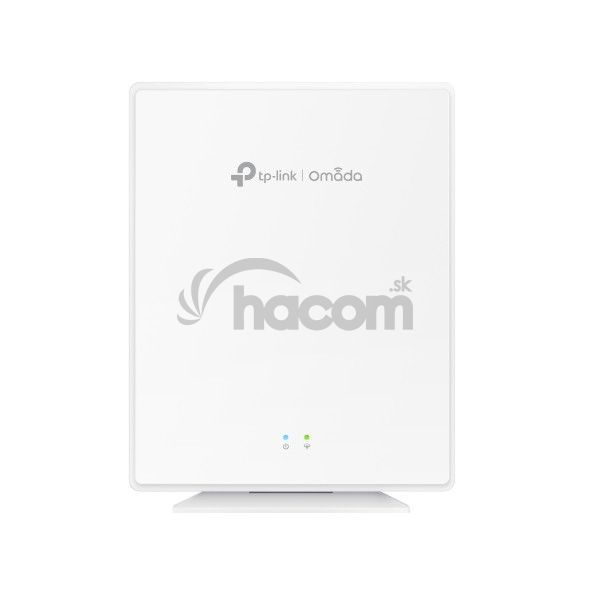

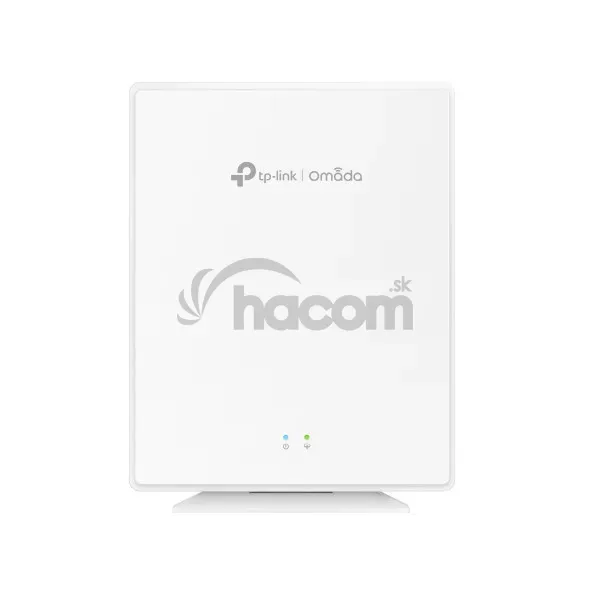

TP-Link EAP610GP-Desktop Wifi6 GPON AP Omada EAP610GP-Desktop
EAP610GP-Desktop
Omada AX1800 Wi-Fi 6 Desktop GPON prístupový bod
Funkcia
Bezproblémové rýchlosti Wi-Fi 6 1,8 Gbps
*1201 Mbps na 5 GHz a 574 Mbps na 2,4 GHz
1× GPON port
*Pre vysokorýchlostný a ultra-široký prístup
Ultra-širokopásmová Wi-Fi 6
*MU-MIMO, bezproblémový roaming
Jedno optické vlákno pre viac služieb
*Drôtové, bezdrôtové, hlasové, VoIP, dátové a HD video služby
VoIP hovory
*Podpora viac VoIP účtov a rôznych funkcií hovorov, ktoré prevyšujú tradičné pevné linky
Jednoduché použitie
*Párovanie jedným kliknutím a automatické pripojenie
Inteligentné O&M
*PPSK a viac portálov
Vysoká flexibilita
*Podpora stolných aj nástenných montážnych nastavení
Centralizovaná správa
*Integrácia s jednotným optickým riešením
Špecifikácia
Hardvér

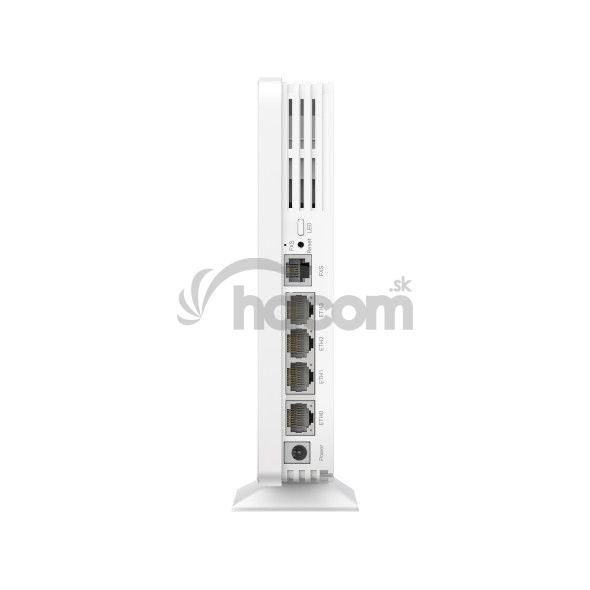

Interface
*1x GPON Port
*1x FXS Port
*4x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out)
GPON Interface
*Port Type: SC-APC
*Standards and Protocols: ITU-984.x, G.988, Class B+
*Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)
*Fiber Type: 9/125 um Single mode
*Max. Cable Length: 20 km
Button
*Reset
*LED
Power Supply
*53.5V/0.81A DC
Power Consumption
*17.3W (PoE Out Off)
Weight
*492g
Dimensions ( W x D x H )
*175 × 140 × 33 mm
Antenna Type*
*Internal Omni
*2.4 GHz: 2× 5 dBi
*5 GHz: 2× 4.5 dBi
Mounting
*Desktop / Wall mouting (Kits included)
Bezdrôtové
Coverage
*140m 2 (1500ft 2 )
Concurrent Clients
*120+
Wireless Standards
*IEEE 802.11 a/b/g/n/ac/ax
Frequency
*2.4 GHz a 5 GHz
Signal Rate
*5 GHz: 1201 Mbps
*2.4 GHz: 574 Mbps
Wireless Functions
*2×2 (2.4G & 5G) MU-MIMO
*HE80 (80 MHz Bandwidth)
*OFDMA
*Seamless Roaming
*Multiple SSIDs (16 SSIDs, 8 on each band)
*Enable/Disable SSID Broadcast
*Enable/Disable Wireless Radio
*Guest Network
*Automatic Channel Assignment
*Beamforming, Rate Limit
*Band Steering
*Load Balance
*Airtime Fairness
*Transmit Power Control (Adjust Transmit Power on dBm)
*QoS (WMM)
*RADIUS Accounting
*MAC Authentication
*Reboot Schedule
*Wireless Schedule and Statistics
*Static IP/Dynamic IP
Wireless Security
*Captive Portal Authentication§
*Access Control
*Wireless Mac Address Filtering
*Wireless Isolation Between Clients
*VLAN
*Rogue AP Detection
*802.1X Support
*WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
*CE:
*<20 dBm(2.4 GHz, EIRP)
*<23 dBm(5 GHz, band1 & band2, EIRP)
*<27 dBm(5 GHz, band3, EIRP)
*FCC:
*<25 dBm (2.4 GHz)
*<25 dBm (5 GHz)
Management
Omada App
*Yes
Centralized Management
*Omada Hardvér Controller (OC300, OC200)
*Omada Software Controller
*Omada Cloud-Based Controller
Cloud Access
*Yes. Require use of OC300, OC200, Omada Cloud-Based Controller, alebo Omada Software Controller.
Email Alerts
*Yes
LED ON/OFF Control
*Yes
Management MAC Access Control
*Yes
SNMP
*v1, v2c, v3
System Logging Local/Remote Syslog
*System Log
SSH
*Yes
Web-based Management
*Yes
Zero-Touch Provisioning
*Yes. Require use of Omada Cloud-Based Controller.
Parametre
| Hmotnosť | 0,972 kg |
|---|
