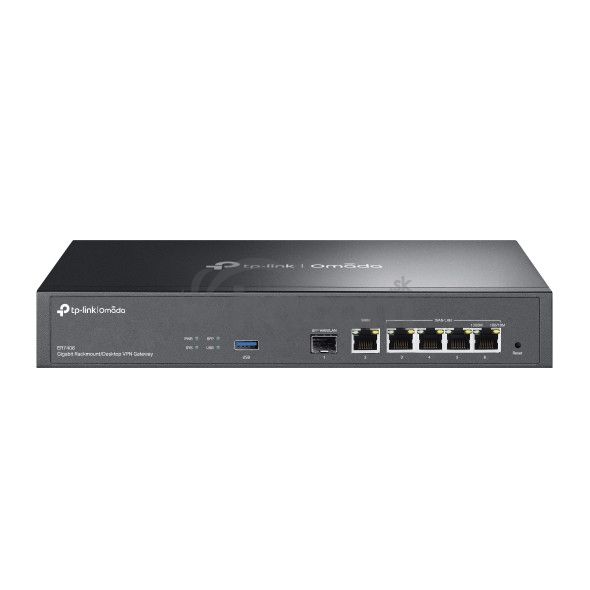

TP-Link ER7406 VPN Router Gb rack/desktop Omada ER7406

TP-Link ER7406 VPN Router Gb rack/desktop Omada ER7406

ER7406
Omada Gigabitová gateway VPN pre montáž do racku / na stôl

Funkcia
*1× gigabitový SFP WAN/LAN port
*5× gigabitových RJ45 portov (1× WAN, 4× WAN/LAN)
*1× USB 3.0 port (podporuje USB úložisko a LTE zálohovanie s LTE donglem)
*Vyvažovanie záťaže na až 5 WAN portoch zvyšuje využitie viac-liniek širokopásmového pripojenia
*Vysoko zabezpečená SSL/IPSec/GRE§/WireGuard/PPTP/L2TP VPN a OpenVPN
*Centralizovaná správa v cloude cez web alebo aplikáciu Omada
*Ochrana proti DoS, filtrovanie IP/MAC/URL, DPI a IPS/IDS pre zvýšenú bezpečnosť
*Montáž do racku/stolové prevedenie

Špecifikácia
Zabezpečenie
Access Control Source/Destination IP Based Access Control
Filtering
*WEB Group Filtering
*URL Filtering
*Web Security
ARP Inspection
*Sending GARP Packets
*ARP Scanning
*IP-MAC Binding
Attack Defense
*TCP/UDP/ICMP Flood Defense
*Block TCP Scan (Stealth FIN/Xmas/Null)
*Block Ping from WAN
Hardvér
Štandards and Protocols
*IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
*TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface
*1 Gigabit SFP WAN/LAN Port
*1 Gigabit WAN Port
*4 Gigabit LAN/WAN Ports
*1 USB 3.0 Port (supports USB LTE dongle a USB storage)
Network Media
*10BASE-T: UTP kategórie 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
*100BASE-TX: UTP kategórie 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
*1000BASE-T: UTP kategórie 5, 5e, 6 cable (Max 100 m)
Fan Quantity
*Fanless
Button
*Reset Button
Power Supply
*100-240VAC, 50/60Hz
Flash
*128 MB NAND
DRAM
*512 MB DDR4
LED
*PWR, SYS, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensions ( W x D x H )
*294 × 140 × 44 mm
Protection
*4 kV surge protection
Enclosure
*Steel
Mounting
*Desktop
*Rackmountable
Max Power Consumption
*7.5 W (s USB 3.0 connected)
*4.5 W (without USB 3.0 connected)
Výkon
IPS Throughput
*TCP: 229 Mbps;
*UDP: 188 Mbps
DPI Throughput
*TCP: 933 Mbps;
*UDP: 927 Mbps
GRE
*Unencrypted: 611.9 Mbps
*Encrypted: 325.0 Mbps
WireGuard VPN
*341.3 Mbps
Concurrent Session
*150,000
New Sessions /Second
*5,300
NAT (Static IP)
*945.3 Mbps / 940.5 Mbps
NAT(DHCP)
*939.6 Mbps / 940.9 Mbps
NAT(PPPoE)
*943.6 Mbps / 940.9 Mbps
NAT (L2TP)
*880.1 Mbps / 859.0 Mbps
NAT (PPTP)
*855.0 Mbps / 907.2 Mbps
IPsec VPN Throughput
*ESP-SHA1-AES256: 617.1 Mbps
*ESP-SHA256-AES256: 592.8 Mbps
*ESP-SHA384-AES256: 592.4 Mbps
*ESP-SHA512-AES256: 604.5 Mbps
OpenVPN
*139.1 Mbps
L2TP VPN Throughput
*Unencrypted: 977.4 Mbps
*Encrypted: 334.6 Mbps
PPTP VPN Throughput
*Unencrypted: 1064.1 Mbps
*Encrypted: 206.8 Mbps
SSL VPN Throughput
*131.6 Mbps
66 Byte Packet forwarding rate
*1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate
*81,279 pps / 81,275 pps
Základné funkcie
WAN Connection Type, MAC Clone, DHCP, IpV6, VLAN, IPTV
Rozšírené funkcie
Advanced Routing, Bandwidth Control, Load Balance, NAT, Session Limit
VPN
GRE
*Yes(Only in Standalone Mode)
SSL VPN
*50 Tunnels
IPsec VPN
*100 IPSec VPN Tunnels
PPTP VPN
*50 Tunnels
L2TP VPN
*50 Tunnels
OpenVPN
*55 OpenVPN Tunnels
Autentizácia
Web Authentication
*No Authentication
*Simple Password
*Hotspot (Local User /Voucher*/ SMS/Radius*)
*External Radius Server
*External Portal Sever
*LDAP
Management
Omada App
*Yes. Potrebujete použiť Omada Hardvér Controller, Omada Cloud-Based Controller, alebo Omada Software Controller.
Centralized Management
*Omada Cloud-Based Controller
*Omada Hardware Controller
*Omada Software Controller
Cloud Access
*Yes. Potrebujete použiť Omada Hardvér Controller, Omada Cloud-Based Controller, alebo Omada Software Controller.
Service
*Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Zero-Touch Provisioning
*Yes. Requires use of Omada Cloud-Based Controller.
