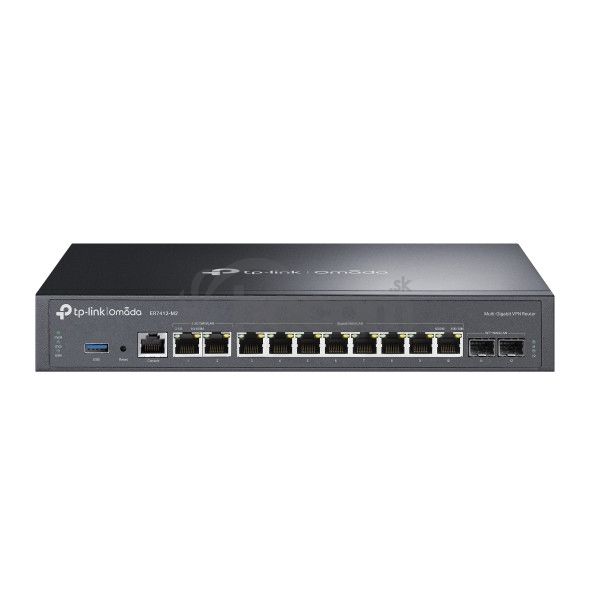

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router ER7412-M2

TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router ER7412-M2

ER7412-M2

Omada Multi-Gigabit VPN Router
*Štvorjadrový procesor @2.0GHz
*2× 2,5G RJ45 WAN/LAN porty
*10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45)
*1× port USB 3.0 (podporuje úložisko USB a zálohovanie LTE pomocou LTE dongle)
*Až 11 WAN portov
*Multi-WAN Load Balancing zvyšuje mieru využitia viaclinkového širokopásmového pripojenia
*Vysoko zabezpečené SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
*Centralizovaná správa cloudu cez web alebo aplikáciu Omada
*Ochrana proti DoS, filtrovanie IP/MAC/URL, DPI a IPS/IDS pre lepšie zabezpečenie.

Špecifikácia

Bezpečnosť
Access Control
*Source/Destination IP-Based ACL
*Stateful ACL
*IPv4/IPv6 ACL
*National Based ACL
Filtering
*WEB Group Filtering§
*URL Filtering
*Web Security
ARP Inspection
*Sending GARP Packets
*ARP Scanning
*IP-MAC Binding
Attack Defense
*TCP/UDP/ICMP Flood Defense
*Block TCP Scan (Stealth FIN/Xmas/Null)
*Block Ping from WAN
Hardvér
Štandards and Protocols
*IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
*TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface
*1× 2.5G RJ45 WAN/LAN Port
*1× 2.5G RJ45 WAN/LAN Port
*2× Gigabit SFP WAN/LAN Ports
*8× Gigabit RJ45 WAN/LAN Ports
*1× RJ45 Console Port
*1× USB 3.0 Port (Supporty USB storage, a LTE backup with LTE dongle)
Network Media
*10BASE-T: UTP kategórie 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
*100BASE-TX: UTP kategórie 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
*1000BASE-T: UTP kategórie 5, 5e, 6 cable (Max 100 m)
*2500BASE-T: UTP kategórie 5e, 6 cable (Max 100 m)
Button
*Reset Button
Power Supply
*100–240 VAC, 50/60 Hz
Flash
*128MB NAND
DRAM
*1 GB DDR4
Dimensions ( W x D x H )
*294×180×44 mm
Protection
*4 kV surge protection
Enclosure
*Steel
Mounting
*Desktop
*Rackmountable
Max Power Consumption
*18.5W (With USB 3.0 connected)
Základné funkcie
WAN Connection Type
*Static IP/Dynamic IP
*PPPoE (supports MRU Configuration)
*PPTP
*L2TP
*Mobile Broadband: 4G/3G modem pre backup cez USB port
MAC Clone
*Modify WAN/LAN MAC Address
DHCP
*DHCP Server
*DHCPv6 PD Server (Only in Standalone Mode)
*DHCP Options Customization
*DHCP Address Reservation
*Multi-IP Interfaces
*Multi-Net DHCP
IPv6
*StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN
*802.1Q VLAN
IPTV
*IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Pokročilé funkcie
Advanced Routing
*Static Routing
*Policy Routing
*RIP (available in Standalone Mode)
*OSPF (available v Standalone Mode)
Bandwidth Control
*IP/Port-based Bandwidth Control
Load Balance
*Intelligent Load Balance
*Application Optimized Routing
*Link Backup (Timing, Failover)
*Online Detection
NAT
*One-to-One NAT
*Multi-Net NAT
*Virtual Server
*Port Triggering
*NAT-DMZ
*FTP/H.323/SIP/IPSec/PPTP ALG
*UPnP
Session Limit
*IP-based Session Limit
VPN
GRE
*Only in Standalone Mode
SSL VPN
*80 Tunnels
IPsec VPN
*150 IPSec VPN Tunnels
*LAN-to-LAN, Client-to-LAN
*Main, Aggressive Negotiation Mode
*DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
*IPsec Failover
*IKE v1/v2
*MD5, SHA1, SHA2-384 a SHA2-512 Authentication Algorithm
*NAT Traversal (NAT-T)
*Dead Peer Detection (DPD)
*Perfect Forward Secrecy (PFS)
PPTP VPN
*PPTP VPN Server
*PPTP VPN Client (15)
*150 Tunnels
*PPTP with MPPE Encryption
L2TP VPN
*L2TP VPN Server
*L2TP VPN Client (15)
*150 Tunnels
*L2TP over IPSec
OpenVPN
*OpenVPN Server
*OpenVPN Client (11)
*121 OpenVPN Tunnels
*"Certificate + Account" Mode
*Full Mode
