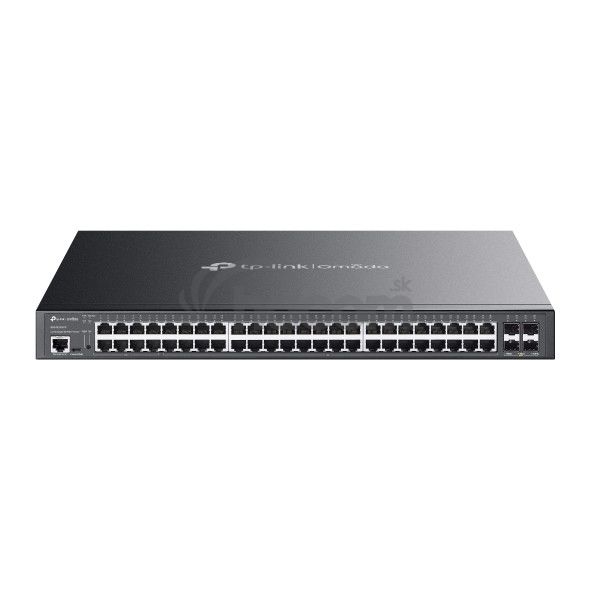

TP-Ĺink SG3452XMPP 48G 4xSFP+ 40xPOE+8xPOE++ SG3452XMPP

TP-Ĺink SG3452XMPP 48G 4xSFP+ 40xPOE+8xPOE++ SG3452XMPP

SG3452XMPP
Omada 48-portový gigabitový a 4-portový 10GE SFP+ Managed switch L2+ so 40 portami PoE+ a 8 portami PoE++

Funkcia
*4× 10 Gb/s SFP+ sloty
*8× Gigabitové porty s podporou 802.af/at/bt PoE++ (Max 90 W rozpočet PoE pre každý port)
*40× Gigabitové porty s podporou 802.3af/at PoE+ (Max 30 W rozpočet pre každý port)
*750 W celkový rozpočet PoE
*Centralizovaný cloudový manažment cez web alebo aplikáciu Omada†
*Samotný manažment cez web, CLI, SNMP a RMON
*Statické smerovanie pre efektívne smerovanie internej prevádzky
*VLAN, ACL, QoS, IGMP Snooping, OAM a DDM
*ERPS podporuje rýchlu ochranu a obnovu v kruhovej topológii
*Odolné kovové puzdro a dizajn pre montáž do racku

Špecifikácia

Hardvér
Interface
*48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+)
*4× 10G SFP+ Slots
*1× RJ45 Console Port
*1× Micro-USB Console Port
Fan Quantity
*3
Physical Security Lock
*Yes
Power Supply
*100-240 V AC ~ 50/60 Hz
PoE Ports (RJ45)
*Štandard: 802.3at/af/bt compliant
*PoE++ Ports: Porty 1~8 (po 90 W PoE Output per Port)
*PoE+ Ports: Porty 9~48 (30 W PoE Output per Port)
*Power Budget: 750 W
Dimensions ( W x D x H )
*440×330×44 mm
Mounting
*Rack Mountable
Max Power Consumption
*913.4 W (110V/60Hz) ( with 750 W PD connected)
Max Heat Dissipation
*3114.69 BTU/hr (110 V/60 Hz) (s 750 W PD connected)
Výkon
Switching Capacity
*176 Gbps
Packet Forwarding Rate
*130.9 Mpps
MAC Address Table
*16 K
Packet Buffer Memory
*12 Mbit
Jumbo Frame
*9 KB
Softvér
QoS, L2 a L2+ Features, L2 Multicast, Advanced Features, VLAN, Access Control List, Security, IPv6, MIBs
Pre viac informácií naštívte web výrobcu.
Management
Omada App
*Yes. Requiring use of Omada Hardvér Controller, Omada Cloud-Based Controller, alebo Omada Software Controller.
Centralized Management
*Omada Cloud-Based Controller
*Omada Hardware Controller
*Omada Software Controller
Cloud Access
*Yes. Requiring use of Omada Hardvér Controller, Omada Cloud-Based Controller, alebo Omada Software Controller.
Zero-Touch Provisioning
*Yes. Requiring use of Omada Cloud-Based Controller.
