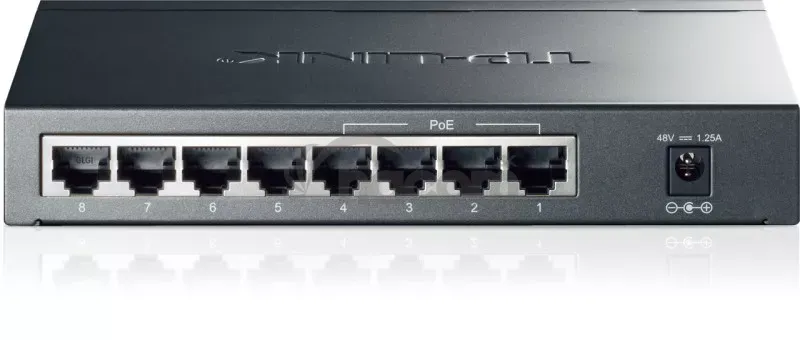

- TP-Link TL-SG1008P 8xGb (4xPOE) 55W Desktop fanless Switch TL-SG1008P
TP-Link TL-SG1008P 8xGb (4xPOE) 55W Desktop fanless Switch TL-SG1008P
TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoEOVERVIEW
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10 / 100Mbps Fast Ethernet network capabilities.
FEATURES
• 8 10/100 / 1000Mbps RJ45 ports
• With four PoE porty, transfers dáta and power on one single cable
• Working with IEEE 802.3af compliant PDS, expands home and office network
• Requires no configuration and installation
HARDWARE FEATURES
interface
• 8 10/100 / 1000Mbps RJ45 Ports
• AUTO Negotiation / AUTO MDI / MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA / TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA / TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA / TIA-568 100? STP (maximum 100m)
PoE Ports (RJ45)
• Standard: 802.3 af compliant
• PoE Ports: Port1- Port4
• Power Supply: 53W
Backbound Bandwidth
• 16Gbps
Mac Address Table
• 8K
External Power Supply
• External Power Adapter (Output: 48VDC / 1.25A)
Dimensions (WXDXH)
• 171 * 98 * 27 mm
Fan Quantity
• Fanless
SOFTWARE FEATURES
transmission Method
• Store-And-Forward
advanced Functions
• Compatible With IEEE 802.3af Compliant PDS
• Priority Function
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification
• FCC, CE
Package Contents
• TL-SG1008P, Power Adapter, User Guide
Consumption
• 5.8 watts (max. No PD connected)
• 58.8 watts (max. With 53W PD connected)
Environment
• Operating Temperature: 0? ~ 40? (32? ~ 104?)
• Storage Temperature: -40? ~ 70? (-40? ~ 158?)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
Parametre
Hmotnosť | 0,97 kg |
---|
