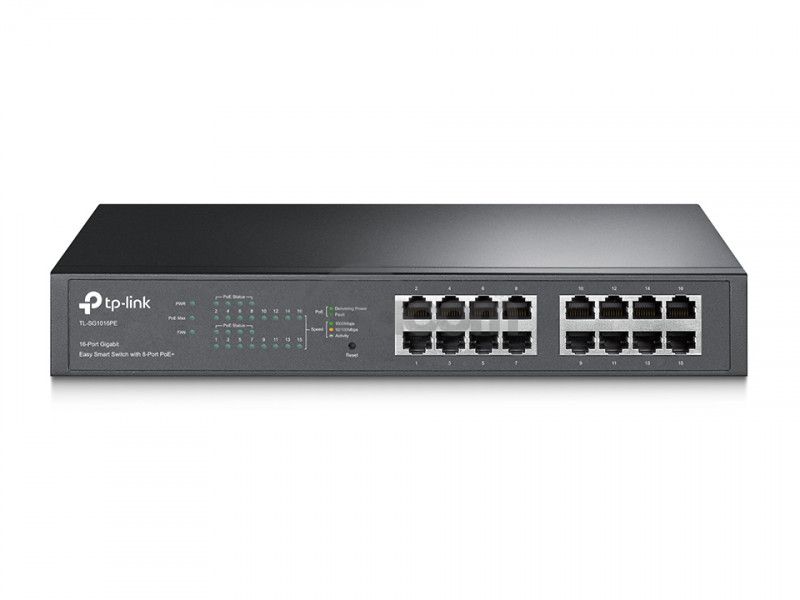

TP-Link TL-SG1016PE 16xGb, (8xPOE +) easy smart switch 110W TL-SG1016PE

TP-Link TL-SG1016PE 16xGb, (8xPOE +) easy smart switch 110W TL-SG1016PE

TL-SG1016PE
* 16-Port Gigabit Desktop / Rackmount PoE + Easy Smart Switch, 16 Gigabit RJ45 ports including 8 PoE + ports, 110W PoE Power supply, PoE Managment, MTU / Port / Tag-based VLAN, QoS, IGMP Snooping, Steel case



Inteligentný switch so 16 gigabitovými portami PoE, 8 portov podporuje PoE + TL-SG1016PE

* 16 portov RJ45 s rýchlosťami 10/100/1000 Mb / s
* 8 portov podporuje PoE + pre prenos dát a napájanie cez jeden kábel
* Funguje so zariadeniami, ktoré spĺňajú normu IEEE 802.3af / at a pomáha pri rozširovaní domácich a kancelárskych sietí
* Pripojenie v štýle "plug-and-play" a jednoduché nastavenie siete
* Konfiguráciu uľahčuje webové užívateľské rozhranie a utilita pre správu


* HARDWARE FEATURES
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface: 16 10/100 / 1000Mbps RJ45 Ports
AUTO Negotiation / AUTO MDI / MDIX
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA / TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA / TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA / TIA-568 100? STP (maximum 100m)
Fan Quantity: 1
Power Supply: 100-240VAC, 50 / 60Hz
Power Consumption: Maximum: 124.4W (220V / 50Hz)
PoE Ports (RJ45): Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
Dimensions (W x D x H): 11.6 * 7.1 * 1.7 in. (294 * 180 * 44 mm)

* PERFORMANCE
Switching Capacity: 32Gbps
Packet Forwarding Rate: 23.8Mbps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mbit
Jumbo Frame: 9KB

* SOFTWARE FEATURES
Quality of Service: Support Port-Based / 802.1p / DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features: IGMP Snooping V1 / V2 / V3
Link Aggregation
port Mirroring
Cable Diagnostics
Loop Prevention
VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU / Port / Tag VLAN
Management: Web-based GUI
Easy Smart Configuration Utility
Transmission Method: Store-And-Forward

* OTHERS
Certification: FCC, CE, RoHS
Package Contents: TL-SG1016PE
power Cord
Installation Guide
resource CD
Rackmount Kit
Rubber Feet
System Requirements: Microsoft® Windows® for running Utility
Environment: Operating Temperature: 0? ~ 40? (32? ~ 104?)
Storage Temperature: -40? ~ 70? (-40? ~ 158?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Hlučnosť priamo pri zariadení (tolerancia 1-3 cm od motora ventilátora) je 60 Db, vo vzdialenosti cca 1 metra je to 42-45 Db
