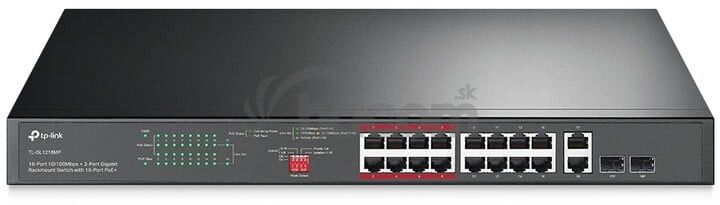

TP-Link TL-SL1218MP ver.2 16xFE 2xGb 2xSFP Unmanaged CCTV Switch 192W POE + TL-SL1218MPver.2

TP-Link TL-SL1218MP ver.2 16xFE 2xGb 2xSFP Unmanaged CCTV Switch 192W POE + TL-SL1218MPver.2

16-portový 10 / 100Mb / s + 2-portový gigabitový Unmanaged PoE Switch

* 16 portov RJ45 PoE + 10 / 100Mb / s, 2 gigabitové porty RJ45 a 2 kombinovanej gigabitové SFP sloty.
* Prenos dát a napájanie až do vzdialenosti 250 mv režime predĺženie špeciálne navrhnutého pre dohľadový systém.
* Prioritné režim pre port 1-8, ktorý zaručuje kvalitu citlivých aplikácií, ako je napríklad video monitor.
* Vysoký výkon PoE napájania, až 30 W pre každý PoE port a 194 W pre všetky PoE porty.
* Jednoduché použitie bez nutnosti konfigurácie a inštalácie.
* Tento switch nie je kompatibilný s produktmi EAP225 v3 a EAP225-Outdoor v3

technické parametre

HARDWARE FEATURES
* Interface:
-16 PoE + 10 / 100Mbps RJ45 Ports
-2 10/100 / 1000Mbps RJ45 Ports
-2 Combo Gigabit SFP Slots
* Network Media:
-10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
-EIA / TIA-568 100? STP (maximum 100m)
-100BASE-TX: UTP category 5, 5e cable (maximum 100m)
-EIA / TIA-568 100? STP (maximum 100m)
-1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
-EIA / TIA-568 100? STP (maximum 100m)
-1000BASE-X MMF, SMF
* Fan Quantity: 2 Fans
* Power Supply: 100-240V AC, 50/60 Hz
* Backup Bandwidth: 7.2 Gbps
* PoE + Ports (RJ45):
-Standard: 802.3at / 802.3af compliant
-PoE Ports: Port1- Port16
-PoE Power Budget: 192W
* Mac Address Table: 8K
* Dimensions (W x D x H): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
* Max Power Consumption:
-18.73 W (220 / 50Hz. No PD connected)
-217.22 W (220 / 50Hz. With 192W PD connected)
* Max Heat Dissipation:
-63.89 BTU / h (no PD connected)
-741.15 BTU / h (with 192W PD connected)

SOFTWARE FEATURES
* Advanced Features:
-Compatible With IEEE 802.3at / af Compliant PDS
-Port Priority Mode
-Extend Mode (Up to 250m PoE power supply and data transmission)
-Mac Address Auto-Learning And Auto-Aging
-IEEE802.3x Flow Control
* Transmission Method: Store-And-Forward

OTHERS
* Certification: CE, FCC, RoHS
* Package Contents: TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings
* Environment:
-Operating Temperature: 0 ° C ~ 40 ° C (32 ° F ~ 104 ° F)
-Storage Temperature: -40 ° C ~ 70 ° C (-40 ° F ~ 158 ° F)
-Operating Humidity: 10% ~ 90% non-condensing
-Storage Humidity: 5% ~ 90% non-condensing
