Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.

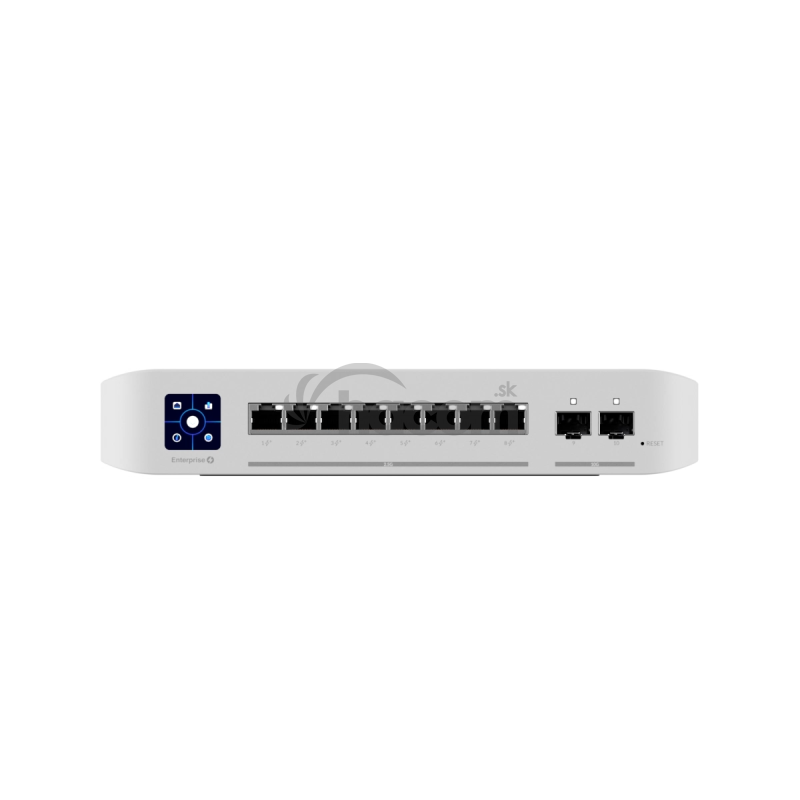

The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

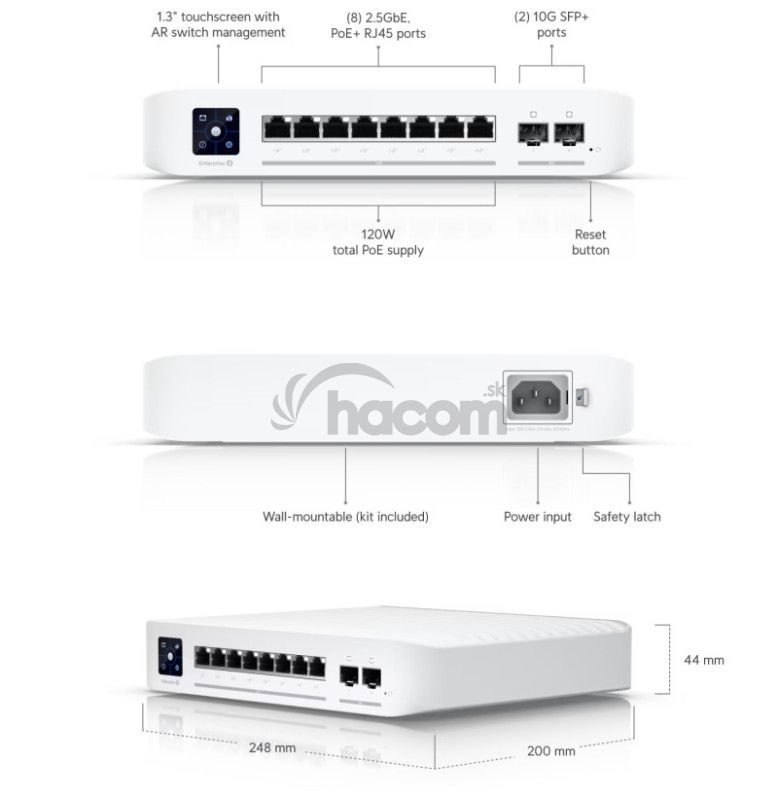

Features:

(1) 1.3" LCM color touchscreen with AR switch management
(8) 2.5GbE, 802.3at PoE+ RJ45 ports
(2) 10G SFP+ ports
120W total PoE supply

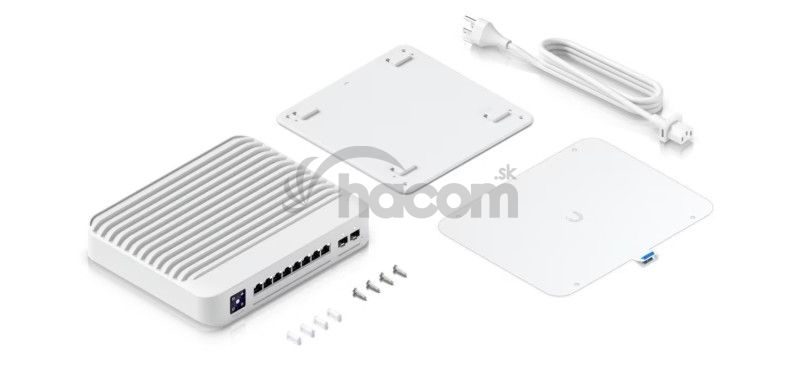

Wall-mountable (kit included)

* Layer 3 switching will become available in a future firmware update.

Technical Specifications
Mechanical
Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.4 kg (5.29 lb)
Enclosure Materials Polycarbonate
Mount Material Polycarbonate
Hardware
Total Non-Blocking Throughput 40 Gbps
Switching Capacity 80 Gbps
Forwarding Rate 59.52 Mpps
Max PoE Power 120W
Power Method (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W
Management Interface Ethernet In-Band
Networking Interfaces (8) 1/2.5 Gbps RJ45 Ethernet
SFP+ Interfaces (2) 1/10 Gbps SFP+
PoE Interfaces (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE 32W
Voltage Range 802.3af Mode 44 to 57V
Voltage Range 802.3at Mode 50 to 57V
Services SMB Layer 3* PoE Gigabit Ethernet Switch
* Layer 3 feature will be available in the future firmware release.
LCM Display (1) 1.3" Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
LEDs
Ethernet White: Link or Activity
SFP+ White: Link or Activity
