UBNT usw-Flex-XG USW-Flex-XG

UBNT usw-Flex-XG USW-Flex-XG

Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE + RJ45 input.

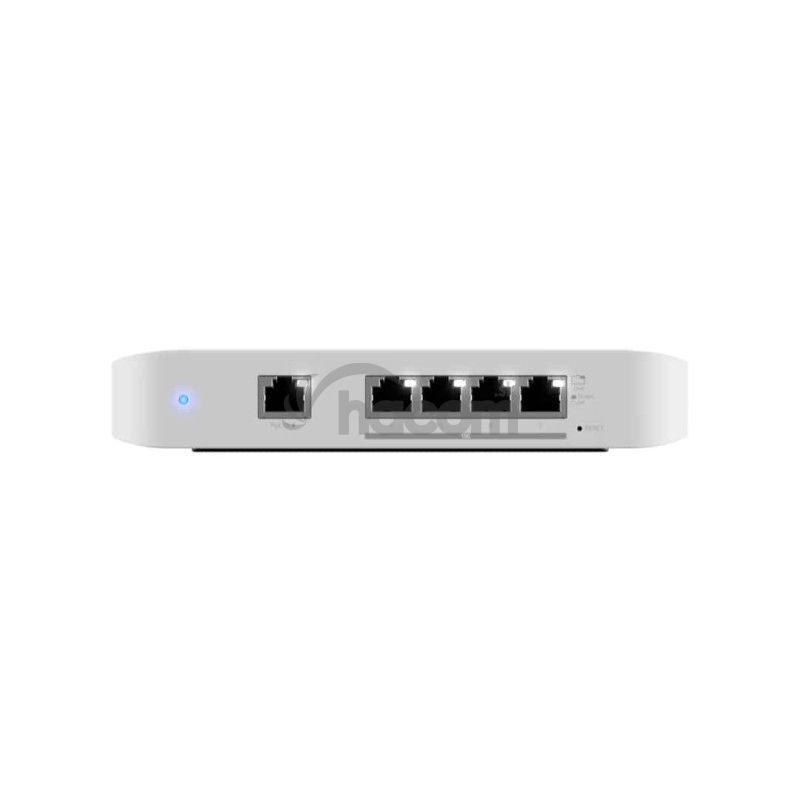

The Switch Flex XG (usw Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The usw Flex XG sports slim, compact housing and can be mounted on a desktop *. This switch can also be monitored or configured from anywhere with the powerful, Intuitive UNIFEM Network web application and mobile app.

Features:

(1) GbE, 802.3at PoE + RJ45 input
(4) 10GbE RJ45 ports
Compact, slim housing
Can be powered with a 5V, 5A USB-C adapter **

* Do not stack other hardware on the usw Flex XG.
** Only single-unit packages include the 5V, 1A USB-C power adapter.

Managed with the UNIFEM Network application: Version 6.1.67 and later

Mechanical
Dimensions 135 x 185 x 32 mm (5.31 x 7.28 x 1.27 ")
Weight 1.2 kg (2.65 lb)
Enclosure Material Polycarbonate
Hardware
Total Non-Blocking Throughput 41 Gbps
Switching Capacity 82 Gbps
Forwarding Rate 61.012 Mpps
Max Power Consumption 25W
Power Method (1) 802.3at PoE, 50-57VDC, 25W
(1) USB Type-C, 5VDC, 5A
Power Supply 802.3at PoE (Pins 1, 2 + / 3, 6- alebo 4, 5 + / 7, 8-)
AC / DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included)
Supported Voltage Range 90 to 264VAC (Adapter)
Management Interface Ethernet In-Band
Networking Interfaces (1) 10/100/1000 Mbps RJ45 Ethernet
(4) 100 / 1,000 / 2,500 / 5,000 / 10,000 Mbps RJ45 Ethernet
Services SMB Layer 2 Gigabit Ethernet Switch
ESD / EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Button Factory Reset
Operating Temperature -5 to 45 ° C (23 to 113 ° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
LEDs
System (1) Power, Blue / White
Flashing White: bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet White: Link or Activity
