Winmate/L140AD-3/i5-1235U/13,3"/FHD/T/8GB/256GB L140AD-3

Winmate/L140AD-3/i5-1235U/13,3"/FHD/T/8GB/256GB L140AD-3

Odolný konvertibilný notebook L140AD-3 s procesorom Intel Core i5-1235 a operačným systémom Windows 10 IoT Enterprise. L140AD-3 podporuje rozsiahle možnosti bezdrôtového pripojenia, ako je Wi-Fi, BT, GPS/GLONASS a 4G LTE (voliteľne), aby boli pracovníci v spojení aj na tých najodľahlejších miestach. Tiež je vybavený 13.3palcovým panelom 1920 x 1080 s možnosťou čítania za denného svetla, priamym optickým spojením, úpravou proti odleskom a užívateľsky prívetivou projekčnou kapacitnou dotykovou obrazovkou. Séria L140AD ponúka novú generáciu kompaktnej a ľahkej prenosnosti v robustnom prevedení.

Vlastnosti:
12th Gen. Intel® Procesor Family – Alder Lake Processor
13.3” 1920 x 1080 LED panel s direct optical bonding laptop
Antiglare technology for sunlight readability
Dual battery with hotswappable design for wholeday work

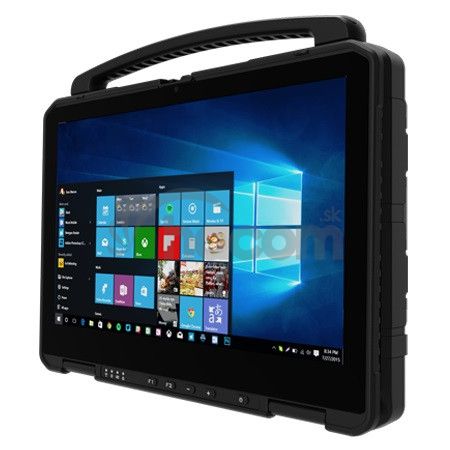

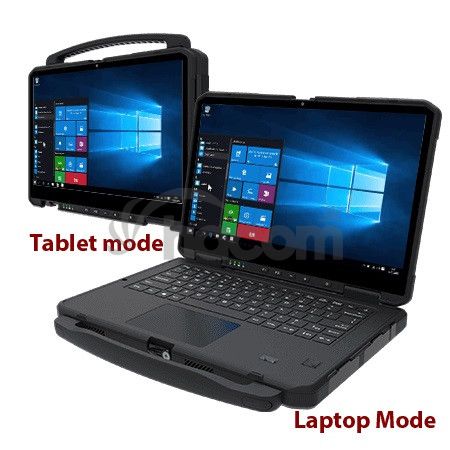

Flip design for quick switching between rugged laptop and rugged tablet modes
Magnézium alloy enclosure with double injection for drop protection
Integrated smart card reader

Display
Resolution 1920×1080
Size 13.3 inches
Contrast Ratio 1000:1
Panel Brightness 500 nits
View Angles 89,89,89,89
Bonding Optical Bonding pre Sunlight Viewability
Type Projected Capacitive Multi Touch

System Specification
Procesor
Intel Core i51235U (up to 4.4GHz)

Memory
8GB SODIMM DDR4-2133
16GB SODIMM DDR4-2133 (Optional)
32GB SODIMM DDR4-2133 (Optional)

Storage
256GB M.2 SSD
512GB M.2 SSD (Optional)
1TB M.2 SSD (Optional)
2TB M.2 SSD (Optional)
Prídavné skladovanie dostupné s 2TB M.2 (PCIe NVMe) SSD,self-encrypted. (Optional)


Security
Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System
Windows 10 IoT Enterprise (64 bit)
Wi-fi Support
BT Support
WWAN 4G LTE (Optional)
GNSS GPS/GLONASS
RFID HF RFID (Optional)
Smart Card Reader Smart Card Reader (Optional)
Fingerprint Scanner Fingerprint scanner (Optional)

Camera
Front Camera 2MP front camera
Rear Camera 8MP rear fotoaparát s autofocus a LED svetlom (Optional)

Mechanical
Dimension 340 x 230 x 38 mm
Weight 2.5kg
Cooling System Fanless thermal design

IO Ports
USB Port 1 x USB 2.0 (Type A), 2 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)
Serial Port 1 x RS232 (DB9)
SD Card Slot 1 x Micro SDXC Slot
SIM karta Slot 1 x Nano SIM karta slot
Video 1 x HDMI 4K Output (Optional)
Audio 1 x Audio Jack (mic in/line out)
LAN 1 x RJ45-10/100/1000 GigaLAN port
Indicator 4x LED Indicator pre Power, Battery, HDD, RF status
Docking Connector 1 x docking connector

Environment
Operating Humidity 10% až 90% RH, non-condensing
Operating Temperature -20 až 60 °C (AC mode), -10 až 50 °C (Battery mode)
Storage Temperature -30°C až 70°C
Shock MIL-STD-810H Method 516.8 Procedure I
Vibration MIL-STD-810H Method 514.8 Procedure I
IP rating certifikovaný IP65, dustproof and waterproof
Drop MIL-STD-810H Method 516.8, 3 ft

Certification
Certification CE, FCC

Security Function
SOTI MobiControl SOTI MobiControl Compliance
Kensington Lock Kensington Lock Support

Control
Button 1 x Power, 2 x volume key,
2 x Programmable Function Keys
QWERTY klávesnica s RGB backlight

Power
Battery Hotswappable 2 x 11.55V, typ. 3220 mAh LiIon Battery (3S1P)
Battery Operating Time Standard Battery: 11 hours
Power Rating 19V DC
Adapter 100-240V, 50-60Hz (19V DC)

Accessory
Accessory
Adapter and Power Cord
Štandard Battery

Optional Accessory
Spare Battery (Optional)
Battery Charger (Optional)
Vehicle Charger (Optional)
