Winmate/M116TG/11,6"/1920x1080/4GB/128GB/Win10IoT/ M116TG

Winmate/M116TG/11,6"/1920x1080/4GB/128GB/Win10IoT/ M116TG

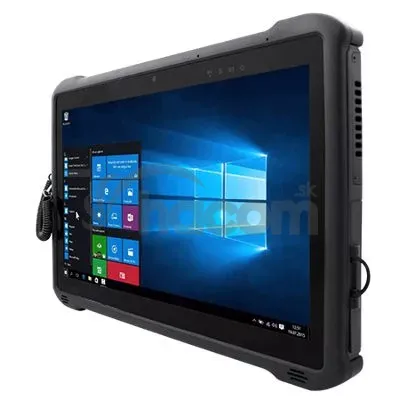

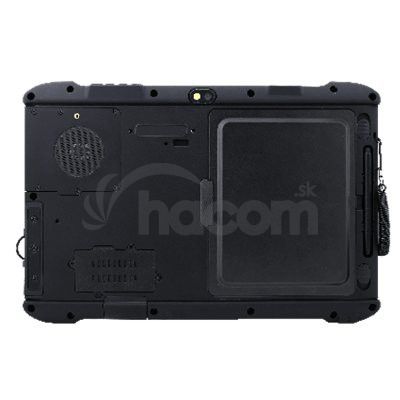

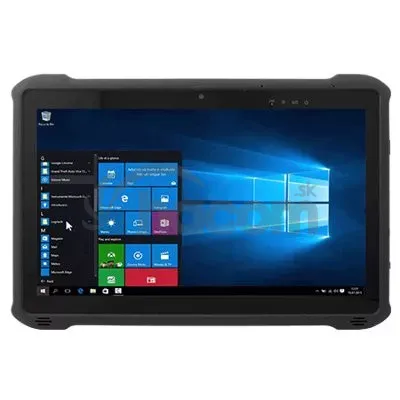

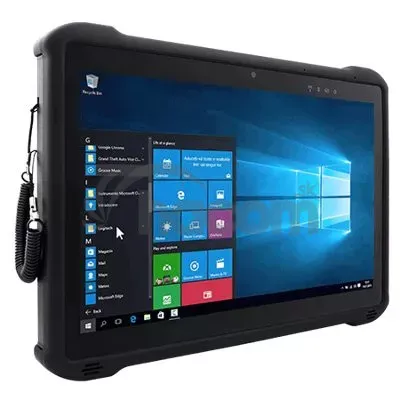

11.6" Windows Rugged Tablet s Intel® Core™ i5-1135G7


Vlastnosti:
11.6” 1920 x 1080, 850 nits IPS LED Panel s direct optical bonding
Intel® Core™ i51135G7 Tiger Lake processor
IP65 waterproof a dustproof, MILSTD810H shock, vibration and drop resistance
Sunlight readable with antiglare solution
Hotswappable battery design
USB TypeC port support power delivery 20V In

Display
Bonding Optical Bonding pre Sunlight Viewability
Resolution 1920x1080
Size 11.6 inches
Contrast Ratio 1000:1
Panel Brightness 850.0 nits
View Angles 85,85,85,85
Type Projected Capacitive Multi Touch
Viewability AntiGlare touch treatment
Touch Mode Support Hand/Rain, Stylus, Glove Mode

System Specification
Procesor
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)

Memory 4GB DDR4 SDRAM
8GB DDR4 SDRAM (Optional)
16GB DDR4 SDRAM (Optional)
32GB DDR4 SDRAM (Optional)

Storage 128GB SSD
Additional storage available with micro SDXC card slot
256GB SSD (Optional)
512GB SSD (Optional)
1TB SSD (Optional)
2TB SSD (Optional)

Security Trusted Platform Module (TPM) 2.0
Kensington Lock

Operating System Windows 10 IoT Enterprise LTSC (64 bit)
Windows 11 IoT Enterprise SAC (64 bit) (Optional)

WLAN Support
BT Support
WWAN 4G LTE (Optional)
GNSS GPS, GLONASS
RFID HF RFID reader 13.56 MHz (Optional)
Sensors Light sensor/ Gsensor/ Gyro

Camera
Front Camera 2MP Front Camera
Rear Camera 8MP Rear Camera with autofocus and LED svetlo

Mechanical
Dimension 300.67 x 201.97 x 22.5 mm
Weight 1.5 kg (3.3 lbs) with štandard battery
Cooling System Fan design

IO Ports
USB Port 1 x USB 3.0 (Type A), 1 x USB 3.0 (TypeCsupport Power Delivery 20 V In)
SD Card Slot 1 x Micro SDXC slot
SIM karta Slot 1 x Micro SIM karta slot
Video 1 x Micro HDMI (Optional)
Audio 1 x Audio combo 3.5 mm audio combo jack
Dual Digital Mic With Noise Cancellation
LAN 1 x RJ4510/100/1000 GigaLAN port (Optional)
Indicator 4x LED Indicator pre Power, Battery, HDD, RF status
Docking Connector 1 x 19pin docking connector

Environment
Operating Humidity 10% až 90% RH, noncondensing
Operating Temperature -20 až 60 °C (AC mode), -10 až 50 °C (Battery mode)
Storage Temperature -30°C až 70°C (-22°F až 158°F)
Shock MILSTD810H Method 516.8 Procedure I
Vibration MILSTD810HMethod 514.8 Procedure I
IP rating IP65
Drop MILSTD810H Method 516.8, 4 ft

Certification
Certification CE, FCC
Security Function
Kensington Lock Kensington Lock Support

Control
Button 1 x Power, 3 x function keys

Power
Battery Hotswappable 10.8V, typ. 4700 mAh LiPolymer Battery (3S2P)
Battery Operating Time Standard. Battery: 8 hours
Power Rating 19V DC
Adapter 100-240V,50-60Hz/ 19V DC

Accessory
Accessory
Adapter and Power Cord
Štandard Battery

Optional Accessory
Desk Dock (Optional)
Vehicle Dock (Optional)
Vehicle Cradle (Optional)
Vehicle Charger (Optional)
High Capacity Battery (Optional)
Hand Strap (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)

Barcode Scanner
Barcode Scanner 1D/2D barcode reader (Optional)
