Winmate/M133TG/13,3"/1920x1080/4GB/128GB/Win10IoT/ M133TG

Winmate/M133TG/13,3"/1920x1080/4GB/128GB/Win10IoT/ M133TG

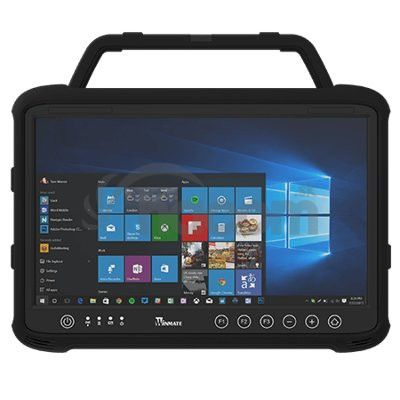

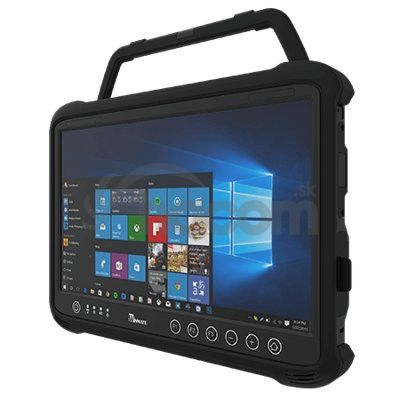

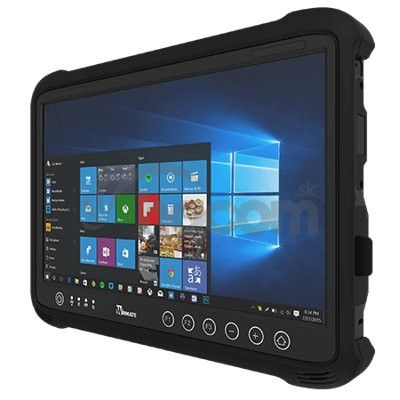

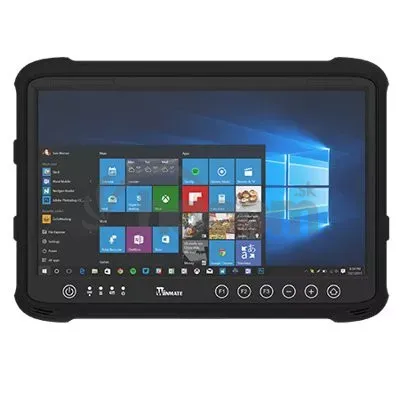

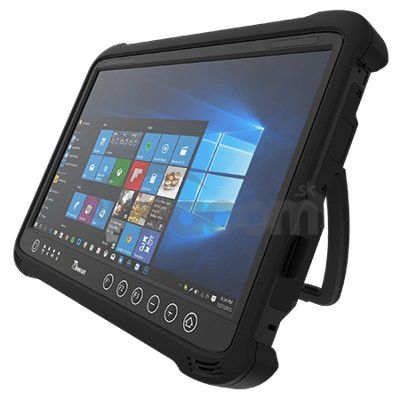

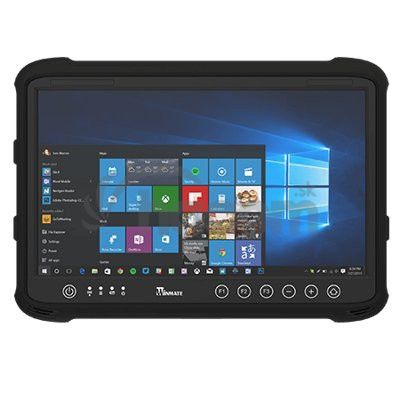

Intel® Core™ i5-1135G7 Industrial Ultra Rugged Tablet

Vlastnosti:
13.3” 1920 x 1080 IPS wide viewing angle LED panel
Intel® Core™ i5-1135G7 Tiger Lake processor

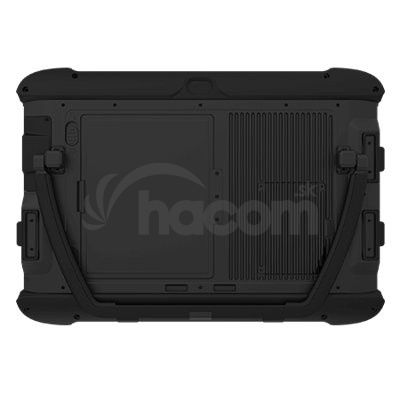

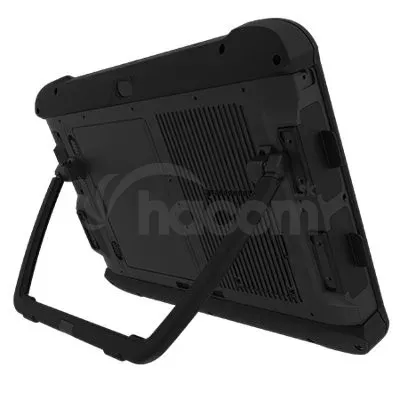

Removeable kickstand usable as carrying handle
Magnesium alloy housing with allaround elastomeric rubber
IP65 waterproof and dustproof
Fanless cooling system

Display
Resolution 1920x1080
Size 13.3 inches
Contrast Ratio 1000:1
Panel Brightness 500.0 nits
View Angles 89,89,89,89
Type Projected Capacitive Multi Touch
Bonding Optical Bonding pre Sunlight Viewability

System Specification
Procesor Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory 4GB DDR4 SDRAM
8GB DDR4 SDRAM (Optional)
16GB DDR4 SDRAM (Optional)
32GB DDR4 SDRAM (Optional)

Storage 128GB SSD
Additional storage available with micro SDXC card slot
256GB SSD (Optional)
512GB SSD (Optional)
1TB SSD (Optional)
2TB SSD (Optional)

Ethernet controller 1 x RJ4510/100/1000 Mbps LAN
Security Trusted Platform Module (TPM) 2.0 Kensington Lock

Operating System Windows 10 IoT Enterprise LTSC (64 bit)
Windows 11 IoT Enterprise SAC (64 bit) (Optional)
WLAN Support BT Support
WWAN 4G LTE (Optional)
GNSS GPS/GLONASS
RFID HF RFID reader 13.56 MHz (Optional)

Camera
Rear Camera 8MP Rear Camera with autofocus and LED svetlo

Mechanical
Dimension 338.2 x 239.8 x 33.8 mm
Weight 2.4 Kg (Without Kickstand), 2.5 Kg (With Kickstand)
Cooling System Fanless thermal design

IO Ports
USB Port 5 x USB 3.0 Type A, 1 x USB 3.0 Type C
Serial Port 1 x RS232 (DB9)
SD Card Slot 1 x SDXC Slot
Audio 2 x 1 watt reproduktor
LAN 1 x RJ4510/100/1000 Mbps LAN
Indicator 4x LED Indicator pre Power, Battery, SSD, RF status
Docking Connector 1 x Docking connector

Environment
Operating Humidity 30% až 80% RH, noncondensing
Operating Temperature -10°C až 50°C (-14°F až 122°F)
Storage Temperature -20°C až 60°C (-4°F až 140°F)
Shock MILSTD810G Method 516.6 Procedure I
Vibration MILSTD810G Method 514.6 Procedure I
IP rating IP65
Drop MILSTD810G Method 516.6, 4 ft

Certification
Certification CE, FCC
Kensington Lock Kensington Lock Support

Control
Button 1 x Power, 1 x menu, 2 x volume key
3 x Programmable Function Keys

Power
Battery 15.4V, typ. 5900 mAh LiPolymer Battery (4S1P) HotSwap (Optional)
Battery Operating Time More than 10 hours (BAPCo Tabl etMark v3)
Power Rating 19V DC
Adapter 100-240V,50-60Hz/ 19V DC

Accessory
Adapter and Power Cord
Štandard Battery
Stand with Integrated Handle

Optional Accessory
Vehicle Charger (Optional)
Battery Charger (Optional)
Desk Docking (Optional)

Barcode reader
1D/2D barcode reader (Optional)
