Winmate/M140TG/14"/1920x1080/4GB/128GB/Win10IoT/Bl M140TG

Winmate/M140TG/14"/1920x1080/4GB/128GB/Win10IoT/Bl M140TG

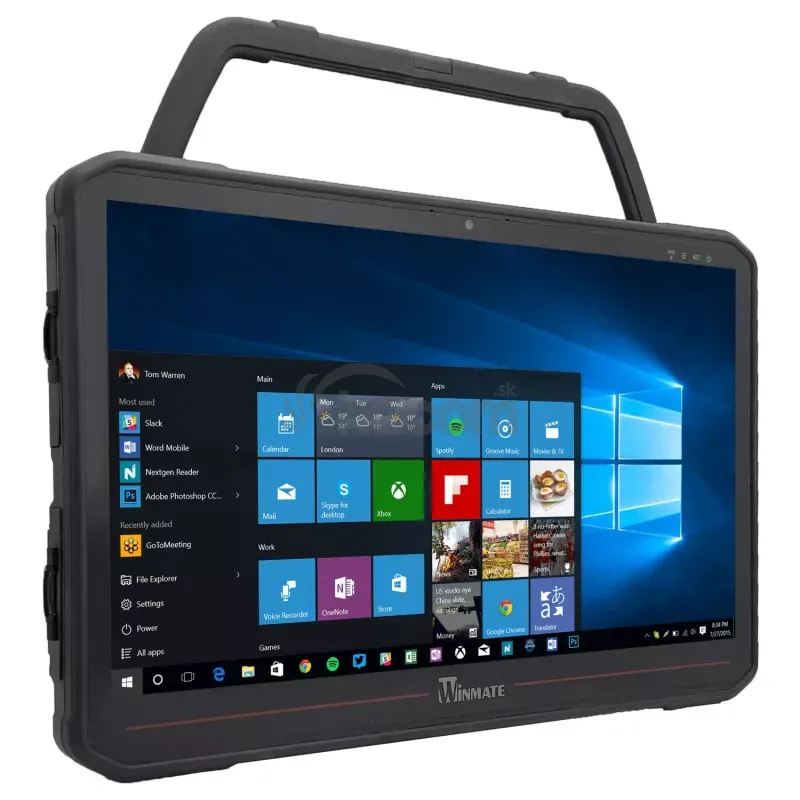

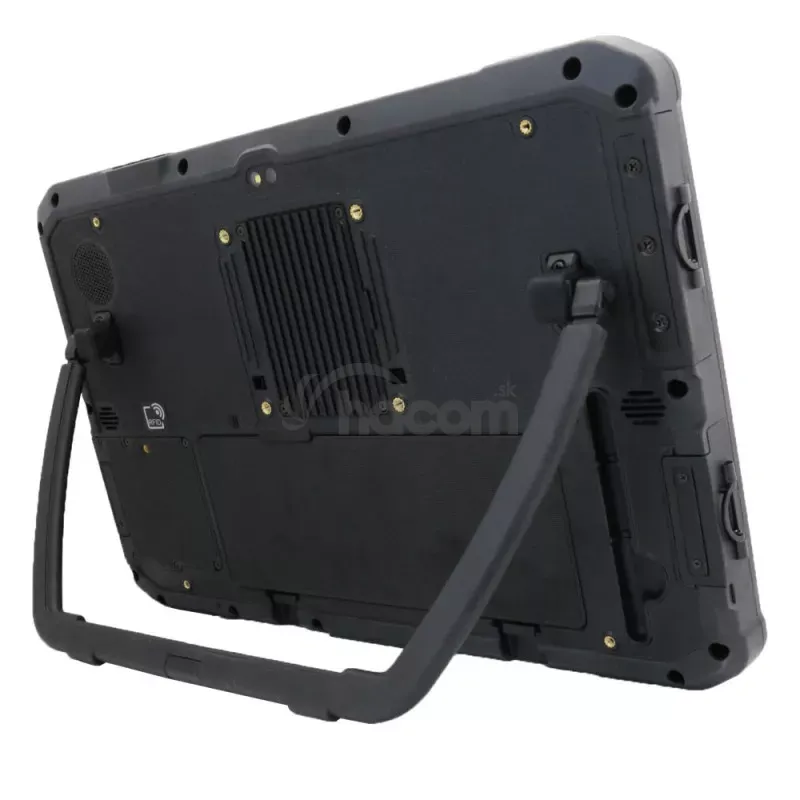

14" Intel® Core™ i5-1135G7 Windows Rugged Tablet

Vlastnosti:
11th Gen. Intel® Processor Family – Tiger Lake Processor
14-inch tabliet, 1920 x 1080 wide viewing angle LED Panel
Optical bonding and Antiglare technology for sunlight readability
IP65 voda a dust proof with MIL-STD-810H rugged housing
Hot-swappable battery for whole day work
Optional integrated Smart Card Reader

Display
Bonding Optical Bonding pre Sunlight Viewability
Resolution 1920x1080
Size 14.0 inches
Contrast Ratio 800:1
Panel Brightness 700.0 nits
View Angles 85,85,85,85
Type Projected Capacitive Multi Touch

System Specification
Procesor
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory 4GB DDR4 SDRAM
8GB DDR4 SDRAM (Optional)
16GB DDR4 SDRAM (Optional)
32GB DDR4 SDRAM (Optional)

Storage 128GB SSD
Additional storage available with micro SDXC card slot
256GB SSD (Optional)
512GB SSD (Optional)
1TB SSD (Optional)
2TB SSD (Optional)

Security Trusted Platform Module (TPM) 2.0
Kensington Lock

Operating System Windows 10 IoT Enterprise LTSC (64 bit)
Windows 11 IoT Enterprise SAC (64 bit) (Optional)

WLAN Support
BT Support
WWAN 4G LTE (Optional), 5G (Optional)
GNSS GPS, GLONASS (Optional)
RFID HF RFID reader 13.56 MHz (Optional)
Sensors Light sensor/ G-sensor / Gyro
Smart Card Reader Comply with ISO7816-1.2.3 T=1 a T=O protokol (Optional)

Camera
Front Camera 2MP Front Camera
Rear Camera 8MP Rear Camera with auto-focus a LED svetlo

Mechanical
Dimension 341.91 x 224.67 x 25.4 mm
Weight 1.7 kg
Cooling System Fan design


IO Ports
USB Port 2 x USB 3.0 (Type A), 1 x USB 3.0 (Type-Csupport Power Delivery 20V In)
SD Card Slot 1 x Micro SDXC slot
SIM karta Slot 1 x Nano SIM karta slot
Video 1 x Micro HDMI (Optional)
Audio 1 x Audio combo 3.5 mm audio combo jack
Dual Digital Mic With Noise Cancellation Dual Speaker
LAN 1 x RJ45-10/100/1000 GigaLAN port
Indicator 4x LED Indicator pre Power, Battery, HDD, RF status
Docking Connector 1 x 19-pin docking connector

Environment
Operating Humidity 10% až 90% RH, non-condensing
OperatingTemperature -20°C až 60°C
Storage Temperature -30°C až 70°C (-22°F až 158°F)
Shock MIL-STD-810H Method 516.8 Procedure I
Vibration MIL-STD-810H Method 514.8 Procedure I
IP rating IP65
Drop MIL-STD-810H Method 516.8, 4 ft


Certification
Certification CE, FCC
Security Function Kensington Lock Kensington Lock Support

Control
Button 1 x Power, 3 x function keys

Power
Battery Internal Battery: 10.8V typ. 2400 mAh Li-Ion Battery
Hot-swappable 11.4V, typ. 3500 mAh Li-Ion Rechargeable Battery (3S1P)
Power Rating 19V DC
Adapter 100-240V, 50-60Hz / 19V DC

Accessory
Adapter and Power Cord
Štandard Battery
Capacitive Stylus

Optional Accessory
Kickstand (Optional)
Vehicle Charger (Optional)
Battery Charger (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)
