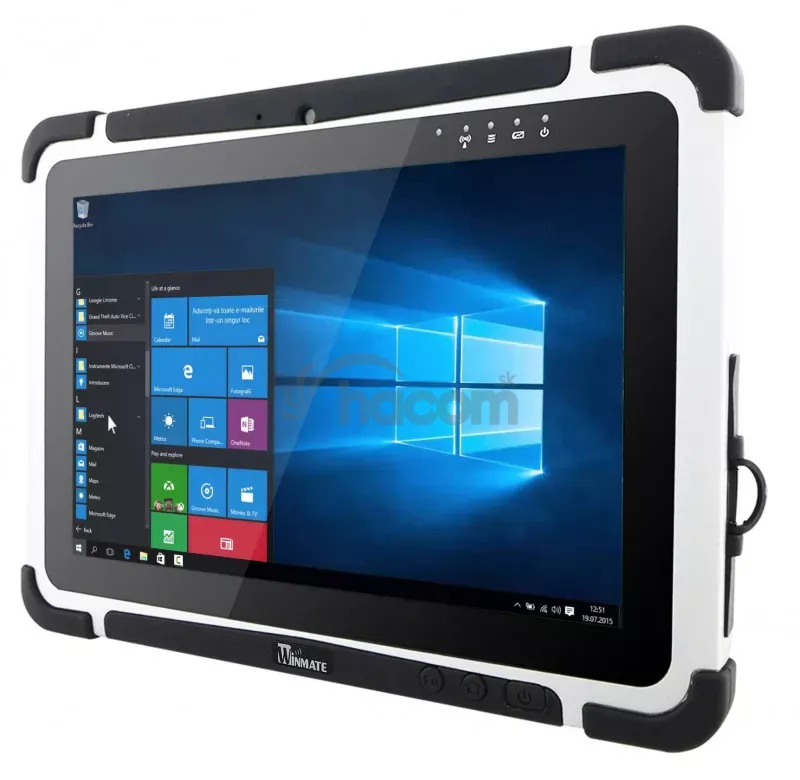

- Winmau M101P-ME - 10.1 "FullHD medicínsky tabliet, Intel Pentium N4200, 4GB / 128GB, IP65, Windows 10 M101P-ME
Winmau M101P-ME - 10.1 "FullHD medicínsky tabliet, Intel Pentium N4200, 4GB / 128GB, IP65, Windows 10 M101P-ME
Špecifikácia: 10.1 ", FullHD 1920x1200, Projekčne kapacitné touchscreen, Intel® Apollo Lake Pentium N4200 Processor, 4GB RAM, 128GB SSD, Full IP65, 0 ~ 35 ° C, 12-19V DC, Windows 10 IoT Enterprise• 10.1 "1920 x 1200 IPS LED Panel with direct optical bonding
• Intel® Apollo Lake Pentium N4200 processor
• Housing enhanced with ANTIMICROBIAL properties
• Long battery life
• USB 3.0 (Type C) connector
• Optional 1D / 2D barcode scanner to scan Medications or wrist bands
• Lightweight, Rugged, IP65 waterproof and dustproof
• IEC 60601-1, 60601-1-2 Healthcarely Certified
M101P-ME is a healthcare Windows-based tablet computer with a housing enhanced with
ANTIMICROBIAL properties, Weighting at just 1200 grams (2.65 pounds). This mobile and portable device
is flexible enough to function as a standalone device and competent enough to be used for all Sorts of
data collection, patient care, information management and wireless communication in Healthcare
environments.
With Rugged features, a crystal clear 1920 x 1200 resolution display, projected Capacitive touch
screen, barcode scanner and superior processing power coming from Intel 's Apollo Lake processor,
this tabliet can be used in hospital halls, waiting rooms or nurse stations for communicating and
documenting patient information, allowing paramedics and nurses to instantly access and keep
patient records.
Display Specifications
Size 10.1-inch IPS display with LED Backlight
Resolution 1920 x 1200 WUXGA
Brightness 800 niť
With direct optical bonding for sunlight Readable
Touch Multi-touch projected Capacitive
Contrast Ratio 800: 1
Viewing Angle 85/85/85/85
Technology • Ant- reflective and anti-glare technology (Optional)
• Ambient light sensor, e-compass, gyro, acceleration
sensors
• Automatic screen rotation
• Intel HD Graphics (built-in CPU) video controller
System Specification
Processor Intel Pentium N4200 Processor
1.10 GHz, up to 2.50 GHz with turbo boost technology
System Memory 4GB SODIMM DDR3L-1600 (up to 8GB) 1
Storage 64GB solid state drive (SSD)
Optional up to 512GB, up to 128GB additional storage
with optional microSDXC card slot
Operating System Windows 10 IoT Enterprise (64 bit)
wireless Communication
WLAN 802.11 a / b / g / n / ac
Bluetooth Bluetooth 4.2
GNSS GPS, GLONASS, Beida
Optional 4G / LTE
interface

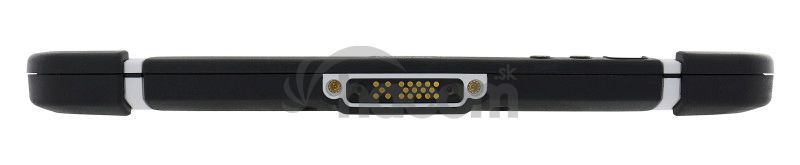

Docking Connector 1 x 19-pin docking connector
HDMI 1 x micro HDMI
USB 1 x USB3.0 (Type A), 1 x USB3.0 (Type C)
Power Input 1 x Power Jack
Micro SD 1 x Micro SD Slot
Audio Connector 1 x Audio Combo connector (Mic in or Line Out)
Expansion Port 1 x Expansion Connector for USB 2.0 /
Full RS232 (Optional)
Keyboard and Input
Touch • 10-point multi touch,
support Rain, Glove, Stylus
Button • On-screen QWERTY keyboard
Button 1 x power, 1 x Home, 2 x volume key,
2 x function key (Programmable
function key configured by Hottab Utility)
LED Indicators Power, Battery, HDD, RF
audio
Microphone Built-in dual Digital Mic with Noise Cancellation
Speaker 2 x 1 watt speaker
Cameras
Web Camera 2MP webcam
Rear Camera 8MP rear camera with autofocus and LED light
data Capture
Barcode Optional 1D / 2D Barcode Reader
HF RFID Optional HF RFID reader 13.56 MHz
Security Function
Security • Password security for user and hard disk lock
• Trusted Platform Module (TPM) 2.0
• Kensington Lock
Mobile Device Mgmt. SOTI Mobicontrol compatible
Certificate
• CE, FCC, IC
• IEC 60601-1, IEC 60601-1-2,
EN 60601-1, ANSI / AAMI ES 60601-1
Mechanical and Environment
Dimension (W x L x H) 271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches) 4
Weight 1.2 kg (2.7 lbs) with štandard battery,
1.4 kg (3.1 lbs) with optional high capacity battery
Operating Temperature 0 ° C to 35 ° C
Storage Temperature -30 ° C to 70 ° C (-22 ° F to 158 ° F)
Humidity 10% to 90% RH, non-condensing
IP Proof IP65 certified, dustproof and waterproof
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
Drop MIL-STD-810G Method 516.6, 4 ft to concrete
Power Management
Power Input 12-19V DC
Battery 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional)
Battery Operating Time Std. Battery: 8 hours
High Capacity Battery: 16 hours
Adapter 100-240V, 50-60Hz / 19V DC
Product Specification
Operating system:
Windows 10 IoT Enterprise
Príslušenstvo (súčasť balenia)
• Adapter and Power Cord
• Capacitive Stylus
• Standard Battery
Voliteľné príslušenstvo (možno dokúpiť samostatne)
• Desk Dock
• Vehicle Dock (without VGA output)
• Battery Charger
• Smart Card Reader
• High Capacity Battery
• Hand Strap
• UHF RFID Reader
• VESA Mount Kit
• Shoulder Strap
• Carry Bag
• Micro HDMI Cable
• Vehicle Charger
• USB-C to Ethernet Adapter
• USB-C to RS232 Adapter
• USB-C to USB-A Hub
Optional Healthcarely Certified Accessories

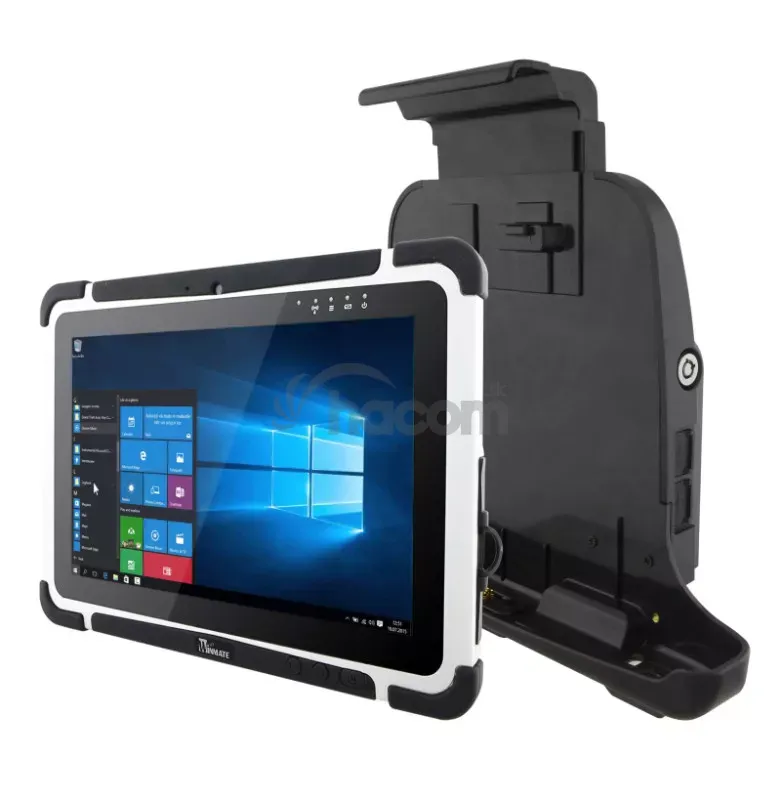

Healthcare Grade Tablet Dock 98DT00A00012
* Obrázky sú len ilustračné!
* Položky označené ako "OPTIONAL" nie sú súčasťou tejto konfigurácie a je nutné si ich prípadne vopred u predajcu do konfigurácie pridať.
* Ak nie je uvedené inak, je dodávané s operačným systémom Windows 10 IoT v multijazyčné lokalizácii (vrátane češtiny).
Parametre
Doplňujúce informácie
| Farba tabletu | biela |
|---|
