Winmau M101S - 10.1 "FullHD odolný tablet, Intel Core i5-7200U, 4GB / 64GB, IP65, Windows 10 IoT M101S

Display Specifications
Size 10.1-inch IPS display with LED Backlight
Resolution 1920 x 1200 WUXGA
Brightness 800 niť
With direct optical bonding for sunlight Readable
Touch Multi-touch projected Capacitive
Contrast Ratio 800: 1
Viewing Angle 85/85/85/85
Technology • Ant- reflective and anti-glare technology (Optional)
• Ambient light sensor, e-compass, gyro, acceleration
sensors
• Automatic screen rotation
• Intel HD Graphics 520 (built-in CPU) video controller

System Specification
Processor Intel Core i5-7200U Kaby lake 2.5GHz (turbo to 3.1GHz)
System Memory 4GB SODIMM DDR3L-1600 (up to 8GB)
Storage 64GB solid state drive (SSD)
Optional up to 512GB, up to 128GB additional storage
with optional microSDXC card slot
Operating System Windows 10 IoT Enterprise (64 bit)

wireless Communication
WLAN 802.11 a / b / g / n / ac
Bluetooth Bluetooth 4.2
GNSS GPS, GLONASS, Beida
WWAN • Optional 4G (LTE, HSPA +, GSM / GPRS / EDGE, EV-DO
Rev A, 1xRTT)
• Optional 3G (HSPA +, GSM / GPRS / EDGE)

interface
Docking Connector 1 x 19-pin docking connector
HDMI 1 x Optional micro HDMI
USB 1 x USB3.0 (Type A), 1 x USB3.0 (Type C)
Power Input 1 x Power Jack
Micro SD 1 x Micro SD Slot
Audio Connector 1 x Audio Combo connector (Mic in or Line Out)

Keyboard and Input
Touch • 10-point multi touch,
support Rain, Glove, Stylus
Button • On-screen QWERTY keyboard
Button 1 x power, 1 x Home, 2 x volume key,
2 x function key (Programmable
function key configured by Hottab Utility)
LED Indicators Power, Battery, HDD, RF

audio
Microphone Built-in dual Digital Mic with Noise Cancellation
Speaker 2 x 1 watt speaker

Cameras
Web Camera 2MP webcam
Rear Camera 8MP rear camera with autofocus and LED light

data Capture
Barcode Optional 1D / 2D Barcode Reader
HF RFID Optional HF RFID reader 13.56 MHz

Security Function
Security • Password security for user and hard disk lock
• Trusted Platform Module (TPM) 2.0
Mobile Device Mgmt. SOTI Mobicontrol compatible

Mechanical and Environment
Dimension (W x L x H) 271.8 x 197.2 x 21 mm (10.7 x 7.76 x 0.83 inches)
Weight 1.25 kg (2.7 lbs) with štandard battery,
1.45 kg (3.2 lbs) with optional high capacity battery
Operating Temperature -20 ° C to 60 ° C (AC mode), -10 ° C to 50 ° C (Battery mode)
Storage Temperature -30 ° C to 70 ° C (-22 ° F to 158 ° F)
Humidity 10% to 90% RH, non-condensing
IP Proof IP65 certified, dustproof and waterproof
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
Drop MIL-STD-810G Method 516.6, 4 ft to concrete

Power Management
Power Input 12-19V DC
Battery 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional)
Battery Operating Time Std. Battery: 8 hours
High Capacity Battery: 16 hours
Adapter 100-240V, 50-60Hz / 19V DC

Product Specification
Operating system:
Windows 10 IoT Enterprise

Príslušenstvo (súčasť balenia)
• Adapter and Power Cord
• Capacitive Stylus
• Standard Battery

Voliteľné príslušenstvo (možno dokúpiť samostatne)

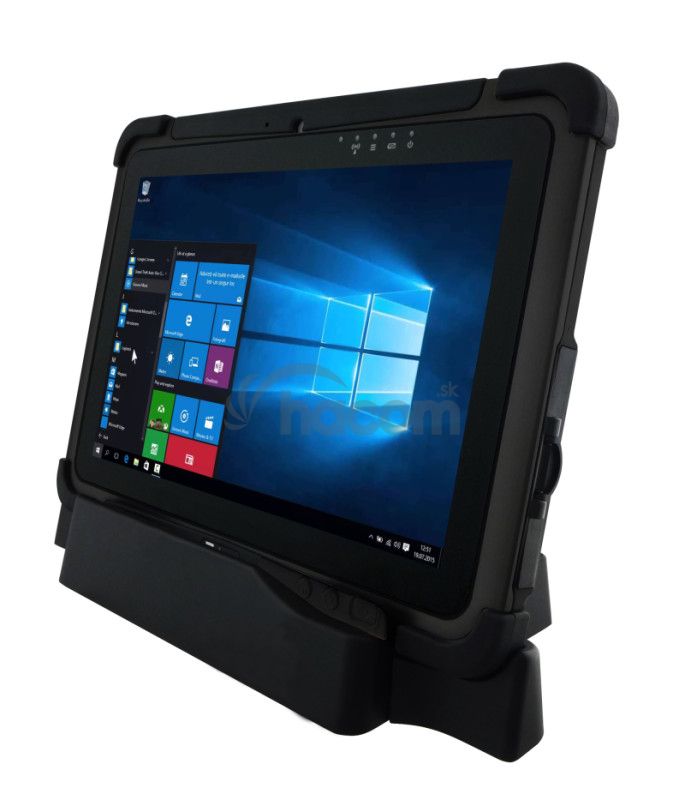

• Desk Dock
• Vehicle Dock (without VGA output)
• Battery Charger
• Active Pen
• High Capacity Battery
• Hand Strap
• Shoulder Strap
• Carry Bag
• Micro HDMI Cable
• Vehicle Charger
