ZyXEL 8xGb switch (metal housing) GS-108Bv3 GS-108BV3-EU0101F

ZyXEL 8xGb switch (metal housing) GS-108Bv3 GS-108BV3-EU0101F

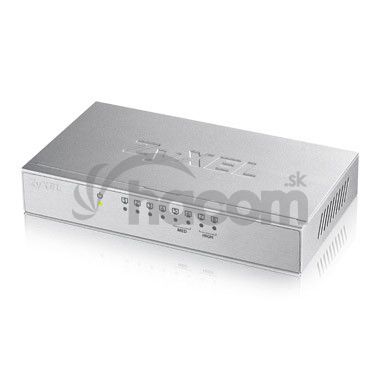

8-Port Desktop Gigabit Ethernet Switch

popis

Compact, Sturdy desktop switch with alternative wall-mount installation
Connect up to 8 network devices at Gigabit wire speed
QoS ports for optimized, smooth VoIP and data transfer of high- and medium-priority applications
Green switch for energy saving
Loop detection prevents network from Crashing

technical specifications
Standard
* IEEE 802.3 10BASE-T Ethernet
* IEEE 802.3u 100BASE-TX Fast Ethernet
* IEEE 802.3ab 1000BASE-T Gigabit Ethernet
* IEEE 802.3 Nway auto-negotiation
* IEEE 802.3x full duplex operation and flow control
* IEEE 802.3az Energy Efficient Ethernet

performance
* Data transfer rate (half duplex / full duplex):
- Ethernet: 10/20 Mbps
- Fast Ethernet: 100/200 Mbps
- Gigabit Ethernet: 1000/2000 Mbps
* MAC address table: 8 K
* Memory buffer: 128 KB
* Switching textílie (non-blocking): 16 Gbps

Features
* Auto-MDI / MDIX in all ports
* Transmission method: Store-and-forward architecture
* Loop detection support
* Port-based QoS support
* Jumbo frame support up to 9 KB

interface

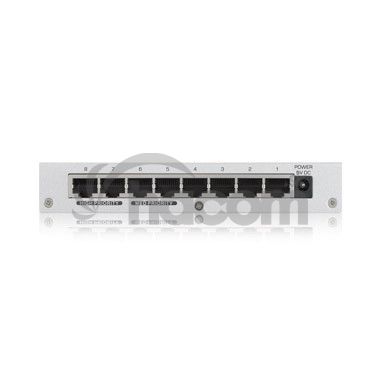

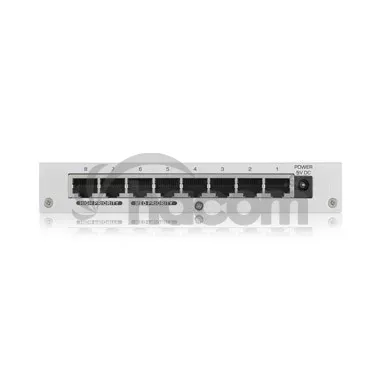

* Eight RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI / MDIX support

QoS Ports
* Two high-priority QoS ports and two medium-priority QoS ports

LED Indicator
* PWR: Power
* Per port: Link / Activity
- Amber: 10/100 Mbps
- Green: 1000 Mbps

Power Supply
* Input: 100-240 V AC
* Output: 5 V DC, 1 A

power consumption
* 3.0 watt max.

Physical Specifications
* Item dimensions (WxDxH): 155 x 85 x 26 mm
* Item weight: 325 g
* Packing dimensions (WxDxH): 161 x 90 x 95 mm
* Packing weight: 493 g

Operating Environment
* Temperature: 0 ° C to 50 ° C
* Humidity: 10% to 90% (Non-condensing)

storage Environment
* Temperature: -40 ° C to 70 ° C
* Humidity: 10% to 95% (Non-condensing)

Certification
* CE, FCC Class B, BSMI

Package Contents
* Gigabit switch
* Power adapter
* Quick start guide
