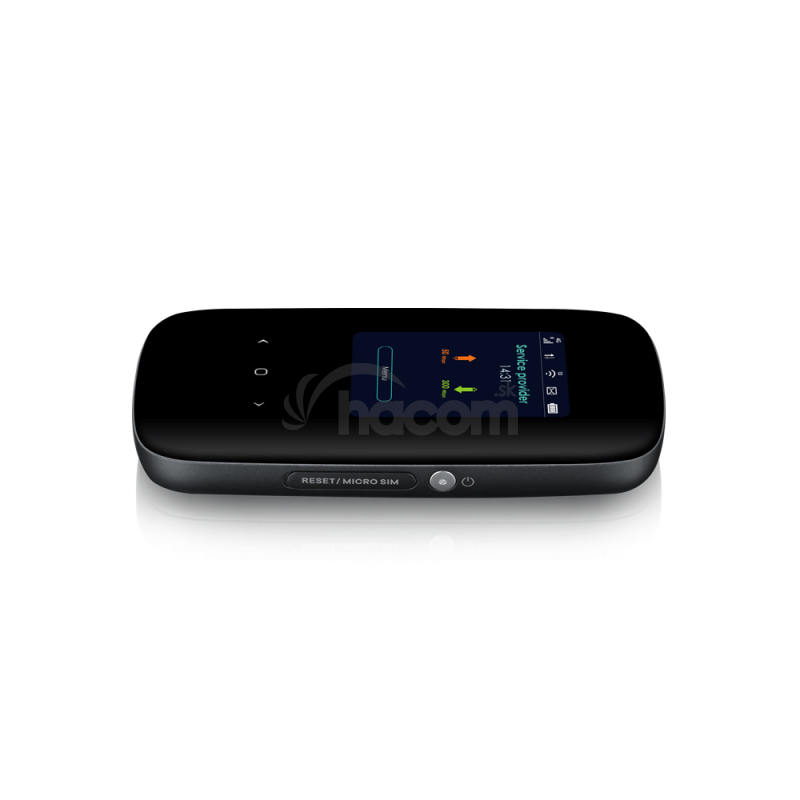

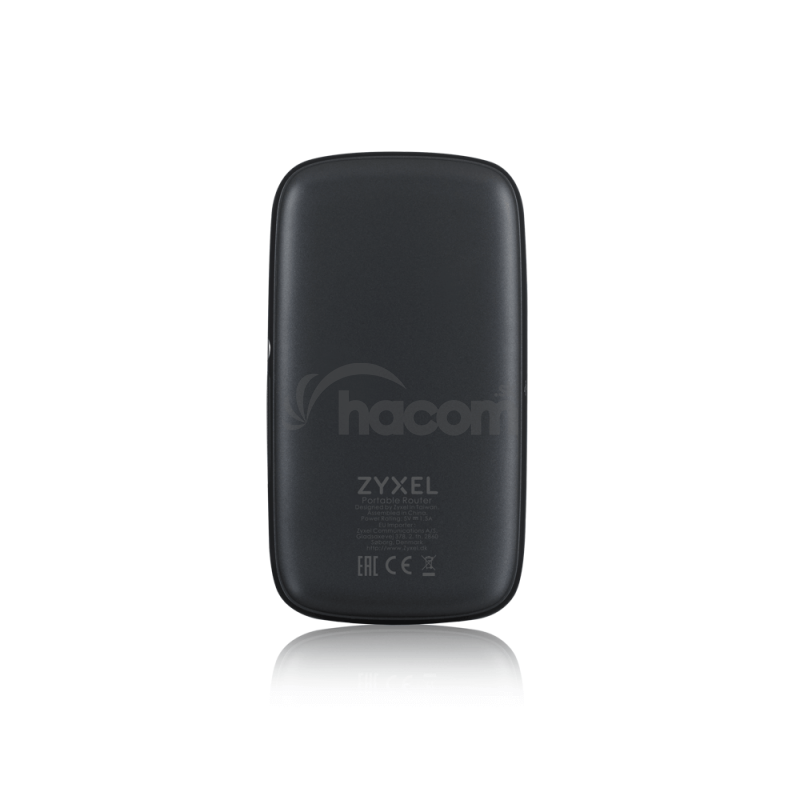

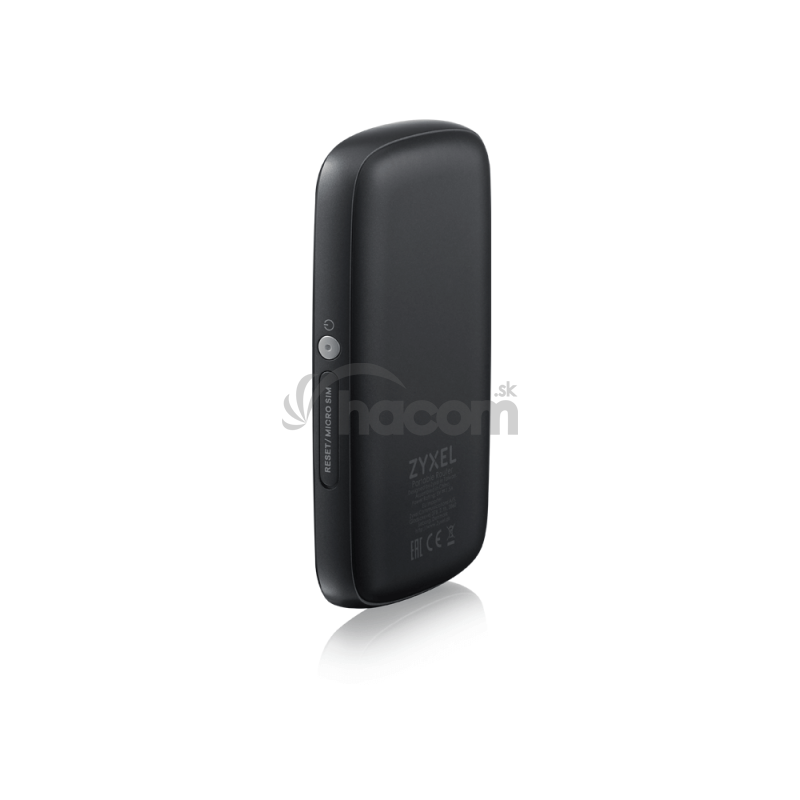

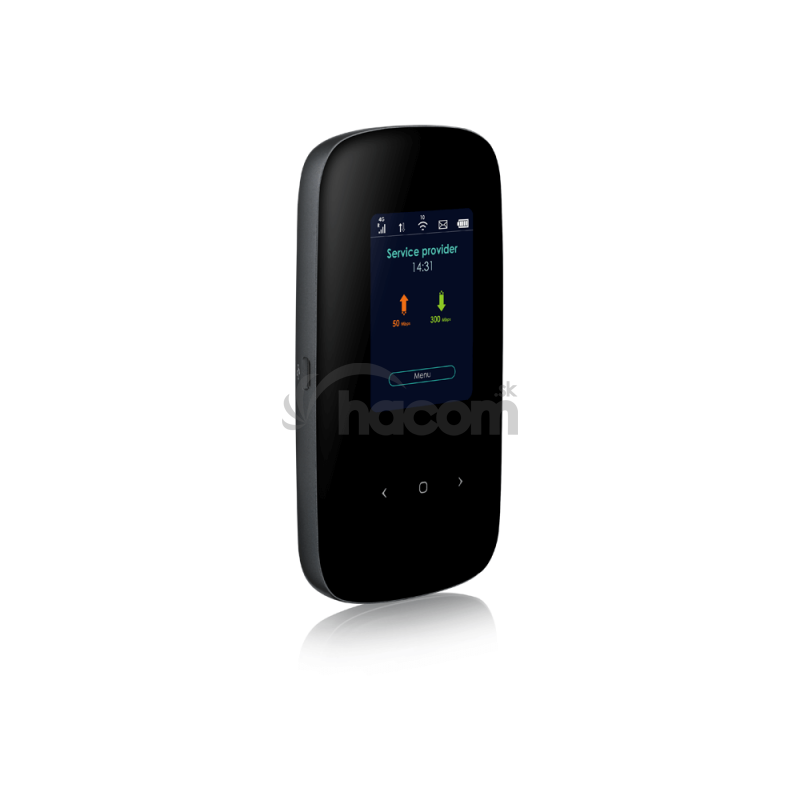

ZYXEL LTE portable AC DB router LTE2566-M634 LTE2566-M634-EUZNV1F

ZYXEL LTE portable AC DB router LTE2566-M634 LTE2566-M634-EUZNV1F

System Specifications
WiFi AP Features

802.11 ac / n / a / g / b, 2.4 GHz & 5 GHz dual-band
Auto Channel Select (ACS)
WiFi Enabled Device #: up to 32
hidden SSID
Security modes: Open, WPA2-PSK, WPA-PSK / WPA2-PSK
AP power saving mode
Access control: STA blacklist / white list
MAC? Ltering
Dual-SSID support
WPS: Pin and PBC, WPS2.0
System Features

Web UI / multiple language supported
SMS / Quota / APN / PIN management
Network selection
Dáta usage / statistic
DHCP server
Dynamic DNS
IP / URL filtering
NAT Port forwarding / trigger / ALG / DMZ
IP firewall
proxy DNS
VPN pass through
FOTA firmware upgrade
TR-069 remote management
USSD management
USB Tethering System Supported

Win XP, Win Vista, Win 7, Win 8, Win 10
MAC OS X10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13
Ubuntu 12.04 LTS, 14.04 LTS
Browser Client

internet Explorer
Edge
Firefox
chrome
Safari

LTE Air Interface

Standard compliant: 3GPP release 10, category 6
Supported frequency: LTE B1 / B3 / B7 / B8 / B20 / B28a / B38 / B40 / B41
Carrier aggregation support:
B1 + B1 / B3 / B / B8 / B20 / B28a / 38/40/41
B3 + B3 / B7 / B8 / B20 / 28a / B38 / B40 / B41
B7 + B7 / B8 / B20 / B28a
B20 + B38 / 40
B38 + B38, B40 + B40, B41 + B41
FDD LTE peak dáta rate:
300 Mbps DL within 40 MHz bandwidth (CA)
50 Mbps UL within 20 MHz bandwidth
TDD LTE peak dáta rate:
224 Mbps DL within 40MHz bandwidth (CA)
10 Mbps UL within 20 MHz bandwidth
UMTS Air Interface

Standard compliant: DC-HSDPA / HSPA + compliant
Supported frequency: HSPA + / UMTS 2100/900 MHz (band 1/8)
DC-HSPA + downlink DL up to 42 Mbps
HSUPA UL up to 5.76 Mbps
Hardware Interface

One 3FF / Micro SIM card slot
One USB port for power supply or USB with RNDIS
Reset button
power button
Left, Home / OK, Right (touch sensing keys)
DC input (5V / 1.5A, Micro USB)
2.4-inch TFT display
Service provider name
3G / 4G network status
roaming status
Signal strength
Battery status
WiFi status
Battery

3000 mAh Lithium-ion polymér, un-removable battery
Up to 10 hours operating time *
Up to 300 hours standby time *

Item dimensions (WxDxH): 118.2 x 65 x 15.7 mm (4.65 "x 2.56" x 0.618 ")
Item weight: 130 g (0.29 lb.)
Packing dimensions (WxDxH): 150 x 80 x 50 mm (5.90 "x 3.15" x 1.97 ")
Packing weight: 270g (0.59lb.)

Operating Environment

Temperature: 0 ° C to 40 ° C (32 ° F to 104 ° F)
Humidity: 5% to 95% (Non-condensing)
storage Environment

Temperature: -20 ° C to 60 ° C (-4 ° F to 140 ° F)
Humidity: 5% to 95% (Non-condensing)
